PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	910 × 510 × 760 mm
Overall cabinet dimensions	910 x 510 x 760 mm
Individual upper drawer interior dimensions	420 x 400 x 130 mm
Lower glass door cabinet interior height	410 mm
Thickness of solid wood cabinet top surface	25 mm
Carcass side and vertical panel thickness	18 mm
Glass door panel thickness	5 mm
Plinth base height	60 mm
Overhang of top surface beyond cabinet front/side edges	20 mm
Metal pull handle length	120 mm
Adjustable interior shelf depth (glass cabinet section)	420 mm
Power module placement inset from top right corner edge	30 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Maximum top surface static load capacity	32 kg
Power module electrical rating	120V/12A, 2 AC outlets + 2 USB ports
Finish scratch and stain resistance rating	4000 abrasion cycles
Drawer slide operational cycle rating	50000 open/close cycles
Door hinge operational cycle rating	80000 open/close cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass and top structure	18mm E1-grade engineered wood or solid hardwood with mahogany red wood veneer
Lower cabinet door panels	5mm clear tempered glass set in wood frames with scalloped top edge
Hardware components	Zinc alloy with antiqued brass finish pull handles on drawers and doors
Drawer slide mechanism	Three-section full-extension cold-rolled steel roller slides with soft-damping
Door hinge components	110-degree opening concealed cold-rolled steel hinges
Plinth base construction	Solid wood molded trim matching carcass finish, fixed floor-standing design

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Upper dual drawer storage	Two equal-width horizontally aligned drawers for small office supplies, paper and accessories, full extension access
Lower glass-door enclosed storage	Two hinged doors with transparent glass for visible storage of printers, peripherals or documents, fitted with 1 adjustable shelf
Top surface equipment support	Flat reinforced top surface sized to hold standard desktop printers, scanners or office equipment, with integrated power access
Fixed floor-standing installation	Stable plinth base for fixed placement beside executive desks as a side return cabinet, no casters included

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application space	Executive private offices, positioned as a desk-side return cabinet for printer and office supply storage
Secondary use case	Small office equipment stand placed against office walls to hold scanners, shredders or document storage with easy access power

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety standard recommendation	EN 14073:2004 storage furniture safety requirements
Formaldehyde emission recommendation	EN 13986:2004 E1 emission class for wood-based panels

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Storage cabinet performance recommendation	ANSI/BIFMA X2019storage units performance standard

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission standard recommendation	GB/T 18580E1 grade
Wood furniture surface durability recommendation	GB/T 4893.8abrasion resistance ≥4000 cycles
Hardware durability recommendation	GB/T 3324 general technical requirements for wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission standard recommendation: GB/T 18580E1 grade;
2. Wood furniture surface durability recommendation: GB/T 4893.8abrasion resistance ≥4000 cycles;
3. Hardware durability recommendation: GB/T 3324 general technical requirements for wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-PRNT-091-MHG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-PRNT-091-MHG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-PRNT-091-MHGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

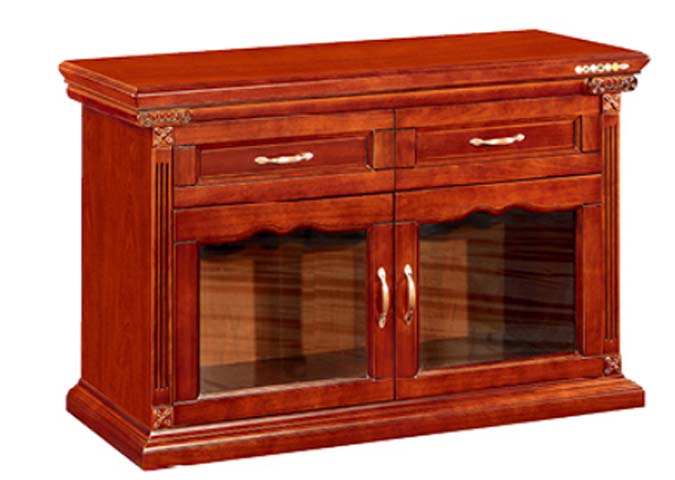

It features a classic fixed plinth base silhouette, with a warm red mahogany veneer finish complemented by clear glass door panels and antiqued metal hardware, lending a polished, traditional aesthetic that aligns with professional formal office environments. The cabinet’s top surface extends slightly beyond the carcass edges, creating a refined overhang that softens its structured rectangular form. Construction balances durability and classic styling. Buyers may select between solid hardwood or E1-grade engineered wood cores for the carcass and top, both finished with smooth red mahogany veneer; the solid top surface is reinforced for stable equipment support, while the fixed solid wood molded plinth base anchors the unit securely to the floor without casters. Lower cabinet doors use clear tempered glass panels set in wood frames with a scalloped top edge, fitted with concealed cold-rolled steel hinges that open to 110 degrees. Drawers operate on three-section full-extension cold-rolled steel roller slides with soft-damping, and all pulls are zinc alloy with an antiqued brass finish. An integrated power module sits flush on the top surface, with 2 AC outlets and 2 USB ports rated for 120V/12A. Functional design supports targeted office storage needs. Two equal upper drawers with full-extension access hold small office supplies, paper, and desktop accessories. The lower glass-enclosed compartment includes one adjustable shelf, offering visible, protected storage for printers, peripherals, or filed documents. The flat reinforced top surface is sized to accommodate standard desktop printers, scanners, or other small office equipment, with the integrated power module eliminating tangled cables for connected devices. This cabinet is designed for executive private offices, intended for fixed placement beside executive desks as a dedicated side return cabinet for printer and supply storage. It also functions well as a wall-mounted equipment stand in smaller office spaces, holding scanners, shredders, or document storage with easily accessible power connections. For procurement planning, note that units ship across multiple cartons, with a referenced assembly time of 40 minutes per set. Buyers can select between solid hardwood and E1 engineered wood core options to align with budget and material preference. The unit’s static top load, shelf load, and drawer load ratings support standard office equipment weights, and the scratch- and stain-resistant finish supports regular daily use in active workspaces. No mobility features are included, so placement should be planned for permanent, fixed positioning.

Traditional Mahogany Finish Desk-Side Office Printer Utility Cabinet
