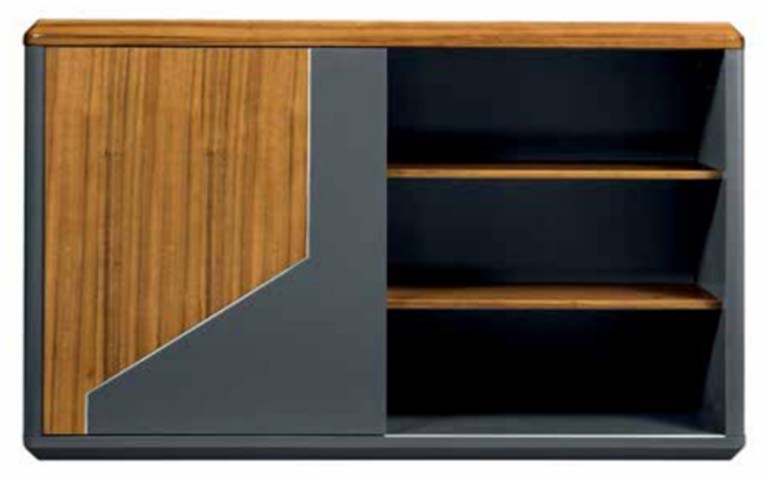

Two-Tone Walnut Dark Grey Sliding Door Low Entry Shoe Cabinet (model SC-WDG-1040) is listed under Traditional Office Sideboard, with overall dimensions of 1040 × 350 × 580 mm and main material of MDF. Load capacity: 8 kg. Certifications: two-tone,finish,sliding,door,storage,angled,open,shoe,shelves,low,profile,console. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 1040 x 350 x 580 mm | |
|---|---|---|
| open compartment section width | 520 mm | |
| sliding door section width | 520 mm | |
| individual open shelf height | 180 mm | |
| open shelf usable depth | 330 mm | |
| top surface thickness | 25 mm | |
| carcass side panel thickness | 18 mm | |
| internal sliding door compartment height | 520 mm | |
| shelf panel thickness | 15 mm | |
| rear wall clearance for wall mounting | 10 mm | |
| bottom edge to floor clearance | 15 mm | |
| rounded top overhang | 10 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| total shoe storage capacity | 12 pairs | |
|---|---|---|
| individual open shelf static load rating | 8 kg | |
| enclosed compartment internal shelf load rating | 10 kg | |
| top surface static load rating | 20 kg | |
| net product weight | 28 kg | |
| sliding door mechanism cycle rating | 10000 open/close cycles | |
| anti-tip restraint load rating | 50 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| cabinet carcass | 18mm E1 grade particleboard with matte dark grey laminate finish | |
|---|---|---|
| top surface and open shelves | 25 mm engineered wood with walnut wood veneer and rounded edge banding | |
| sliding door panel | Engineered wood with diagonal walnut veneer and dark grey geometric inset | |
| compartment backing | 3mm hardboard with matte dark grey finish | |
| sliding door hardware | Cold-rolled steel bottom track with nylon glide rollers | |
| edge banding | 0.8mm PVC edge banding on all exposed cut edges |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| sliding door operation | Horizontal sliding door on bottom track, no outward swing clearance required | |
|---|---|---|
| angled open shelf design | Three slanted forward-tilted shelves to display and hold shoes upright | |
| wall-mount compatible design | Pre-drilled rear mounting points for secure wall anchoring | |
| writable top surface | Flat rounded wood top surface for placing entry keys, mail and small decor |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| small space application | Sliding door eliminates swing clearance requirement, ideal for narrow hallways under 1m width | |
|---|---|---|
| modern interior styling | Two-tone walnut and dark grey finish fits mid-century modern and contemporary home decor schemes |
EU Market Access Requirements* EN Standards
| EN 16121:2013 | Non-domestic storage furniture safety and strength requirements, applicable for light commercial entry use | |
|---|---|---|
| EN 14749:2016 | Domestic kitchen and storage furniture safety requirements, covers anti-tip performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural and finish acceptance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor residential furniture | |
| GB/T 10357.5-2011 | Furniture mechanical performance test for storage units, validates shelf and carcass load capacity |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish acceptance; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor residential furniture; 3. GB/T 10357.5-2011: Furniture mechanical performance test for storage units, validates shelf and carcass load capacity; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
