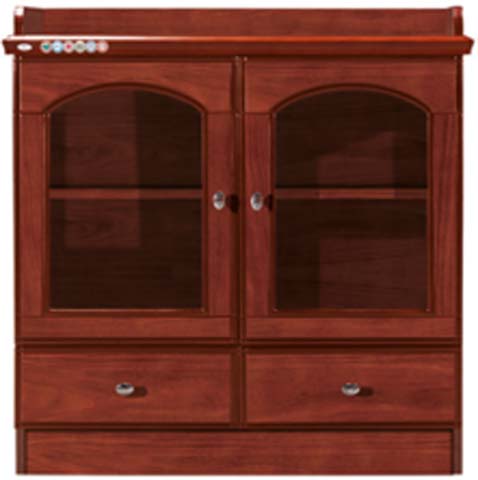

Red-Brown Wood Arched Glass Double Door Storage Cabinet with Two Lower Drawers (model SC-AGD2D-910R) is listed under Traditional Office Sideboard, with overall dimensions of 914 × 457 × 1325 mm and main material of MDF. Load capacity: 30 kg. Certifications: Traditional,style,freestanding,storage,glass-fronted,doors,drawer,raised,backsplash,edge. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 914 x 457 x 1325 mm | |
|---|---|---|
| Upper cabinet door height | 810 mm | |
| Single lower drawer height | 165 mm | |
| Plinth base height | 70 mm | |
| Top backsplash trim height | 80 mm | |
| Upper glass panel width per door | 390 mm | |
| Drawer internal width per unit | 420 mm | |
| Drawer internal depth | 400 mm | |
| Internal shelf depth behind doors | 410 mm | |
| Adjustable shelf height positions | 3 positions | |
| Round metal knob diameter | 32 mm | |
| Back panel thickness | 5 mm | |
| Carcass panel thickness | 18 mm | |
| Edge banding thickness | 1 mm | |
| Glass panel thickness | 5 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product net weight | 44 kg | |
|---|---|---|
| Maximum static load per adjustable shelf | 30 kg | |
| Maximum static load per drawer | 15 kg | |
| Total cabinet static load capacity | 227 kg | |
| Hinge open angle per door | 110 degrees | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 80000 cycles | |
| Recommended wall anchor anti-tip load | 50 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass and door frames | 18mm MDF substrate with red-brown solid wood veneer, scratch-resistant lacquer finish | |
|---|---|---|
| Upper door panels | 5mm clear transparent glass with horizontal wood muntin dividing each panel into two sections | |
| Drawer boxes | 12mm engineered wood with dovetail or dowel joinery, matching veneer front panels | |
| Hardware knobs | Polished chrome-plated zinc alloy round knobs, one per door and one per drawer | |
| Plinth base and backsplash trim | Solid wood veneer matching main cabinet finish, integrated raised edge at top | |
| Back panel | 5mm hardboard with veneer finish, secured with staples for rear enclosure |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Upper storage access | Two hinged doors with 110-degree opening, enclosing adjustable shelves for display storage | |
|---|---|---|
| Drawer operation | Two equal-width lower drawers with side-mount slides for concealed closed storage | |
| Shelf adjustability | Two internal shelves with three height positions to accommodate items of varying heights | |
| Anti-tip safety | Wall anchor restraint included to secure cabinet to wall and prevent forward tipping |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living space use | Suitable for dining rooms or living rooms as display storage for dishware, decor and books | |
|---|---|---|
| Light commercial office use | Suitable for office pantries or reception areas for document and supply storage |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and kitchen storage furniture, applicable for structural validation | |
|---|---|---|
| EN 1728:2012 | Test methods for furniture strength, durability and stability, applicable for load testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for carcass and finish quality inspection | |
|---|---|---|
| GB/T 4893.8-2013 | Surface wear resistance test for furniture coatings, applicable to veneer finish durability | |
| GB/T 10357.5-2015 | Mechanical performance test for storage furniture strength and stability |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for carcass and finish quality inspection; 2. GB/T 4893.8-2013: Surface wear resistance test for furniture coatings, applicable to veneer finish durability; 3. GB/T 10357.5-2015: Mechanical performance test for storage furniture strength and stability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
