PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	500 × 600 × 940 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static vertical load capacity	125 kg
Seat cushion foam density	45 kg/m³
Seat foam rebound rate	42%
Upholstery abrasion resistance	30000 Martindale cycles
Backrest panel static load resistance	75 kg
Product net weight reference	8 kg
Frame joint durability	8 years service life
Seam stitch pitch	8 stitches per 30mm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Frame structure	Solid rubberwood with reddish-brown baked lacquer finish
Seat upholstery	Black PVC faux leather with diamond quilt stitching
Backrest upholstery	Black PVC faux leather with uniform diamond quilting
Seat cushion padding	High-density polyurethane foam core
Backrest padding	25mm thick polyurethane foam layer
Joint hardware	Zinc-plated steel screws and wood dowels
Cross stretchers	Matching solid wood with same reddish-brown finish
Foot pads	Non-slip polyethylene floor protectors
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating posture support	Fixed upright back angle of 98 degrees
Armless access design	No protruding armrests for unobstructed side access
Structural stability	Four-way cross stretcher bracing eliminates frame wobble
Surface maintenance	Wipe-clean non-porous upholstery
Floor protection	Integrated plastic foot glides
Stacking compatibility	Non-stacking fixed leg design
Weight distribution	Tapered leg design transfers load vertically to floor
Seat ventilation	Perforation-free tight upholstery
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Formal conference rooms	Suitable for executive and staff meeting tables for prolonged seated use
Dining areas in hospitality venues	Matches restaurant and hotel banquet seating with durable easy-clean surfaces
Training and classroom spaces	Armless design allows flexible seating arrangements and easy table access
Government and institutional offices	Formal reddish-brown wood finish matches traditional official furniture schemes
Reception and waiting areas	Coordinated appearance provides professional first impression for visitors
Residential dining rooms	Classic design complements traditional wooden dining tables for home use
Event rental stock	Durable construction withstands frequent setup, teardown and repeated use
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Applicable standard for strength, durability and safety requirements for domestic and contract seating
EN 1021-1:2014	Applicable standard for upholstered furniture ignitability resistance to smouldering cigarettes

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable standard for general technical requirements of wooden furniture for quality inspection
GB/T 16799-2008	Applicable standard for performance requirements of PVC artificial leather upholstery materials
GB 18584-2001	Applicable standard for formaldehyde emission limits for interior wooden furniture materials

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable standard for general technical requirements of wooden furniture for quality inspection;
2. GB/T 16799-2008: Applicable standard for performance requirements of PVC artificial leather upholstery materials;
3. GB 18584-2001: Applicable standard for formaldehyde emission limits for interior wooden furniture materials;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DC-SW-BKQ-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DC-SW-BKQ-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DC-SW-BKQ-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

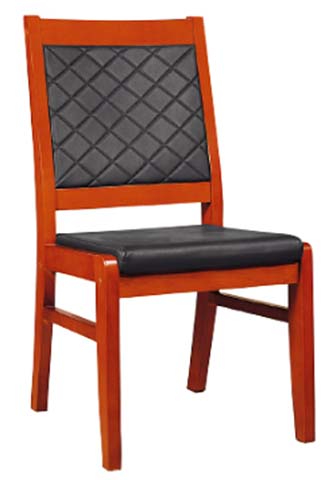

The DC-SW-BKQ-001 armless side chair blends traditional formal styling with functional durability for dual dining and conference use, featuring a streamlined silhouette free of protruding armrests. Its visual design pairs a warm reddish-brown finished wood frame with tailored black diamond-quilted upholstery, creating a cohesive, polished appearance that balances classic and versatile aesthetic appeal. The frame is constructed from solid rubberwood finished with a smooth baked reddish-brown lacquer, reinforced with matching solid wood four-way cross stretchers to eliminate wobble, secured with zinc-plated steel screws and wood dowels for long-term structural integrity rated for 8 years of service life. Tapered solid wood legs transfer vertical load evenly to the floor, capped with non-slip polyethylene foot pads that protect hard floor surfaces from scuffs and scratches. The seat and backrest are upholstered in black PVC faux leather with uniform diamond quilt stitching, supported by internal 14mm bent plywood seat bracing. High-density polyurethane foam forms the seat core, paired with a 25mm polyurethane foam backrest layer, delivering structured upright support via a fixed 98-degree back angle and a dedicated 240mm tall lumbar support zone. The non-porous upholstery surface wipes clean easily, and resists abrasion across 30000 Martindale cycles for frequent use. The fixed non-stacking armless design allows unobstructed side access to tabletops, supporting flexible seating arrangements across a wide range of settings. It is well suited for formal conference rooms supporting prolonged seated use during meetings, hospitality dining and banquet spaces, training classrooms, government and institutional offices with traditional furnishing schemes, professional reception waiting areas, and residential dining rooms paired with classic wooden tables. For procurement planning, note each unit ships in two cartons per set, requires 40 minutes of assembly per unit, and supports efficient bulk shipping with 135 sets fitting a 20GP container at 85% space utilization, with a rated static vertical load capacity of 125kg to accommodate diverse users.

Armless Solid Wood Conference Dining Side Chair with Black Diamond-Quilted Upholstery Specifications
