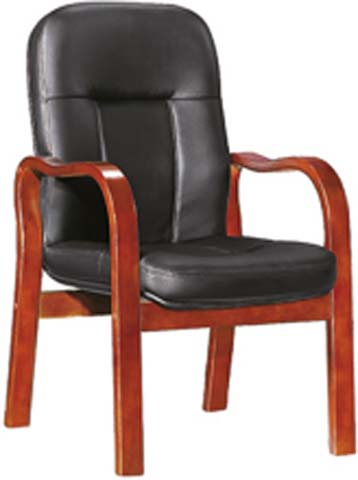

Fixed Solid Wood Frame Black Faux Leather Executive Visitor Chair (model WB-VC-04F) is listed under Wood Frame Side Chair, with overall dimensions of 737 × 800 × 1120 mm and main material of Imported Ash Solid Wood. Load capacity: 125 kg. Certifications: fixed,4-leg,frame,black,padded,upholstery,bent,wood,armrests,mid-back,design. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 737 x 800 x 1120 mm | |
|---|---|---|
| seat height | 455 mm | |
| seat width | 660 mm | |
| seat depth | 510 mm | |
| backrest height | 620 mm | |
| backrest width | 530 mm | |
| seat cushion thickness | 102 mm | |
| back cushion thickness | 120 mm | |
| armrest height above seat | 220 mm | |
| under-seat knee clearance height | 310 mm | |
| leg footprint width | 620 mm | |
| leg footprint depth | 680 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| recommended static load capacity | 125 kg | |
|---|---|---|
| net product weight | 25 kg | |
| seat foam density | 40 kg/m³ | |
| back foam density | 30 kg/m³ | |
| foam rebound rate | 45% | |
| foam compression set | 5% | |
| upholstery abrasion resistance | 50000 cycles | |
| wood frame moisture content | 12% | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| frame construction | Solid bent hardwood with mortise-and-tenon reinforced joinery | |
|---|---|---|
| upholstery | 1.5mm thick microfiber-reinforced black PU leather | |
| seat/back inner support | 15mm thick E1 grade bent plywood | |
| frame finish | Water-based polyurethane paint, 2H hardness, scratch and heat resistant | |
| foot pads | Nylon non-slip adjustable glides | |
| stability bracing | Solid wood horizontal cross stretchers between legs |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| seating adjustability | Non-adjustable fixed frame with no swivel, recline, or height lift | |
|---|---|---|
| back support | Segmented stitched contoured padding with built-in lumbar curvature | |
| arm support | Integrated curved bent wood armrests continuous with front legs | |
| floor protection | Adjustable non-slip glides prevent floor scuffing and level the chair |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| office conference rooms | Fixed upright seating positioned around meeting tables for formal discussions | |
|---|---|---|
| reception and waiting areas | Durable guest seating for visitor lobbies and front reception zones |
EU Market Access Requirements* EN Standards
| EN 1335-2:2018 | Office furniture - Office work chair safety requirements, applicable for fixed visitor chair structural safety | |
|---|---|---|
| EN 1022:2018 | Domestic and contract furniture - Seating determination of stability, applicable for anti-tip performance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Office chair safety and performance standard, applicable for static load and durability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to solid wood frame construction | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wood furniture, applicable for paint and adhesive VOC limits | |
| GB/T 19001-2016 | Quality management system requirement for commercial furniture manufacturing consistency |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to solid wood frame construction; 2. GB 18584-2001: Limit of harmful substances in wood furniture, applicable for paint and adhesive VOC limits; 3. GB/T 19001-2016: Quality management system requirement for commercial furniture manufacturing consistency; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
