PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 1500 × 1200 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Dynamic lifting capacity	80 kg
Static desktop load capacity	120 kg
Leveling adjustment	10 mm per glide
Product net weight	78 kg
Recommended user size	1 user
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop and return panels	25 mm melamine-faced wood-composite board with light oak woodgrain and ABS edge banding
Storage cabinet carcass	18 mm melamine-faced wood-composite panels in light oak and light gray
Back and modesty panels	12 mm light-gray melamine-faced composite panels
Lifting column and base	White powder-coated steel two-stage telescoping column with welded T-foot
Cabinet support feet	Black nylon or rubber circular leveling glides, four visible units
Drawer runner and lock	Side-mounted ball-bearing steel runners with integrated cam lock and two keys

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Motorized two-stage column raises the main desktop through 1200 mm with a 480 mm stroke; controller and handset location are not visible.
Storage layout	Left module combines one lockable shallow drawer, one lower door and one two-level open shelf, while the inner module provides a tall closed cabinet.
Cable and modesty management	Full-width light-gray modesty panel shields the seated knee bay; add-on cable tray and 60 mm desktop grommet should be specified at order.
Stability adjustment	Four round glides level the credenza and the lifting T-foot compensates for minor floor unevenness on hard floors.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	1680 x 760 x 180 mm for desktop pack, 1280 x 600 x 220 mm for return pack, 760 x 420 x 300 mm for hardware and leg pack
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Supervisor or administrative workspace	Suits users needing sit-stand height change plus concealed storage, open reference shelving and a lockable drawer in one footprint.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.5 Desk and Table Products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SIT-LH-1600X1500-SC

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SIT-LH-1600X1500-SC

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SIT-LH-1600X1500-SCOpen Export Tool

Quick Actions

Post an RFQ

Product Description

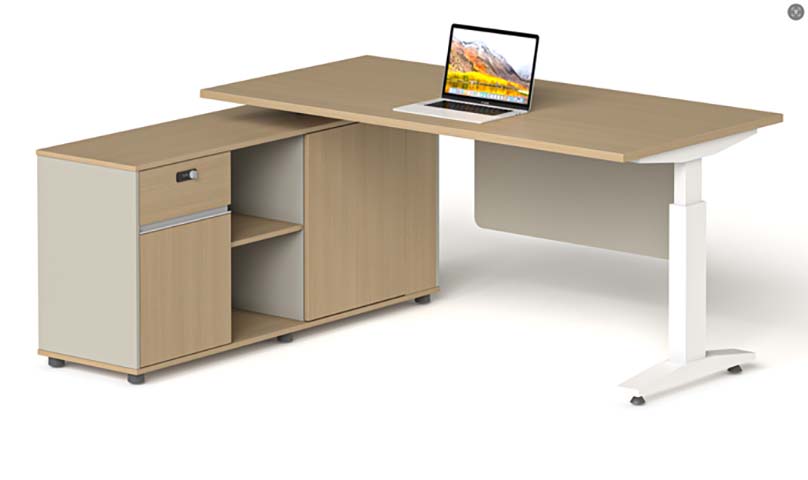

The Height-Adjustable L-Shaped Executive Workstation with Storage Credenza combines a directional executive desk surface, a return work zone, and an integrated storage support in one coordinated layout. Its light oak woodgrain work surfaces are paired with light-gray storage and modesty paneling, while the white powder-coated steel lifting column and welded T-foot create a clean visual contrast. The L-shaped plan provides a main seated work area and a secondary side surface, with a full-width light-gray modesty panel shielding the knee bay. The storage credenza forms part of the workstation footprint rather than appearing as a separate accessory. Construction uses 25 mm melamine-faced wood-composite board for the desktop and return panels, finished with ABS edge banding. The finished top thickness is 50 mm. Storage cabinet carcass panels are 18 mm melamine-faced wood composite in light oak and light gray, with 12 mm light-gray composite back and modesty panels. Height movement is delivered by a motorized two-stage telescoping steel column. The main support section is 80 mm with a 2 mm metal wall, and the base uses a white powder-coated welded T-foot. Four visible black nylon or rubber circular glides level the credenza, while the T-foot helps compensate for minor unevenness on hard floors. Each glide offers 10 mm of leveling adjustment. The workstation is designed for one user and supports changing between sitting and standing positions. The motorized column raises the main desktop through 1200 mm with a 480 mm stroke; the controller and handset location are not visible in the supplied details. Dynamic lifting capacity is 80 kg, static desktop load capacity is 120 kg, and the top static load reference is 150 kg uniformly distributed. The main seat position provides 680 mm high and 900 mm wide effective knee clearance. Storage is organized for mixed executive and administrative tasks. The left module includes a lockable shallow drawer, a lower door, and a two-level open shelf, while the inner module provides a tall closed cabinet. The drawer uses side-mounted ball-bearing steel runners rated for 45 kg per pair and 50,000 cycles, with an integrated cam lock and two keys. This arrangement supports secure personal or confidential items, concealed larger storage, and accessible reference materials. Cable management should be reviewed during specification. The desk includes an 80 mm diameter cable opening and a cable tray with 120 mm depth in the listed dimensional details, while the functional notes indicate that an add-on cable tray and a 60 mm desktop grommet should be specified at order. Procurement teams should confirm the required cable configuration before purchase. The system is suited to supervisor offices, executive workstations, administrative rooms, and residential workspaces that require sit-stand support, enclosed storage, open shelving, and a lockable drawer in a single footprint. It is supplied unbranded under model SIT-LH-1600X1500-SC. Planning should account for the 78 kg net product weight, assembly requirement, and packaged logistics details, which reference multiple cartons and a packaged gross weight of 180 kg per set.

Height-Adjustable L-Shaped Executive Workstation with Storage Credenza Specifications
