PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2000 × 1600 × 750 mm
Main worktop thickness	25 mm
Edge banding thickness	2 mm
A-frame leg wall thickness	1.8 mm
Knee clearance height	720 mm
Knee clearance width	1200 mm
Side return cabinet depth	600 mm
Side return cabinet height	750 mm
Cable grommet diameter	60 mm
CPU compartment inner dimensions	250 x 500 x 450 mm
Open shelf compartment height	300 mm
Enclosed cabinet inner dimensions	400 x 500 x 650 mm
Worktop overhang on leg side	50 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Tabletop static load capacity	159 kg
Drawer/cabinet shelf dynamic load	25 kg
Recommended user weight capacity	136 kg
Surface scratch resistance rating	3000 cycles
Leveling foot adjustment range	10 mm
Warranty period	3 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop substrate	25mm particle board core
Worktop surface	Scratch-resistant light oak matte laminate
Side return cabinet panels	18mm engineered wood with matching laminate
A-frame support legs	Powder-coated off-white steel tubing
Cabinet door lock	Zinc alloy keyed cam lock
Edge banding	2mm PVC matching worktop finish
Cabinet internal shelf	18mm engineered wood fixed shelf
Leveling feet	Nylon base with steel threaded stem
Cable grommet	ABS plastic recessed cable port
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated storage layout	Dedicated CPU bay, 2-tier open shelf, lockable enclosed cabinet
Cable management	Recessed desk grommet routes power and data cables from work surface
Leveling adjustment	Threaded nylon feet adjust up to 10mm to stabilize desk on uneven floors
Lockable storage	Keyed cam lock secures enclosed cabinet for sensitive document storage
Work surface configuration	Continuous L-shaped top provides dual work zones for computer and document tasks
CPU compartment access	Open front bay allows easy PC installation and ventilation without door obstruction
Frame support design	Dual angled A-frame steel legs eliminate front cross-brace for unobstructed leg room
Surface maintenance	Matte laminate surface resists stains and wipes clean with standard office cleaners
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private office	Fits manager or director offices with dedicated work and document storage needs
Home office workstation	Provides ample work surface and integrated storage for remote professional use
Small open office workstation	Serves as a dedicated team leader workstation in open plan office layouts
Recommended seating pairing	Pairs with standard mid-back or high-back executive office chairs with 480 mm seat height
Color scheme suitability	Two-tone light wood and off-white finish matches Scandinavian, modern and minimalist office interiors
Equipment compatibility	Supports dual monitor setups, desktop PC, laptop and standard office peripherals without overhang

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office furniture - Work tables and desks, Part 1: Dimensions, applicable for ergonomic clearance
EN 527-2:2002+A1:2019	Office furniture - Work tables and desks, Part 2: Mechanical safety requirements
EN 13722:2004	Office furniture - Storage units, applicable for cabinet structural performance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk Products, applicable for static load, durability and stability testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for panel structural integrity
GB/T 3327-2016	Office desks and tables, applicable for dimensional and stability performance
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel structural integrity;
2. GB/T 3327-2016: Office desks and tables, applicable for dimensional and stability performance;
3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXE-L-AFRAME-2000

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXE-L-AFRAME-2000

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXE-L-AFRAME-2000Open Export Tool

Quick Actions

Post an RFQ

Product Description

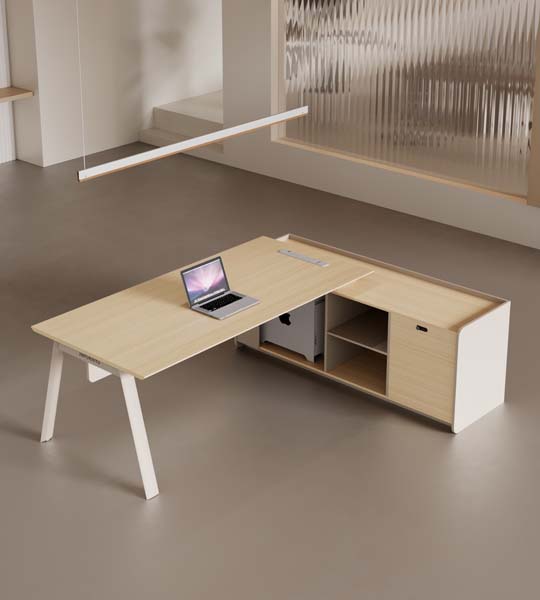

The Two-Tone L-Shaped Executive Office Desk with Integrated Side Return Storage Cabinet presents a sleek, minimalist modern silhouette defined by its continuous L-shaped layout that creates two distinct work zones. Its two-tone palette pairs a light oak matte worktop with soft off-white steel framing, aligning seamlessly with Scandinavian, modern, and minimalist interior schemes. The integrated side return sits flush with the main work surface to form a cohesive, uncluttered visual profile without disjointed add-on components. Constructed for long-term daily use, the desk features a 25mm particle board core worktop finished with scratch-resistant matte laminate, trimmed with 2mm PVC edge banding matched to the worktop finish. Dual angled powder-coated off-white steel A-frame legs support the structure, designed without a front cross-brace to preserve open leg room. The integrated side return cabinet uses 18mm engineered wood panels clad in matching laminate, fitted with a zinc alloy keyed cam lock, a fixed internal engineered wood shelf, and nylon leveling feet with steel threaded stems to stabilize the unit on uneven floors. A recessed ABS plastic cable grommet sits flush with the work surface. Functionality is tailored to productive professional work: the continuous L-shaped top supports separate zones for computer tasks and document review, with capacity to hold dual monitors, a desktop PC, laptop, and standard office peripherals without overhang. The side return integrates a dedicated open-front CPU bay for easy installation and ventilation, a two-tier open shelf for frequently accessed items, and a lockable enclosed cabinet to secure sensitive documents. The recessed cable grommet routes power and data cables neatly off the work surface, while threaded leveling feet adjust to compensate for uneven flooring. Ample knee clearance accommodates comfortable extended use, and the desk supports compatible mid-back or high-back executive chairs with appropriate seat height. This desk suits a range of professional spaces: private executive offices for managers and directors requiring integrated work and document storage, high-function home office workstations for remote professionals, and dedicated team leader workstations in small open plan office layouts. Procurement teams and buyers should note the unit ships across multiple cartons per set, with an assembly time per set of 40 minutes. The product includes a 3-year warranty, with defined static load capacity for the tabletop, dynamic load capacity for cabinet shelves and drawers, and recommended user weight capacity for safe operation. The light wood and off-white finish offers versatile coordination with existing neutral office furnishings, eliminating the need for custom decor matching to achieve a polished, professional workspace aesthetic.

Two-Tone L-Shaped Executive Office Desk with Integrated Side Return Storage Cabinet Specifications
