| Submitted | Field | Original | 修改后参数 | Note / Status |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions (main desk + side return) | 2400 x 1800 x 750 mm | |
|---|---|---|
| Main desktop working surface size | 1800 x 900 mm | |
| Side storage pedestal top size | 1200 x 600 mm | |
| Desktop thickness | 50 mm | |
| Under-desk knee clearance height | 630 mm | |
| Under-desk knee clearance width | 800 mm | |
| Side pedestal height | 620 mm | |
| Rounded desktop corner radius | 30 mm | |
| Decorative modesty panel size | 1200 x 450 mm | |
| Support leg base width | 120 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Desktop uniform static load capacity | 150 kg | |
|---|---|---|
| Product net weight range | 135 kg | |
| Recommended maximum user weight for seated use | 130 kg | |
| Desktop surface abrasion resistance rating | 2000 cycles | |
| Edge impact resistance | 20 J impact without chipping | |
| Structural warranty period | 5 years | |
| Drawer slide rated load | 45 kg per drawer | |
| Drawer slide durability | 50000 open/close cycles | |
| Hinge durability | 80000 open/close cycles | |
| Cable tray rated load | 10 kg |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main desktop substrate | 25mm thick high-density MDF board | |
|---|---|---|
| Desktop surface finish | Walnut wood veneer with matte polyurethane coating | |
| Desktop edge banding | 50mm thick soft-touch polyurethane edge wrapping | |
| Side storage pedestal panel base | 18mm thick MDF board | |
| Pedestal outer upholstery | Taupe woven linen-look fabric with contrast white stitching | |
| Modesty panel decorative surface | Dark grey PU leather with embossed scale pattern and light contrast stitching | |
| Desk support frame and legs | Powder-coated cold-rolled steel with taupe finish | |
| Integrated power grommet | ABS plastic housing with 3 AC outlets and 2 USB charging ports | |
| Pedestal base trim | Brushed champagne gold metal edge trim | |
| Adjustable foot glides | Nylon base adjustable leveling glides | |
| Side pedestal panel substrate | 18mm thick high-density MDF board | |
| Pedestal outer finish | Taupe matte paint with woven fabric-look texture and contrast white double stitching |
Adjustment / rotation / tilt / mobility / storage features
| Integrated desktop power access | Recessed power grommet with 3 AC sockets and 2 USB-A ports positioned at center of main desk for device charging | |
|---|---|---|
| Fixed L-shaped work surface configuration | Seamless extended work area combining main writing surface and side return for multi-tasking, display and auxiliary work space | |
| Attached side storage pedestal | Enclosed cabinet interior with 2 file drawers for A4/folio document storage, concealed behind upholstered front panel | |
| Decorative modesty privacy panel | Upholstered curved panel under rear of main desk blocks view of seated user's legs from office front | |
| Floor leveling adjustment | Adjustable nylon glides at all base contact points compensate for 15mm of uneven floor to keep desktop level | |
| Cable management routing | Recessed channel under desktop routes power and data cables from grommet to floor exit, eliminates loose cord clutter | |
| Rounded safety edge design | All desktop corners and edges have 30mm radius soft wrap to prevent impact injury during movement around desk | |
| Fixed L-shaped work surface | Seamless offset work area combining 1800x900mm main writing surface and 1200x600mm side return, providing 2.34sqm total work area for multi-tasking, document display and auxiliary work | |
| Under-desk cable management | Recessed steel cable tray routed under the desktop from the power grommet to the rear floor exit, holding bundled power and data cables to eliminate loose cord clutter across work surface | |
| Cable Management Capacity | Reference capacity 10 power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5 controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 3 packages | |
|---|---|---|
| Main desktop carton dimensions | 1900 x 1000 x 120 mm | |
| Side pedestal carton dimensions | 1300 x 700 x 700 mm | |
| Frame and hardware carton dimensions | 1200 x 500 x 200 mm | |
| Total shipping gross weight | 160 kg | |
| Total shipping volume (CBM) | 0.53 CBM | |
| On-site assembly time | 90 minutes for 2 trained installers | |
| 40ft HQ container loading quantity | 105 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
| Executive private office | Designed for senior manager and executive private offices, provides large professional work surface and integrated storage for document and device management | |
|---|---|---|
| Manager meeting space | Suitable for small in-office meetings with 2 visitors across the desk, sufficient surface space for documents and presentation materials | |
| High-end home office | Appropriate for luxury residential home offices, upholstered accents coordinate with premium residential interior design | |
| Corporate boardroom ancillary space | Usable as a secondary work surface in boardroom anterooms or executive lounge areas for document preparation and device charging | |
| Recommended matching chair | Pairs with mid-back or high-back executive office chairs with 460 mm seat height to maintain ergonomic seated alignment with 750mm desktop height | |
| Small in-desk meeting space | Suitable for 2-visitor seated meetings across the main desk, 900mm depth provides sufficient space for presentation documents, laptops and refreshments | |
| Recommended matching seating | Pairs with mid-back or high-back executive office chairs with 460mm seat height, maintaining 290mm ergonomic clearance between seat and desktop for comfortable seated posture |
European market access and chemical requirements
| EN 527-1:2011 Office furniture - Work tables and desks - Part 1: Dimensions | Applicable for verifying working height, clearance dimensions and ergonomic fit for office use | |
|---|---|---|
| EN 527-2:2016 Office furniture - Work tables and desks - Part 2: Mechanical safety requirements | Applicable for structural strength, stability and safety performance acceptance | |
| EN 13722:2004 Furniture - Assessment of surface resistance to abrasion | Applicable standards and test results require confirmation |
US and Canada office-furniture standards
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | Applicable for desk panel dimensional tolerance, surface finish quality and structural stability acceptance | |
|---|---|---|
| GB/T 3327-2018 Office desks and tables | Applicable for static load, stability, impact and durability performance testing and acceptance | |
| GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | Applicable for formaldehyde emission limit (<=0.124mg/m3) acceptance for desk panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable for desk panel dimensional tolerance, surface finish quality and structural stability acceptance; 2. GB/T 3327-2018 Office desks and tables: Applicable for static load, stability, impact and durability performance testing and acceptance; 3. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Applicable for formaldehyde emission limit (<=0.124mg/m3) acceptance for desk panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.

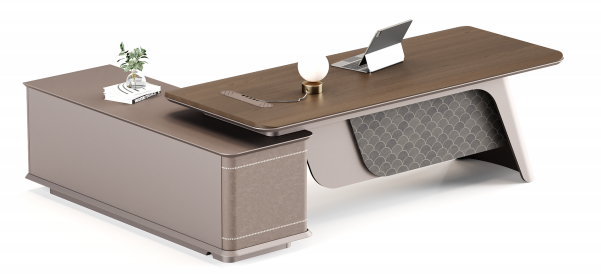

Open Export ToolThe MINGHUI ED-L2400-EXEC L-Shaped Executive Office Desk with Attached Storage Pedestal presents a polished, professional silhouette defined by its seamless fixed L-shaped layout, pring a broad mn writing surface with an integrated side return topped by a matching storage pedestal. Soft rounded edges finished in thick taupe soft-touch polyurethane wrap every desktop corner for gentle, safe contours, while coordinating upholstered accents add tlored visual depth: the side pedestal features a taupe woven linen-look textured finish accented with contrast white double stitching, a dark grey embossed scale-pattern PU leather modesty panel sits below the mn desk rear for privacy, and brushed champagne gold metal trim lines the pedestal base for a subtle premium highlight. Powder-coated taupe cold-rolled steel supports form a stable cantilever frame, fitted with nylon adjustable leveling glides at every floor contact point. Constructed with high-density MDF substrates for both desktop and storage panels, the desk features a walnut wood veneer top coated in matte polyurethane for a smooth, low-sheen wood grn surface. The attached pedestal encloses two file drawers sized for A4 and folio documents, fitted with commercial-grade ball-bearing slides and durable hinges for long-term regular use. Functional features include a recessed central desktop power grommet with three AC outlets and two USB-A ports for device charging, pred with an under-desk steel cable tray and routing channel to contn cords and eliminate work surface clutter. The fixed work surface offers generous clear knee clearance for seated use, while the rounded edge profile reduces impact risk during dly movement around the workspace. The frame and panels carry a 5-year structural warranty, with surface durability rated for regular commercial office use. This desk is well suited for executive private offices and manager workspaces, where it supports both individual focused work and small impromptu meetings with up to two visitors across the mn surface. It also fits high-end luxury home offices, as its warm wood and soft upholstered finishes coordinate with premium residential interiors, and serves as a functional secondary work surface in corporate boardroom anterooms or executive lounge areas. Procurement teams should note the product ships in three separate flat-packed cartons, with on-site assembly completed by two trned installers. Pring is recommended with mid-back or high-back executive chrs with a 460mm seat height to mntn ergonomic seated alignment. Full material grade confirmation and final bill of materials detls should be confirmed with the supplier prior to bulk order placement.
