PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended desktop static load	80 kg
Pedestal cabinet top load	50 kg
Drawer or file compartment payload	30 kg
Shelf payload if fitted internally	20 kg per shelf
Recommended seated users	1 user
Product net weight	75 kg
Leveling adjustment	10 mm per foot
Warranty duration	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate and finish	25 mm engineered wood board with light oak melamine surface and matching edge band
Storage cabinet carcass	18 mm light oak melamine particleboard or MDF panels with doweled and cam-fastened corners
Dark cabinet fronts	Dark grey melamine or powder-coated panel doors with flush inset appearance
Under-desk modesty panel	Grey steel or hard-wearing composite panel fixed beneath the rear worktop
Support legs	50 x 50 mm charcoal powder-coated square steel legs with floor glides
Hardware and edging	PVC edge band, cam-lock connectors, hinges, drawer slides, and adjustable polymer or metal glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work and storage layout	The main desk provides a 700 mm deep writing surface while the 500 mm return supports files, a CPU, or meeting materials.
Cable routing	A 160 x 60 mm slotted desk port allows monitor and power cables to pass from the worktop into the under-desk zone.
Equipment ventilation	Six horizontal louvers on the cabinet end provide passive airflow for a computer tower or charging equipment.
Storage access	Floor-standing cabinet body is configured for door or drawer access, with a visible full-height dark front panel and 30 kg compartment payload.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suited to managers who need a 1800 mm writing desk, side storage, and computer equipment space in one footprint.
Administrative or supervisor workstation	Supports document processing, monitor placement, filing, and cable management in a fixed seated workstation.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011 office desks	Defines safety, strength, and dimensional requirements applicable to the primary work desk.
EN 527-2:2002 office desk mechanical safety	Recommended for stability, vertical load, and durability verification of the desk structure.
EN 14073-2:2004 storage furniture safety	Applies to strength and stability requirements for the attached office storage cabinet.
EN 14073-3:2004 storage furniture stability	Recommended for overturning assessment of the floor-standing return cabinet.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.5 Desk and Table Products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024 dimensions and structural integrity	Applies to wooden furniture dimensional coordination, strength, and stability checks for general office desks and cabinets.
GB/T 3325-2017 metal furniture requirements	Applies where steel legs and metal support structures are used in the desk frame.
GB/T 10357 furniture mechanical tests	Recommended test basis for desk strength, drawer durability, stability, and static load acceptance.
GB 18580-2017 formaldehyde emission control	Recommended procurement limit for wood-based panels used in the desktop and cabinet carcass.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024 dimensions and structural integrity: Applies to wooden furniture dimensional coordination, strength, and stability checks for general office desks and cabinets.;
2. GB/T 3325-2017 metal furniture requirements: Applies where steel legs and metal support structures are used in the desk frame.;
3. GB/T 10357 furniture mechanical tests: Recommended test basis for desk strength, drawer durability, stability, and static load acceptance.;
4. GB 18580-2017 formaldehyde emission control: Recommended procurement limit for wood-based panels used in the desktop and cabinet carcass.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSH-EXEC-1800-PC

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSH-EXEC-1800-PC

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSH-EXEC-1800-PCOpen Export Tool

Quick Actions

Post an RFQ

Product Description

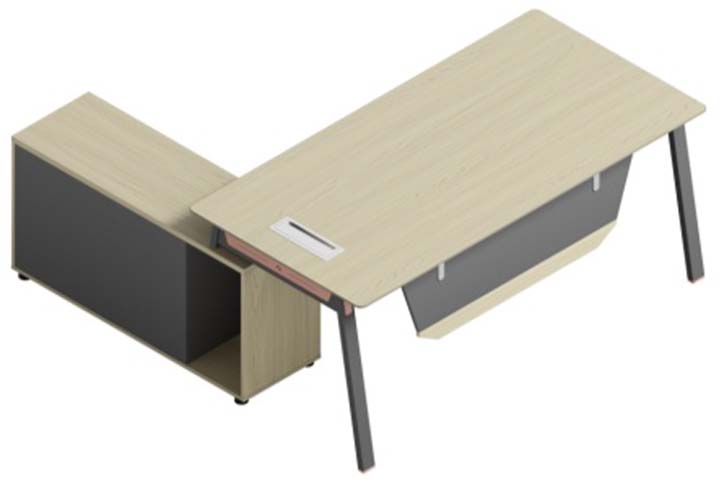

The L-Shaped Executive Workstation with Side Storage Cabinet offers a coordinated modern workspace solution for users who require a broad writing surface, return area, and integrated storage in one footprint. Its light oak-grain melamine finish creates a warm office appearance, contrasted by dark grey flush-inset cabinet fronts, charcoal powder-coated square steel legs, and a grey rear modesty panel. The L-shaped layout places the main desk as the primary writing zone, with a side return supporting files, a computer tower, meeting materials, or task-related equipment. The floor-standing storage cabinet forms a substantial visual element along the side, while the metal legs and under-desk panel give the workstation a structured commercial look. Construction combines engineered wood panels with steel support and standard cabinet hardware. The desktop uses a 25 mm engineered wood board with a light oak melamine surface and matching edge band, producing a finished top thickness of 50 mm. The storage cabinet carcass is built from 18 mm light oak melamine particleboard or MDF panels with doweled and cam-fastened corners. Dark grey melamine or powder-coated panel doors provide a full-height front appearance. PVC edge banding, cam-lock connectors, hinges, drawer slides, and adjustable polymer or metal glides complete the assembly. The charcoal legs are 50 by 50 mm square steel sections with floor glides, and each foot allows 10 mm of leveling adjustment. Practical features are focused on daily office organization. The main seat position provides 680 mm of knee clearance height and 900 mm of width. The main work surface is 700 mm deep, while the return is 500 mm deep. Cable management includes an 80 mm diameter opening and a 160 by 60 mm slotted desk port, directing monitor and power cables toward an under-desk cable tray with 120 mm of depth. Six horizontal louvers on the cabinet end provide passive airflow for a computer tower or charging equipment. Storage access can be configured through doors or drawers, with each drawer or file compartment rated for a 30 kg payload. The workstation is intended for one seated user, with a recommended desktop static load of 80 kg, cabinet top load of 50 kg, and 20 kg per internal shelf where fitted. This model is well suited to private executive offices, manager rooms, administrative work areas, and supervisor stations. It supports monitor placement, document processing, filing, and computer equipment in a fixed seated setup. It can also be considered for refined residential workrooms where a larger desk and storage combination is appropriate. Procurement planning should account for the unbranded product designation, model LSH-EXEC-1800-PC, 75 kg net weight, and assembly requirement. Reference logistics list one set across two cartons, with separate packaging for the main top and return or pedestal; planning teams should confirm final packing details before delivery. The reference assembly time is 40 minutes per set. Access to the room, floor protection, leveling, and cable layout should be checked before installation.

L-Shaped Executive Workstation with Side Storage Cabinet Specifications
