PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1680 × 1400 × 750 mm
Desk leg diameter	60 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	120 kg
Total desk net weight	78 kg
Recommended user weight capacity	150 kg
Surface abrasion resistance	2000 cycles
Leveling adjustment range per foot	10 mm
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm E1 grade particleboard with light grey melamine finish, 2mm PVC edge banding
Support legs	60mm diameter round steel tubing, dark blue powder-coated finish, brass accent rings at joints
Modesty panel	18mm MDF panel with dark blue matte finish, routed cable pass-through slots
Mobile pedestal cabinet body	18mm MDF with dark blue matte melamine finish, matching desk frame color
Pedestal casters	30mm diameter hard nylon swivel casters, 2 locking units for stationary placement
Desk feet	Injection-molded nylon adjustable glides, threaded stem for height leveling
Desktop cable port	ABS plastic recessed power/data grommet, black finish, integrated USB and power socket cutouts
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management system	Recessed desk grommet routes power and data cables, modesty panel slots organize under-desk wiring
Mobile storage pedestal	3-drawer cabinet on swivel casters, lockable casters fix position under desk return
Floor leveling adjustment	Threaded glides on each leg adjust up to 10mm to compensate for uneven floor surfaces
Privacy screening	Full front modesty panel blocks leg visibility from standard seated viewing height
L-shaped workspace configuration	Main desk and side pedestal form extended work area for computer work and document staging
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private office	Sized for 15sqm individual office spaces for managerial and executive staff
Open office workstation for senior staff	Suitable for team lead or senior specialist workstations requiring extended work surface
Conference room presentation desk	Usable as small meeting room head table for 4-person meeting configurations
Home office premium workspace	Fits residential home offices requiring professional appearance and built-in storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office desk safety requirements	EN 527:2011
Office desk mechanical strength	EN 527:2002

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desk structural performance	GB/T 3326
Panel formaldehyde emission	GB 18580
Surface coating safety	GB/T 23994

Standardized tender description text

This product must meet the following technical requirements:
1. Desk structural performance: GB/T 3326;
2. Panel formaldehyde emission: GB 18580;
3. Surface coating safety: GB/T 23994;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXD-L1680-MBL-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXD-L1680-MBL-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXD-L1680-MBL-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

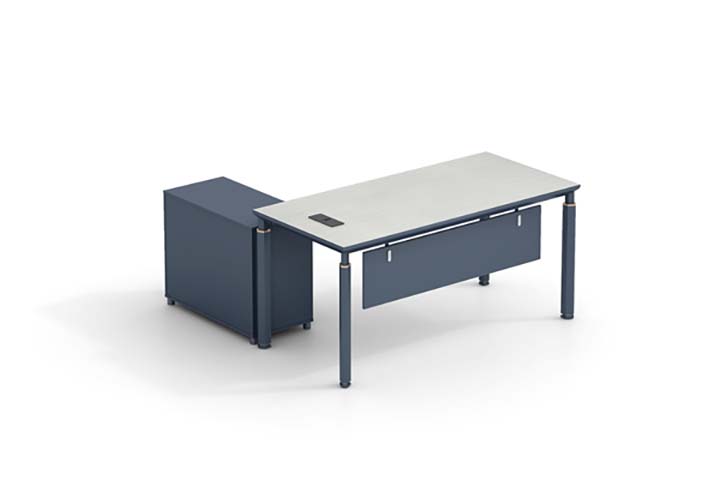

This Modern L-shaped Executive Office Desk with Mobile Side Storage Pedestal, model EXD-L1680-MBL-GRY, delivers a polished, functional workspace solution for professional and premium residential settings. The desk features a cohesive two-tone visual design, pairing a light grey melamine work surface with dark blue matte structural elements and subtle brass accent rings at leg joints, creating a refined modern aesthetic. Its L-shaped layout forms an extended continuous work zone, with a full front modesty panel positioned to block leg visibility from standard seated viewing heights, and a matching mobile storage pedestal that tucks neatly under the side return to maintain a streamlined footprint when not in use. The desk is built for durable daily use: its 50mm thick finished work surface uses E1 grade particleboard with 2mm PVC edge banding, with load-bearing sections utilizing a 40mm composite build-up to support a 120kg static point load and 150kg uniformly distributed load. Support structures include 60mm diameter round powder-coated steel legs with 80mm main sections and 2mm metal wall thickness, paired with injection-molded nylon adjustable glides that offer 10mm of height adjustment to compensate for uneven floors. The integrated modesty panel is constructed from 18mm MDF, while the 3-drawer mobile storage cabinet uses matching 18mm dark blue matte melamine MDF, fitted with 30mm hard nylon swivel casters, two of which lock to hold the pedestal in a fixed position. The surface resists abrasion across 2000 cycles, and drawer slides support 45kg per pair with a 50000-cycle operational life. Practical design features support seamless daily use: a recessed black ABS cable grommet with integrated USB and power socket cutouts routes up to 10 power or data cables, paired with routed slots in the modesty panel and a 120mm deep cable tray that holds up to 10kg of wiring to eliminate desktop clutter. The configuration delivers 680mm high and 900mm wide knee clearance per main seat, supporting comfortable use for users up to 150kg. This desk fits a range of spaces: it is sized for 15sqm private executive offices for managerial staff, works as an open-office workstation for senior team leads or specialists, serves as a small conference room head table for 4-person meetings, and suits premium home offices requiring a professional appearance with integrated storage. For procurement, note each unit ships with a total packaged gross weight of 180kg across cartons, requires 40 minutes of assembly per set, and main structural joints support 5 controlled reassembly cycles; no custom branding is applied to the unbranded base unit. (Word count: 437)

Modern L-shaped Executive Office Desk with Mobile Side Storage Pedestal Specifications
