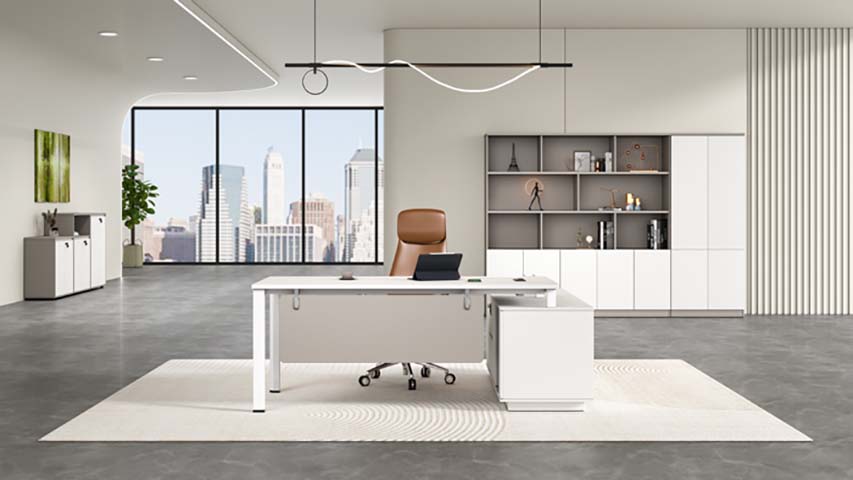

Product supplierWhite L-Shaped Executive Desk with Right Storage Pedestal, 50 mm engineered-wood board with white matte laminate and sealed straight edge
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2200 × 1800 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop distributed static load | 120 kg | |
|---|---|---|
| Pedestal top load | 40 kg | |
| Drawer load per drawer | 25 kg | |
| Suggested user weight at workstation | 150 kg | |
| Product net weight | 95 kg | |
| Seating capacity | 1 person | |
| Recommended desktop point load | 45 kg | |
| Warranty target | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop panel | 50 mm engineered-wood board with white matte laminate and sealed straight edge | |
|---|---|---|
| Storage cabinet | 18 mm white engineered-wood carcass and drawer fronts with matching edge banding | |
| Modesty panel | 18 mm light-gray matte engineered-wood panel fixed beneath the desktop | |
| Leg frame | 60 x 60 mm white powder-coated square steel tube with leveling foot pads | |
| Drawer runners | 45 mm side-mounted full-extension ball-bearing slides | |
| Cable grommet | 80 mm plastic round cable port with removable cover |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| L-shaped work layout | Main 2200 mm desk plus 1200 mm right return provides separate writing, computer and storage zones | |
|---|---|---|
| Pedestal storage | Right-side cabinet provides three drawer compartments for files, stationery and personal items | |
| Cable management | One desktop grommet routes monitor and power cables toward the rear modesty-panel zone | |
| Floor leveling | Separate steel legs and pedestal plinth support the desk; feet should be adjusted to a 750 mm level work surface |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office | Suits private manager offices where the main surface supports computing and the right return supports files and meeting documents | |
|---|---|---|
| Commercial workstation | Suitable for procurement as a single-person desk in corporate, legal or administrative rooms requiring enclosed under-desk storage |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture safety and strength | EN 527for safety, strength and durability requirements applicable to office desks | |
|---|---|---|
| Office desk dimensional guidance | EN 527for workstation dimensions, clearance and seated-user fit | |
| Indoor seating ergonomic coordination | EN 1335for matching office chair seat-height adjustment to the 750 mm desk height |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Desktop and panel physical performance | GB/T 3324 for dimensions, dimensional tolerance, material, coating and structural inspection of wooden furniture | |
|---|---|---|
| Formaldehyde emission | GB 18580 for indoor formaldehyde emission control of wood-based panels and finished wood furniture | |
| Office desk mechanical safety | GB/T 3325 for strength, stability and durability testing of metal office furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. Desktop and panel physical performance: GB/T 3324 for dimensions, dimensional tolerance, material, coating and structural inspection of wooden furniture; 2. Formaldehyde emission: GB 18580 for indoor formaldehyde emission control of wood-based panels and finished wood furniture; 3. Office desk mechanical safety: GB/T 3325 for strength, stability and durability testing of metal office furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
