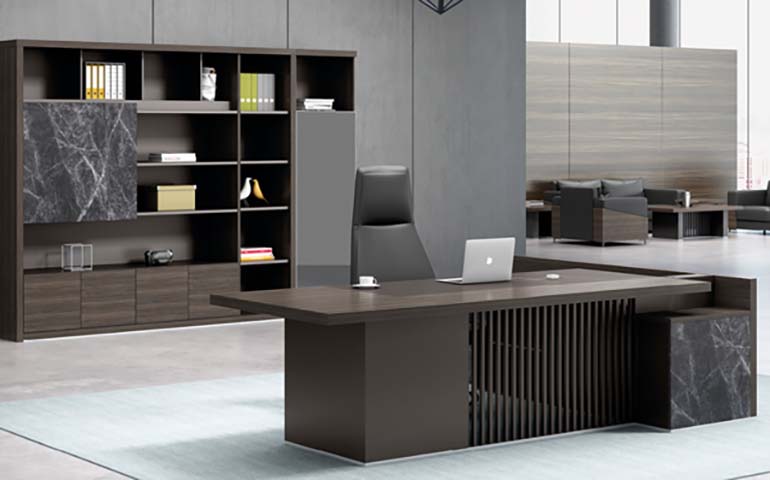

Product supplierL-Shaped Executive Office Desk with Side Pedestal and Vertical Slat Modesty Panel, 18mm thick E0-grade high-density fiberboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 2000 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total desk weight | 185 kg | |
|---|---|---|
| Main desktop static load capacity | 150 kg | |
| Pedestal drawer static load per unit | 25 kg | |
| Recommended maximum user weight support | 130 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Design service life | 10 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | 18mm thick E0-grade high-density fiberboard | |
|---|---|---|
| Desktop surface finish | Dark walnut matte melamine laminate | |
| Decorative accent panels | Engineered dark marble-patterned stone veneer | |
| Structural support panels | 25mm thick particleboard with matching melamine edging | |
| Modesty panel slats | 15mm wide solid wood-composite vertical slats | |
| Base edge trim | 1mm thick brushed aluminum strip | |
| Drawer box construction | 12mm thick hardboard with full-extension steel slides | |
| Hardware fittings | Zinc-plated steel cam locks and connecting bolts | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 3 lockable drawers in right-side fixed pedestal | |
|---|---|---|
| Cable management | 2 concealed desk-top grommets with rear cable channel | |
| Modesty panel privacy | Full-height vertical slat panel blocks direct view of seated user's legs | |
| Work surface layout | Continuous L-shaped top provides separate zones for computer work and document review | |
| Floor protection | Height-adjustable polyethylene glides on base bottom | |
| Assembly type | Knock-down flat-pack construction with cam-lock fasteners | |
| Desk orientation | Fixed right-side return configuration | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Primary use for senior management roles requiring large work surface and integrated storage | |
|---|---|---|
| Corporate boardroom ancillary workspace | Suitable for meeting preparation and document review adjacent to boardrooms | |
| High-end law or finance firm partner office | Matches professional, formal aesthetic for client-facing private office settings | |
| Open-plan manager workstation | Can be used in enclosed manager pods within open office layouts | |
| Recommended paired furniture | Pair with matching tall open bookshelf and high-back leather executive chair for coordinated suite |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office desk strength and durability | EN 527:2002+A1:2019 | |
|---|---|---|
| Surface wear resistance | EN 15186:2012 | |
| Stability testing | EN 1730:2012 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Desk dimensional tolerance | GB/T 3326 | |
|---|---|---|
| Surface coating adhesion | GB/T 4893.4 | |
| Formaldehyde emission limit | GB 18584 |
Standardized tender description text
This product must meet the following technical requirements: 1. Desk dimensional tolerance: GB/T 3326; 2. Surface coating adhesion: GB/T 4893.4; 3. Formaldehyde emission limit: GB 18584; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
