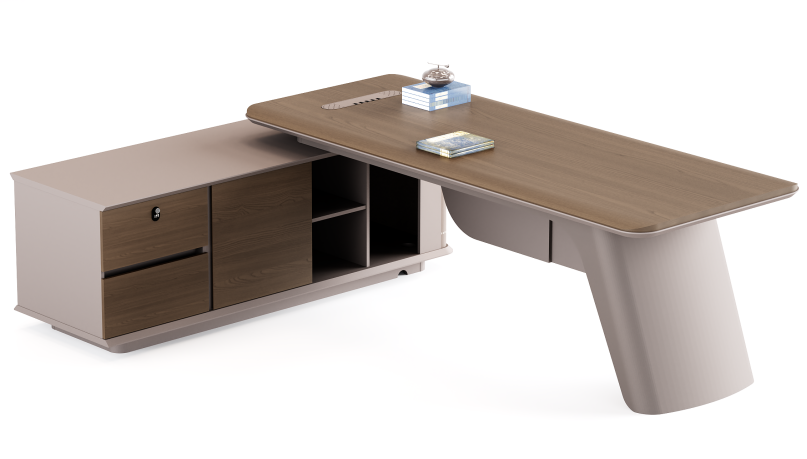

L-Shaped Executive Office Desk with Integrated Side Storage Pedestal

Submitted	Field	Original	修改后参数	Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

Submitted

Field

Original

修改后参数

Note / Status

No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions (worktop + return)	2400 x 1800 x 750 mm
Main worktop depth	900 mm
Worktop edge thickness	50 mm
Side storage pedestal width	1600 mm
Side storage pedestal depth	600 mm
Seated knee clearance height under worktop	680 mm
Drawer internal usable height per drawer	150 mm
Open shelf compartment internal height	300 mm
Curved support leg base width at floor	350 mm
Cable grommet slot length	300 mm
CPU storage compartment internal width	300 mm
Storage pedestal plinth height	50 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Total product net weight	135 kg
Main worktop uniform static load capacity	120 kg
Recommended user weight for desk use	150 kg
Suggested daily usage duty cycle	10 years
Surface abrasion resistance rating	2000 cycles
Standard color option count	2
Drawer slide load rating per pair	35 kg
Drawer slide durability	50000 cycles
Hinge durability for storage door	80000 cycles
Cable grommet cable capacity	12 cables

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Main worktop substrate	25mm thick E1 grade medium density fiberboard
Main worktop surface	Walnut wood grain melamine veneer with matte anti-scratch coating
Storage pedestal outer panels and structural supports	25mm thick E1 grade MDF with taupe matte lacquer finish
Drawer fronts and storage door panel	18mm thick MDF with matching walnut wood grain veneer
Drawer slides	Cold-rolled steel 3-section full-extension ball bearing slides
Drawer lock	Zinc alloy keyed cam lock
Internal shelf panels	18mm thick MDF with matching taupe matte finish
Cable grommet trim	Brushed ABS plastic with brushed silver finish
Desk base leveler feet	Nylon adjustable height glides
Curved support leg	Molded MDF with taupe matte lacquer finish, reinforced internal steel frame
Edge banding	2mm thick PVC edge banding with color-matched finish on all exposed panel edges
Base plinth trim	ABS plastic taupe finish kickplate along the bottom edge of the storage pedestal

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Integrated cable management	Elongated recessed cable grommet on rear worktop routes monitor, power and data cables below the desk surface to eliminate desktop cord clutter
Lockable drawer storage	Upper keyed cam lock secures both stacked 2 drawers to store confidential documents and personal office items, drawers extend fully via ball bearing slides for full access
Closed door storage cabinet	Single full-height hinged door conceals a 2-tier adjustable shelf for storing larger office supplies, files or personal items
Open shelving storage	Two adjacent open compartments without doors: one with 1 fixed middle shelf for books and accessories, one full-height open compartment sized for desktop computer CPU towers
Ergonomic seated access	Curved support leg creates unobstructed knee clearance for seated users at the main work position, no cross-braces blocking leg movement
Floor leveling adjustment	Adjustable nylon glides at the base of the storage pedestal and support leg adjust up to 10mm to compensate for uneven floor surfaces, eliminating desk wobble
Rounded soft edge design	All worktop edges have a 50mm radius rounded profile to eliminate sharp corners and reduce impact injury risk for users moving around the desk
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons	3
Largest shipping carton dimensions	2450 x 950 x 120 mm
Total shipping gross weight	155 kg
Total shipping volume (CBM)	0.62
On-site assembly time	60 minutes
40ft HQ container loading quantity	105 units
Packaging protection	5mm thick corrugated carton with 20mm EPE foam edge wrapping and corner protectors
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private office	Suitable for manager and director level private offices, providing sufficient work surface for document review, computer work and small in-person meetings
Corporate open-plan senior workstations	Can be used for senior staff open plan work zones, with integrated storage to eliminate the need for separate filing cabinets and save floor space
Home office luxury workspaces	Suitable for large home office setups, with a premium two-tone finish that matches residential interior design while providing commercial-grade storage and work surface
Small in-desk meeting use	Main worktop can accommodate 2 additional visitors across the desk for short, informal discussions without requiring a separate meeting table
Cable-heavy tech work setups	Integrated cable management and dedicated CPU storage compartment support multi-monitor, docking station and desktop computer setups without cabling clutter

STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 527-1:2011 Office furniture - Work tables and desks - Part 1: Dimensions	Applicable standards and test results require confirmation
EN 527-2:2019 Office furniture - Work tables and desks - Part 2: Mechanical safety requirements	Applicable European standard for structural stability, edge safety and load bearing performance of office desks
EN 13986:2004 Wood-based panels for use in construction - Characteristics, evaluation of conformity and marking	Applicable standard for wood-based panel formaldehyde emission and structural performance for EU market sales
EN 15372:2008 Furniture - Strength, durability and safety - Requirements for non-domestic storage furniture	Applicable standard for integrated storage pedestal load and durability performance

STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.

STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017 General technical requirements for wooden furniture	Applicable standard for wooden desk dimensional stability, panel strength and finish durability for products sold in the Chinese market
GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels	Applicable standard requiring E1 grade formaldehyde emission ≤0.124mg/m³ for all wood-based panel components used in the desk
GB/T 10357.1-2013 Test of mechanical properties of furniture - Strength and durability of tables	Applicable test standard for verifying desk static load, impact resistance and long-term durability under office use conditions
GB/T 4897.3-2003 Particleboard - Part 3: Requirements for furniture use	Applicable standard for wood-based panel structural performance for furniture-grade substrates

Standard Tender Description

This product must meet the following technical requirements:
1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable standard for wooden desk dimensional stability, panel strength and finish durability for products sold in the Chinese market;
2. GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels: Applicable standard requiring E1 grade formaldehyde emission ≤0.124mg/m³ for all wood-based panel components used in the desk;
3. GB/T 10357.1-2013 Test of mechanical properties of furniture - Strength and durability of tables: Applicable test standard for verifying desk static load, impact resistance and long-term durability under office use conditions;
4. GB/T 4897.3-2003 Particleboard - Part 3: Requirements for furniture use: Applicable standard for wood-based panel structural performance for furniture-grade substrates;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
