PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1800 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	118 kg
Distributed desktop load	80 kg
Pedestal top load	45 kg
Single drawer or shelf load	15 kg
Metal leg static load	120 kg per leg
Recommended user size	1 person
Floor pressure protection	4 contact points
Recommended warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate	25 mm engineered-wood board with matte gray laminate or painted surface
Edge treatment	Dark wood-grain laminated edge banding with fine striped veneer-like appearance
Storage cabinet	Matte gray engineered-wood panels with sealed exposed edges
Support legs	Chrome-plated tubular steel legs with polished finish and splayed geometry
Modesty panel	Gray panel body framed with dark wood-grain trim matching the desktop edge
Cable port	Black ABS or zinc-alloy oval grommet with sliding cover

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work layout	Primary desk and right return provide separate computer work, writing, and meeting zones for one executive user
Cable management	240 x 90 mm oval grommet routes laptop and monitor cables from the desktop toward the under-desk service bay
Privacy screening	Suspended angled modesty panel blocks front under-desk exposure while retaining knee clearance
Storage and equipment support	Right pedestal combines enclosed cabinet volume with an adjacent open CPU bay for office equipment

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits private manager and director offices where laptop work, document review, and short face-to-face meetings occur at one station
Premium administrative workspace	Fits high-end reception-back offices and corporate suites needing concealed storage, cable control, and a polished visitor-facing appearance

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety and strength	EN 527applies to safety, structural requirements, and dimensional suitability for office desks
Office desk mechanical test methods	EN 527applies to static load, durability, and stability verification of the desk structure
Office storage safety	EN 14073applies if the pedestal storage unit is separately specified for strength and stability
Formaldehyde emissions	EN 13986 applies to wood-based panels when European-market emission documentation is required

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.5 Desk and Table Products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Furniture dimensional coordination	GB/T 3326 applies to desk dimensional measurement and clearance verification during incoming inspection
Wood-based furniture quality	GB/T 3324 applies to panel furniture tolerances, edge sealing, surface quality, and assembly checks
Formaldehyde emission	GB 18580 applies to verification of formaldehyde emission from wood-based panel components
Furniture mechanical safety	GB/T 10357.1 applies to table static-load and strength testing where supplier test data are required

Standardized tender description text

This product must meet the following technical requirements:
1. Furniture dimensional coordination: GB/T 3326 applies to desk dimensional measurement and clearance verification during incoming inspection;
2. Wood-based furniture quality: GB/T 3324 applies to panel furniture tolerances, edge sealing, surface quality, and assembly checks;
3. Formaldehyde emission: GB 18580 applies to verification of formaldehyde emission from wood-based panel components;
4. Furniture mechanical safety: GB/T 10357.1 applies to table static-load and strength testing where supplier test data are required;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-CRV-L2400-RP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-CRV-L2400-RP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-CRV-L2400-RPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

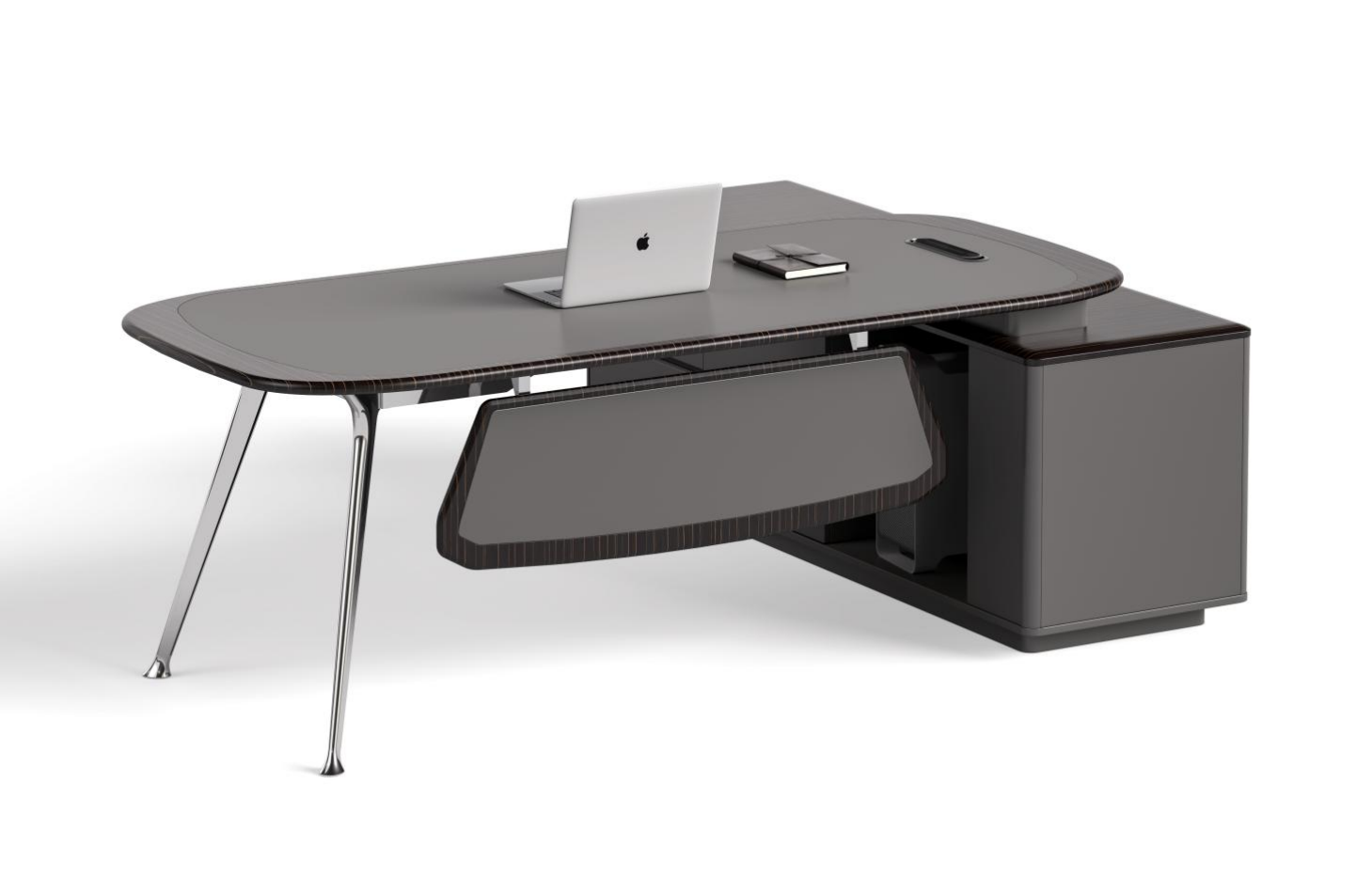

The Curved L-Shaped Executive Desk with Right Storage Pedestal offers a polished single-user workstation for settings that require a strong managerial presence alongside organized daily function. Its layout pairs a primary desk with a right-hand return, creating distinct areas for computer work, writing, document review, and short face-to-face meetings without expanding into multiple separate furniture pieces. Visually, the desk combines a matte gray engineered-wood work surface with dark wood-grain edge banding that has a fine striped, veneer-like appearance. The matching gray modesty panel is framed with coordinating dark trim, while the gray lacquered storage cabinet and polished chrome-plated, splayed tubular steel legs give the desk a modern executive profile. The suspended angled modesty panel shields the under-desk area from the front while preserving comfortable knee space for the user. Construction emphasizes a substantial desktop and stable support system. The worktop uses a 25 mm engineered-wood board finished in matte gray laminate or paint, with a finished top thickness of 50 mm including the built-up edge profile. Exposed storage panels are sealed, and the desk is supported at four contact points to help protect the floor. The angled chrome legs use an 80 mm main tubular section with a 2 mm metal wall. Each main seat position provides 680 mm of knee clearance height and 900 mm of width. Practical features are integrated into the executive layout. A black oval cable grommet with a sliding cover is available in ABS or zinc-alloy finish and routes monitor and laptop cables to the under-desk service area. The stated cable opening is 80 mm in diameter, with a cable tray depth of 120 mm, helping keep the work surface uncluttered. The right pedestal includes an enclosed cabinet for concealed storage and an adjacent open bay suited to a CPU or other office equipment. This desk is appropriate for private manager or director offices, premium administrative workspaces, reception-back offices, and corporate suites where a refined visitor-facing appearance is important. It supports one executive user and suits environments blending focused technology work, paperwork, and brief in-person discussions. Procurement teams should plan for a substantial office installation: the net weight is 118 kg, while packaged reference details note a gross weight of 180 kg per set and a packaging volume of 1 m3. Reference logistics list two cartons in one section and four cartons in another, so receiving requirements should be confirmed before ordering. Rated capacities include 80 kg distributed across the desktop, 45 kg on the pedestal top, 15 kg per drawer or shelf, and 120 kg static load per metal leg. A reference assembly time of 40 minutes per set should be treated as planning guidance. Access planning should account for the separately packed main top and return or pedestal components.

Curved L-Shaped Executive Desk with Right Storage Pedestal Specifications
