PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2200 × 1800 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	120 kg
Pedestal top working load	40 kg
Drawer or compartment load per storage zone	15 kg
Recommended user weight accommodation	120 kg
Seating capacity	1 user
Chair entry width	1100 mm
Product net weight	145 kg
Drawer slide cycle target	50000 cycles
Door or panel hinge cycle target	100000 cycles
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm wood-composite substrate with light oak melamine or laminate face and matching edge banding
Edge profile	PVC or ABS impact-resistant edge banding with rounded exposed corners
Leg frame	60 mm powder-coated steel tube with two visible splayed cylindrical legs and rear support rail
Modesty panel	18 mm MDF or particleboard panel with warm grey painted or wrapped surface
Storage pedestal	18 mm moisture-resistant wood-composite panels with light oak outer faces and dark interior backs
Display front	Smoked or tinted glass front framed by the cabinet edge, with an internal horizontal shelf

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Rectangular 240 x 120 mm worktop port routes monitor and laptop cables into the under-desk zone
Storage configuration	Right pedestal combines a glazed display niche, internal shelf and lower closed storage for files or personal items
Privacy screening	Suspended 450 mm high modesty panel conceals the user's legs while preserving side chair access
Seated workflow	1100 mm knee opening and 680 mm under-top clearance support a standard executive chair and lateral movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton dimensions	2280 x 980 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suits a manager or director office where computer work, document storage and a professional visitor impression occur at one station
Open-plan management cluster	Can be placed with the pedestal side defining a semi-private work zone while retaining an open front for collaboration

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXD-RR-2200-WG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXD-RR-2200-WG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXD-RR-2200-WGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

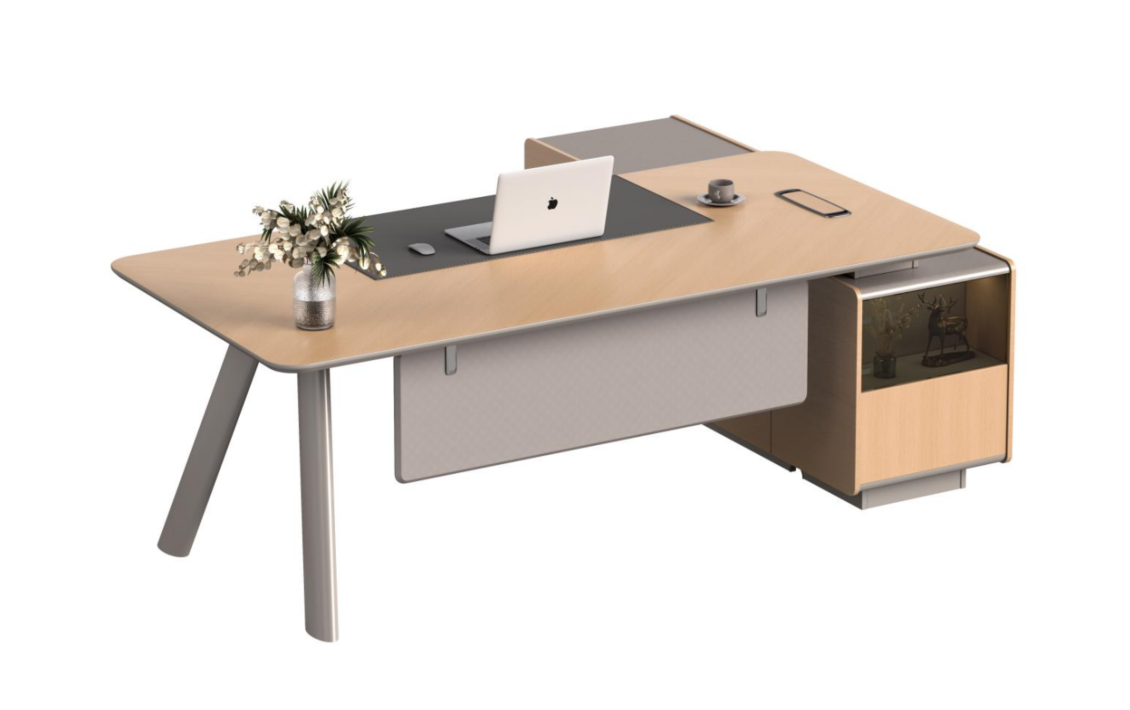

The Right-Return Executive Office Desk with Integrated Storage Pedestal is an unbranded executive workstation, model EXD-RR-2200-WG, designed for a professional management setting. Its layout combines a broad main work surface with a right-hand return and integrated pedestal, creating a structured L-shaped command point while keeping the front open for visitor interaction. Two visible splayed cylindrical steel legs and a rear support rail give the desk a modern silhouette, while the suspended warm grey modesty panel provides privacy without blocking side chair access. The worktop features a light oak wood-grain melamine or laminate face over a 25 mm wood-composite substrate, with matching edge banding and rounded exposed corners finished in impact-resistant PVC or ABS. The finished top thickness is 50 mm. The 18 mm modesty panel is made from MDF or particleboard with a painted or wrapped warm grey surface. Leg support is provided by a powder-coated steel frame, including 60 mm tube and an 80 mm main section with a 2 mm metal wall. The right pedestal is constructed from 18 mm moisture-resistant wood-composite panels, with light oak outer faces, dark interior backs, and a smoked or tinted glass display front framed by the cabinet edge. An internal horizontal shelf completes the glazed display niche, while lower closed storage accommodates files or personal items. Practical functions are integrated into the desk rather than added as separate accessories. A rectangular 240 by 120 mm worktop cable port directs monitor and laptop cables into the under-desk area, supported by an 80 mm diameter cable opening and a cable tray with 120 mm depth. The seating position provides 680 mm of under-top clearance, a 900 mm wide main knee space, and an 1100 mm chair entry width, supporting one user in a standard executive chair with room for lateral movement. The 450 mm high modesty panel conceals the user’s legs while preserving the open feel of the workstation. Rated capacity includes a 120 kg distributed static load on the desktop, a 40 kg working load on the pedestal top, and 15 kg per drawer or storage compartment. The recommended user weight accommodation is 120 kg, and the product net weight is 145 kg. This desk is well suited to a private manager or director office where computer work, document storage, and a polished visitor impression occur in one location. It can also be used in an open-plan management cluster, with the pedestal side defining a semi-private work zone while the open front supports collaboration. Procurement planning should account for assembly time of 40 minutes per set and careful handling of the packed components. Reference logistics list two cartons per set, with a largest carton measuring 2280 by 980 by 120 mm; alternate packaging information records four cartons, 180 kg packaged gross weight, and 1 cubic meter of packaging volume per set.

Right-Return Executive Office Desk with Integrated Storage Pedestal Specifications
