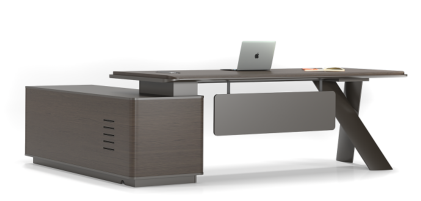

Product supplierL-shaped Executive Office Desk with Left Side Storage Pedestal, 18mm thick MDF or particleboard core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1800 × 750 mm | |
|---|---|---|
| Main work surface depth | 800 mm | |
| Side return work surface depth | 600 mm | |
| Seated knee clearance height | 650 mm | |
| Seated knee clearance width | 1400 mm | |
| Storage pedestal dimensions | 1800 mm (length) x 600 mm (depth) x 600 mm (height) | |
| Desktop thickness | 50 mm | |
| Right metal support leg diagonal length | 1100 mm | |
| Modesty panel dimensions | 1200 mm (width) x 350 mm (height) x 25 mm (thickness) | |
| Desktop overhang at front edge | 30 mm | |
| Desktop edge band thickness | 2 mm | |
| Right K-shaped steel support leg section | 60 x 40 mm rectangular hollow steel, 2.0 mm wall thickness | |
| Cable grommet inner diameter | 60 mm | |
| Finished Top Thickness | Approx. 30-50 mm | |
| Effective Knee Clearance | Approx. 620-680 mm high and 700-900 mm wide per main seat | |
| Leg / Support Section | Approx. 40-80 mm main section with 1.2-2.0 mm metal wall |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight range | 145 - 170 kg | |
|---|---|---|
| Static desktop uniform load capacity | 120 - 150 kg | |
| Drawer static load per unit | 25 - 30 kg | |
| Recommended maximum users | 1 person | |
| Desktop surface abrasion resistance reference | ≥2000 cycles (Taber CS-10, 1kg load) | |
| Cabinet door/drawer cycle life reference | ≥50000 open/close cycles | |
| Leveling adjustment range per foot | 0 - 15 mm | |
| Desktop surface abrasion resistance | ≥2000 cycles (Taber CS-10, 1kg load) | |
| Drawer slide cycle life | ≥50000 open/close cycles | |
| Hinge cycle life | ≥80000 open/close cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | 18mm thick MDF or particleboard core | |
|---|---|---|
| Desktop finish | Dark brown open-pore wood veneer with matte UV coating | |
| Storage cabinet panels | 18mm thick melamine or veneer-covered wood-based panel, with 2mm PVC edge banding | |
| Frame and support legs | 2.0mm thick cold-rolled steel with dark gray matte powder coat finish | |
| Modesty panel | 1.5mm thick steel with matching dark gray matte powder coat | |
| Pedestal base plinth | 1.2mm thick steel with dark powder coat, fitted with adjustable plastic leveling feet | |
| Drawer slides | Full extension ball-bearing steel slides, zinc plated finish | |
| Cabinet door hinges | Soft-close concealed steel hinges, nickel plated finish | |
| Edge trim details | Brushed dark metal trim on desktop and cabinet corner edges | |
| Frame and K-shaped support legs | 2.0mm wall thickness cold-rolled rectangular steel with dark gray matte powder coat finish | |
| Edge and corner trim | 0.8mm thick brushed dark gunmetal steel trim on desktop and cabinet corner edges | |
| Hardware fasteners | Zinc-plated steel screws, dowels and cam-lock connectors for knock-down assembly |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Left side pedestal includes 1 vertical file cabinet compartment + 2 stationery drawers + 1 open storage slot with ventilation grilles | |
|---|---|---|
| Cable management | Recessed cable grommet on desktop near return junction, with under-desk cable routing tray | |
| Work surface extension | Side return provides extended secondary work surface for document sorting or secondary display | |
| Modesty panel function | Fixed front modesty panel blocks leg visibility from front view, provides structural bracing for desktop | |
| Leveling adjustment | Adjustable feet on storage pedestal base allow compensation for uneven floor surfaces | |
| Soft close function | Drawers and cabinet doors fitted with soft-close mechanisms to prevent slamming | |
| Support structure stability | Right K-shaped angled steel leg provides 3-point support for the extended right desktop, reducing sag under load | |
| File storage compatibility | Vertical file drawer accommodates A4, letter and legal size hanging file folders via adjustable metal file rails | |
| Cable Management Capacity | Reference capacity 6-10 power/data cables; tray load approx. 5-10 kg | |
| Reference Reassembly Count | Main joints should support 3-5 controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping packages | 3 packages | |
|---|---|---|
| Reference carton dimensions | Package 1 (desktop): 2450 x 850 x 120 mm; Package 2 (storage cabinet): 1850 x 650 x 650 mm; Package 3 (metal parts): 1200 x 400 x 200 mm | |
| Reference total gross weight | 165 - 190 kg | |
| Reference total shipping volume (CBM) | 0.52 - 0.58 CBM | |
| Estimated assembly time | 60 - 90 minutes for 2 trained workers | |
| 20ft GP container loading quantity | 52 - 58 units | |
| 40ft HQ container loading quantity | 128 - 140 units | |
| Reference Package Count | 1 set / 1-2 cartons | |
| Reference Assembly Time | Approx. 15-40 minutes per set | |
| Reference Package Dimensions | Main top approx. 1900-2500 × 850-1050 × 180-350 mm; return/pedestal packed separately |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Suitable for corporate manager/executive private offices, provides sufficient work and storage space for daily office work and visitor | |
|---|---|---|
| Conference side work area | Can be used as a side work table in boardrooms for document preparation and presentation material placement | |
| High-end home office | Suitable for 10-15 sqm residential home office setups for senior professionals, provides large work surface for multiple monitors, design materials and locked document storage | |
| Reception manager desk | Appropriate for reception area manager stations, balances professional appearance and functional storage | |
| Recommended matching seating | Pair with mid-back or high-back ergonomic executive chairs with 5-star base, seat height 420-500mm to match desk height | |
| Recommended floor protection | Use transparent floor mat under chair area to prevent caster damage to flooring adjacent to desk | |
| Reception management station | Appropriate for corporate lobby reception manager stations, balances professional dark wood aesthetic with functional storage for visitor records and office supplies |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 Office furniture - Work tables and desks - Part 1: Dimensions | Applicable standards and test results require confirmation | |
|---|---|---|
| EN 527-2:2002+A1:2006 Office furniture - Work tables and desks - Part 2: Mechanical safety requirements | Applicable for structural strength, stability and mechanical safety acceptance | |
| EN 13986:2004+A1:2015 Wood-based panels for use in construction - Characteristics, evaluation of conformity and marking | Applicable for wood-based panel material performance acceptance |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | Applicable for wooden panel structural strength, dimensional tolerance and finish quality acceptance of this desk | |
|---|---|---|
| GB/T 3327-2016 Office desks and chairs | Applicable for desk structural stability, load bearing and safety performance acceptance | |
| GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels | Applicable for formaldehyde emission limit acceptance of wood-based panel components | |
| GB/T 4893.8-2013 Test of surface coatings for wooden furniture - Part 8: Determination of abrasion resistance | Applicable for desktop finish abrasion resistance performance acceptance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable for wooden panel structural strength, dimensional tolerance and finish quality acceptance of this desk; 2. GB/T 3327-2016 Office desks and chairs: Applicable for desk structural stability, load bearing and safety performance acceptance; 3. GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels: Applicable for formaldehyde emission limit acceptance of wood-based panel components; 4. GB/T 4893.8-2013 Test of surface coatings for wooden furniture - Part 8: Determination of abrasion resistance: Applicable for desktop finish abrasion resistance performance acceptance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
