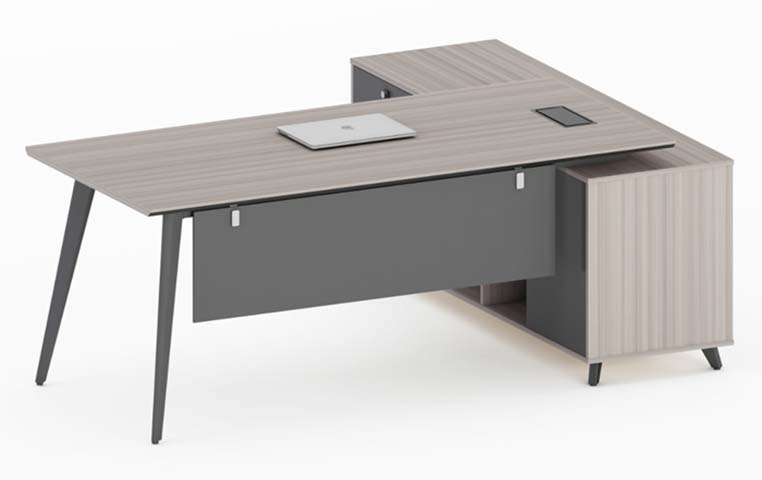

Two-Tone L-Shaped Executive Office Desk with Storage Return and Cable Management (model ED-L2000-LG-DG) is listed under Executive Office Desk for Boss/Executive, with overall dimensions of 2000 × 1800 × 750 mm and main material of Particle‑board (PB). Load capacity: 125 kg. Certifications: Modern,style,L-shaped,fixed-height,structure,two-tone,finish,integrated,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2000 x 1800 x 750 mm | |
|---|---|---|
| Main worktop thickness | 50 mm | |
| Edge band thickness | 2 mm | |
| Main work surface depth | 800 mm | |
| Side return width | 1200 mm | |
| Side return depth | 600 mm | |
| Seated knee clearance height | 600 mm | |
| Seated knee clearance width | 1200 mm | |
| Modesty panel height | 400 mm | |
| Cable grommet opening size | 80 mm | |
| Drawer interior height | 150 mm | |
| Open shelf clearance height | 250 mm | |
| Metal leg cross-section | 30 x 50 mm | |
| Desk leg floor contact pad diameter | 20 mm | |
| Desktop overhang on user side | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 125 kg | |
|---|---|---|
| Drawer slide load rating | 25 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Product net weight | 91 kg | |
| Recommended user weight capacity | 136 kg | |
| Surface abrasion resistance rating | 2000 cycles | |
| Warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop and cabinet panels | 18mm thick MDF core with light grey striped melamine finish | |
|---|---|---|
| Drawer fronts and modesty panel | 18mm thick particle board with dark grey matte melamine finish | |
| Desk legs and support feet | 1.5mm thick powder-coated dark grey steel, tapered angular design | |
| Drawer slides | Cold-rolled steel ball-bearing full-extension slides | |
| Cable grommet | ABS plastic flush-mount rectangular port | |
| Edge banding | 2mm thick PVC edge banding matching panel finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 1 front utility drawer, 1 lockable file drawer on return, 1 lower open storage shelf | |
|---|---|---|
| Cable management | Flush desktop cable grommet for routing power and data cords to under-desk space | |
| Knee space access | Open left-side seated knee bay with full-width modesty panel for privacy | |
| Drawer lock function | Keyed lock on side return file drawer for secure document storage |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Suitable for manager or director workspaces with storage for documents and devices | |
|---|---|---|
| Home office workspace | Fits residential dedicated offices with two-tone modern aesthetic and cable management |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables - Part 1: Dimensions, applicable to desktop height and clearance requirements | |
|---|---|---|
| EN 527-2:2016 | Office work tables - Part 2: Mechanical safety requirements, applicable to structural stability | |
| EN 1335-2:2018 | Office furniture - Office work chairs - Safety requirements, referenced for compatible seating clearance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products - Tests for durability and structural performance, recommended for load testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units - Tests for structural performance, applicable to drawer and shelf durability |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel and structural strength | |
|---|---|---|
| GB/T 3327-2019 | Performance test method for desks and tables, applicable to stability and load verification | |
| GB 18584-2001 | Limit of formaldehyde emission for wooden furniture, applicable to panel material safety |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and structural strength; 2. GB/T 3327-2019: Performance test method for desks and tables, applicable to stability and load verification; 3. GB 18584-2001: Limit of formaldehyde emission for wooden furniture, applicable to panel material safety; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
