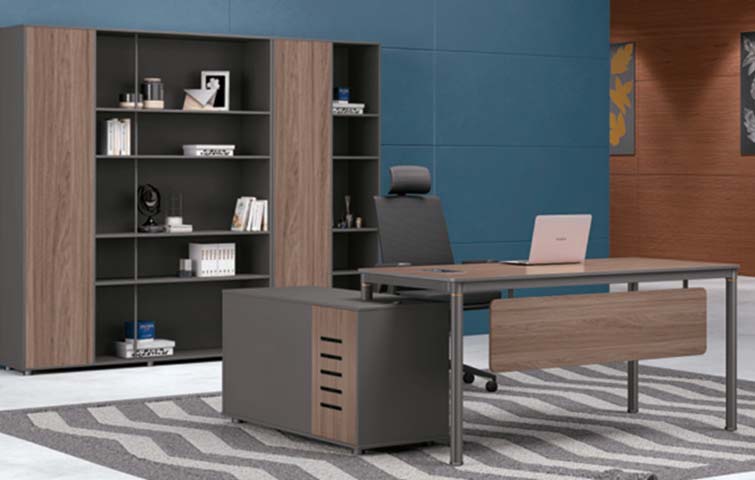

L-Shaped Two-Tone Walnut Grey Executive Desk with Fixed Side Return Cabinet (model EXEC-L2400-WG-ML) is listed under Executive Office Desk for Boss/Executive, with overall dimensions of 2400 × 1800 × 750 mm and main material of Particle‑board (PB). Load capacity: 150 kg. Certifications: Two-tone,walnut,and,grey,finish,Metal,leg,structure,Integrated,return,storage,Modesty,panel. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint (desk + return) | 2400 x 1800 x 750 mm | |
|---|---|---|
| Main worktop depth | 800 mm | |
| Return cabinet depth | 600 mm | |
| Return cabinet height | 725 mm | |
| Worktop thickness | 38 mm | |
| Modesty panel dimensions | 1600 x 400 x 16 mm | |
| Seated knee clearance height | 650 mm | |
| Seated knee clearance width | 1200 mm | |
| Leg tube section | 60 x 30 mm | |
| Cable grommet diameter | 80 mm | |
| Edge banding thickness | 2 mm | |
| Leveling foot adjustment range | 10 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide load rating | 45 kg per drawer | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 100000 cycles | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Product net weight | 100 kg | |
| Standard commercial warranty | 10 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate | E1-grade particleboard core with thermal-fused walnut laminate surface | |
|---|---|---|
| Return cabinet and modesty panel | 18mm thick engineered wood with two-tone walnut and matte grey laminate | |
| Support legs and frame | Powder-coated grey steel rectangular tubing | |
| Edge protection | 2mm thick shock-resistant ABS edge banding | |
| Cabinet door slats | Walnut laminate engineered wood with horizontal ventilation slots | |
| Leveling feet | Reinforced nylon with screw-adjustable steel insert |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Dual desktop cable grommets with under-desk cable tray access | |
|---|---|---|
| Return storage | Enclosed cabinet with adjustable interior shelving for files and CPU storage | |
| Modesty panel | Fixed full-width front panel blocks under-desk visibility from visitor side | |
| Floor leveling | Adjustable screw feet at all leg and cabinet base points |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Provides dedicated work and storage space for managers and directors | |
|---|---|---|
| Manager open office workstation | Functions as a semi-private work station with integrated storage for open plan management areas |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables – Part 1: Dimensions, applicable to seated work height and clearance | |
|---|---|---|
| EN 527-2:2016 | Office work tables – Part 2: Mechanical safety requirements and test methods | |
| EN 12521:2015 | Furniture – Strength, durability and safety for domestic and contract tables |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products – Tests for general office desk structural performance and durability | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units – Tests for office storage cabinet load and cycle performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural and finish quality | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for E1-grade board compliance | |
| GB/T 3327-2016 | Performance requirements for office desks, applicable to load and stability testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish quality; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for E1-grade board compliance; 3. GB/T 3327-2016: Performance requirements for office desks, applicable to load and stability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
