Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 2400 x 2000 x 760 mm | |
|---|---|---|
| Main worktop thickness | 50 mm | |
| Left return storage cabinet dimensions | 1800 x 500 x 650 mm | |
| Right mobile support pedestal dimensions | 600 x 500 x 600 mm | |
| Seated knee clearance height | 620 mm | |
| Seated knee clearance width | 1200 mm | |
| Drawer front panel thickness | 18 mm | |
| Corner cable grommet cutout dimensions | 300 x 80 mm | |
| Worktop front edge radius | 30 mm | |
| Base plinth height | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Product net weight | 185 kg | |
|---|---|---|
| Main worktop static load capacity | 120 kg | |
| Recommended user capacity | 1 person | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Surface abrasion resistance | 2000 revolutions | |
| Standard warranty period | 5 years | |
| Door hinge cycle rating | 80000 open/close cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main worktop core | 25mm thick E1 grade medium density fiberboard | |
|---|---|---|
| Worktop surface finish | Walnut wood grain melamine veneer with matte anti-scratch coating | |
| Cabinet exterior finish | Matte taupe two-component polyurethane paint | |
| Storage cabinet carcass | 18mm thick particleboard with matching edge banding | |
| Drawer slides | Cold-rolled steel three-quarter extension ball bearing slides | |
| Lock mechanisms | Zinc alloy keyed cam locks | |
| Integrated modesty panel | 15mm thick taupe painted panel | |
| Cable grommet | Brushed ABS plastic recessed grommet with brush seal | |
| Cabinet door handles | Antique bronze finish zinc alloy pull handles | |
| Cable management port | Brushed ABS plastic recessed port with silicone brush seal | |
| Floor glides | Nylon base adjustable steel glides | |
| Internal cabinet shelves | 18mm thick walnut grain melamine particleboard |
Adjustment / rotation / tilt / mobility / storage features
| Lockable drawer storage | 3 lockable drawers across left and right pedestals, secured with individual key locks to restrict access to confidential documents and personal items | |
|---|---|---|
| Left side return storage configuration | 1 lateral file drawer, 2 closed-door adjustable shelves, 1 open equipment bay with rear cable cutouts to store CPU, printer or office peripherals | |
| Integrated cable management | Rear worktop recessed cable grommet with dedicated cutouts in central support panel to route power, data and monitor cables from floor to work surface, eliminating loose cable clutter | |
| Left/right configuration flexibility | Left return cabinet can be repositioned to right side during assembly to suit different office layout orientations | |
| Adjustable internal shelves | 2 shelves in left cabinet behind double doors, adjustable in 32mm increments to accommodate different height office equipment and storage items | |
| Waterfall edge design | Rounded soft front edge on main worktop reduces forearm pressure during extended seated work, improving user comfort for long work sessions | |
| Floor leveler adjustment | Integrated adjustable glides under base plinth, 10mm vertical adjustment range to level desk on uneven office floors without wobble | |
| Integrated desktop power access | Recessed cable port supports installation of 2 AC power outlets and 2 USB charging ports for direct desktop device power connectivity | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 5 cartons | |
|---|---|---|
| Largest shipping carton dimensions | 2450 x 950 x 120 mm | |
| Total shipping gross weight | 210 kg | |
| Total shipping volume | 0.82 CBM | |
| On-site assembly time | 120 minutes | |
| 20ft GP container loading quantity | 32 units | |
| 40ft HQ container loading quantity | 78 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
Recommended spaces / users / usage modes
| Executive private office | Suitable for 25sqm private management and executive offices, provides ample work surface and dedicated storage to support daily administrative, meeting and decision-making tasks | |
|---|---|---|
| Corporate headquarters workspace | Designed for C-suite and senior management offices, premium two-tone finish complements modern corporate interior design schemes | |
| Conference meeting side table | Can be used as a presentation and document prep surface in large boardrooms, with integrated cable management to support meeting AV equipment | |
| Recommended seating pairing | Pairs with high-back executive office chairs with 520 mm adjustable seat height, aligns with standard 760mm worktop height for ergonomic seated posture | |
| Layout compatibility | Suitable for offices with clear wall space for the return cabinet, requires 100mm clearance behind desk for cable routing and wall access | |
| Storage suitability | Integrated locked storage supports secure filing of confidential corporate documents, eliminating need for separate standalone filing cabinets in the office | |
| Boardroom prep ancillary surface | Can be used as a presentation and document prep surface adjacent to large boardrooms, with integrated cable management to support meeting AV equipment |
European market access and chemical requirements
| EN 527-1:2011 | Office worktables - Part 1: Dimensions, applicable to verify worktop height, clearance dimensions and ergonomic reach requirements for office use | |
|---|---|---|
| EN 527-2:2016 | Office worktables - Part 2: Mechanical safety requirements, applicable to verify structural stability, load capacity and safety of moving parts | |
| EN 13986:2004+A1:2015 | Wood-based panels for construction, applicable to verify panel strength, dimensional stability and formaldehyde emission performance for commercial use |
US and Canada office-furniture standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable as acceptance standard for panel dimensions, edge quality, structural stability and finish adhesion | |
|---|---|---|
| GB/T 3327-2016 | Technical requirements for office desks, applicable for worktop height tolerance, load capacity, drawer operation strength and structural durability testing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to require E1 grade (≤0.124mg/m³) emission from all panel components for indoor air quality compliance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable as acceptance standard for panel dimensions, edge quality, structural stability and finish adhesion; 2. GB/T 3327-2016: Technical requirements for office desks, applicable for worktop height tolerance, load capacity, drawer operation strength and structural durability testing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to require E1 grade (≤0.124mg/m³) emission from all panel components for indoor air quality compliance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.

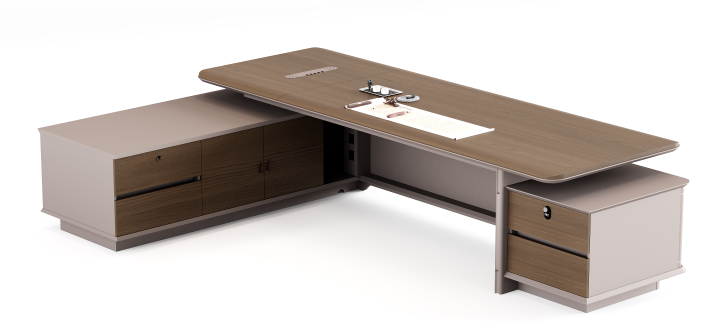

Open Export ToolThis left-return L-shaped executive office desk offers a streamlined, premium two-tone aesthetic suited to professional work environments, pairing warm walnut wood grain work surfaces with matte taupe storage cabinet finishes and antique bronze hardware accents. Its layout features a generous main worktop with a soft rounded waterfall front edge, anchored by a long left-side return cabinet and a compact right-side fixed support pedestal that tucks neatly under the worktop overhang. An open central knee bay provides ample leg room, paired with a full-width taupe modesty panel for seated user privacy and added structural rigidity, while a recessed rear cable grommet with a brush seal sits flush with the worktop to manage power and data cords without visual clutter. The desk is built with E1 grade wood-based panels across all components, supported by a sturdy steel frame and zinc-alloy hardware. The thick solid-core worktop uses a medium density fiberboard core topped with scratch-resistant walnut melamine veneer, while storage cabinet carcasses are constructed from sealed edge-banded particleboard, finished with durable two-component polyurethane paint on exterior surfaces. Cold-rolled steel ball bearing drawer slides, keyed alike zinc-alloy cam locks, and adjustable nylon-base steel floor glides support consistent long-term commercial use. Functionally, the desk supports single-user executive workflows with three lockable drawers across both storage units to secure confidential documents and personal items. The left return includes a lateral file drawer, closed-door storage with adjustable shelves, and an open equipment bay with rear cable cutouts for CPUs, printers, or peripherals, while the cable management system routes cords cleanly from floor to work surface, with capacity to support integrated AC and USB power accessories. The return can be repositioned to the right during assembly to accommodate varying office layouts, and adjustable glides stabilize the unit on uneven flooring. This desk is ideal for private executive offices in corporate headquarters, senior management workspaces, or as an ancillary document and AV prep surface adjacent to large boardrooms. It pairs naturally with high-back adjustable executive chairs to support ergonomic seated posture for extended work sessions. For procurement, note the desk ships flat-packed to reduce freight costs, with assembly completed efficiently by trained on-site technicians. Buyers should confirm available wall space and rear clearance for cable routing prior to installation, and verify that the integrated locking storage, commercial-grade wear ratings, and standard structure and hardware warranty align with long-term office furnishing requirements.
