PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 2250 × 760 mm
Overall footprint	3200 x 2250 x 760 mm
Main desktop thickness	30 mm
Main desktop working depth	1000 mm
Seated knee clearance height	660 mm
Knee clearance width at central seating position	800 mm
Left return cabinet length	1600 mm
Return cabinet depth	600 mm
PVC/ABS edge banding thickness	2 mm
Plinth base foot height	50 mm
Cable grommet diameter	60 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	140 kg
Drawer slide load rating per drawer	25 kg
Drawer slide cycle durability	50000 open/close cycles
Door hinge cycle durability	80000 open/close cycles
Surface scratch resistance rating	Class 2
Surface water and stain resistance	Sealed non-absorbent finish
Desk net weight	165 kg
Recommended maximum user load for desktop use	150 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface panel	E1-grade MDF/particleboard with dark wood grain melamine veneer
Side accent panels	E1-grade engineered wood with matte dark blue melamine finish
Edge banding	2mm thick PVC/ABS sealed edging on all exposed panel edges
Storage cabinet internal panels	18mm thick E1-grade engineered wood
Support frame between desktop and base	Powder-coated rectangular steel tube frame, 1.5mm wall thickness
Drawer hardware	Cold-rolled steel three-section full-extension ball bearing slides
Door hinges	Cold-rolled steel soft-close concealed hinges
Plinth base feet	High-density polyethylene adjustable glide feet
Cable management grommets	ABS plastic cable port caps
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed-height work surface	Non-adjustable 760mm working height optimized for standard seated office use
Left return integrated storage	Enclosed cabinet with door storage and drawer compartments for files and office supplies
Central cable management system	Recessed cable grommets on desktop routed to under-desk cable channel
Soft-close drawer operation	Drawers close with dampened motion to prevent slamming and reduce noise
Soft-close cabinet door operation	Cabinet doors close gently without impact for quiet office environment
Leveling adjustment	Adjustable plinth glide feet to compensate for uneven office flooring
Under-desk knee clearance	Unobstructed central open bay for ergonomic seated leg positioning
Modular knock-down assembly	Desk ships flat-packed for on-site assembly with cam-lock and bolt fasteners
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Designed for senior management/CEO private office spaces in corporate headquarters
Corporate open plan manager workspace	Suitable for department manager workstations in open-plan office layouts
Home office executive setup	Applicable for high-end residential home offices requiring professional work surface and storage
Paired with high-back executive chairs	Optimized for use with standard ergonomic high-back executive office chairs
Document and equipment storage use	Integrated side cabinet accommodates A4/letter size file folders, office equipment and supplies
Workstation for computer-based office work	Supports laptop, desktop monitor, desk lamp and other office equipment placement

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety and strength	EN 527:2011
Office work table surface durability	EN 15372:2016

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Wood-based panel formaldehyde emission	GB 18580E1 grade
Office desk structural strength	GB/T 3326
Surface coating adhesion performance	GB/T 4893.4

Standardized tender description text

This product must meet the following technical requirements:
1. Wood-based panel formaldehyde emission: GB 18580E1 grade;
2. Office desk structural strength: GB/T 3326;
3. Surface coating adhesion performance: GB/T 4893.4;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXD-L2200-DB-MB

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXD-L2200-DB-MB

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXD-L2200-DB-MBOpen Export Tool

Quick Actions

Post an RFQ

Product Description

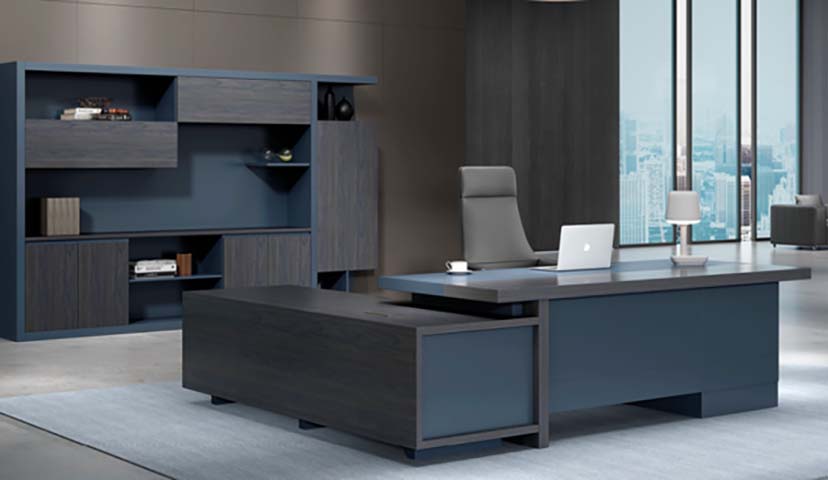

This L-shaped executive office desk features a refined two-tone aesthetic anchored by a dark wood grain work surface, contrasted by matte dark blue accent panels for a modern, polished look. Its layout pairs a generous main work surface with a left-side integrated return cabinet, creating a continuous, spacious workflow zone with a clear central open bay for unobstructed seated positioning. The desk sits on plinth-style base feet, with clean, linear lines that suit formal professional environments. The structure is built with E1-grade engineered wood panels across all components, with a 30mm thick main desktop supported by a powder-coated rectangular steel tube frame. All exposed panel edges are finished with sealed PVC/ABS edging, while internal storage cabinet panels use 18mm thick engineered wood. Hardware includes cold-rolled steel three-section full-extension ball bearing drawer slides, soft-close cold-rolled steel concealed door hinges, high-density polyethylene adjustable glide feet, and ABS plastic cable management grommets. The work surface features a sealed non-absorbent finish for water and stain resistance, with rated scratch-resistant performance. The fixed 760mm work height is optimized for standard seated office use, with open under-desk clearance for comfortable leg positioning. The integrated left return cabinet combines enclosed door storage and drawer compartments to hold A4 and letter-size file folders, office supplies, and small equipment. Recessed cable grommets route cords to an under-desk channel for tidy wiring, while soft-close hardware for drawers and doors reduces operational noise to support quiet workspaces. Adjustable glide feet compensate for uneven flooring to maintain a stable, level surface. The desk is suited for senior management private offices in corporate headquarters, department manager workstations in open-plan corporate layouts, and high-end residential home offices seeking a professional, fully featured workspace. It is optimized for pairing with standard ergonomic high-back executive chairs, and provides stable support for desktop computers, monitors, task lamps, and other regular office equipment. For procurement, note that each unit is shipped across multiple cartons, with a documented assembly time per set, and requires appropriate delivery access and on-site handling given its packaged gross weight. When planning space allocation, account for the desk’s full L-shaped footprint to ensure adequate clearance around the work zone, and confirm floor weight capacity as part of pre-installation checks.

Two-Tone L-Shaped Executive Office Desk with Left Side Return Cabinet Specifications
