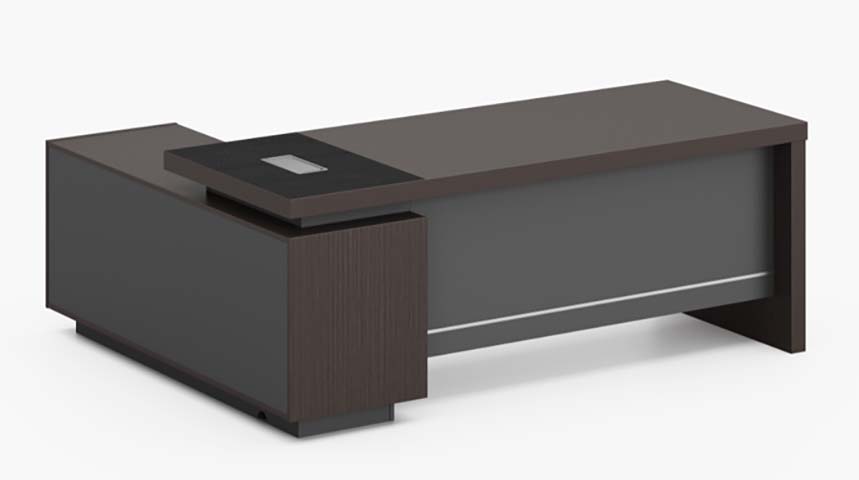

Two-Tone L-Shaped Fixed-Height Executive Desk with Left Credenza Return (model EXD-L2400-DWGY-01) is listed under Executive Office Desk for Boss/Executive, with overall dimensions of 2400 × 1800 × 750 mm and main material of Particle‑board (PB). Load capacity: 136 kg. Certifications: modern,commercial,style,fixed,height,L-shaped,configuration,integrated,cable,management,enclosed,left,storage,credenza. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 2400 x 1800 x 750 mm | |
|---|---|---|
| Main worktop thickness | 28 mm | |
| Main worktop width | 1800 mm | |
| Main worktop depth | 800 mm | |
| Left credenza return width | 1200 mm | |
| Left credenza return depth | 600 mm | |
| Under-desk knee clearance height | 660 mm | |
| Under-desk knee clearance width | 1200 mm | |
| Cable grommet inner diameter | 80 mm | |
| Modesty panel height | 450 mm | |
| Side support panel thickness | 50 mm | |
| Plinth base height | 50 mm | |
| Raised inset worktop section size | 600 x 400 mm | |
| Edge band thickness | 3 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop distributed static load capacity | 136 kg | |
|---|---|---|
| Drawer slide static load per drawer | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Adjustable floor glide adjustment range | 25 mm | |
| Hinge cycle rating for cabinet doors | 80000 cycles | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Recommended user weight capacity | 150 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate | E1 grade particleboard | |
|---|---|---|
| Vertical panel substrate | 18 mm thick MDF | |
| Edge detailing | 3 mm thick PVC edge banding | |
| Storage hardware | Cold-rolled steel ball-bearing drawer slides | |
| Cable port components | ABS plastic flip-top grommet | |
| Base and support structure | Engineered wood panel legs and plinth base |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height configuration | Fixed-height work surface at 750 mm | |
|---|---|---|
| Cable management | Integrated inset cable port on raised work section | |
| Storage layout | Left-side enclosed credenza with lockable drawers | |
| Leveling adjustment | Concealed adjustable glides at base corners |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Serves as primary workstation for senior management, with integrated storage and cable management | |
|---|---|---|
| Corporate manager workspace | Provides large work surface and adjacent storage for document and equipment access |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable for commercial use | |
|---|---|---|
| EN 527-2:2019 | Office worktables dimensional and safety test methods, applicable for clearance verification | |
| EN 13986:2004 | Wood-based panels for construction, applicable for substrate material performance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable for static load and durability testing | |
|---|---|---|
| ANSI/BIFMA M7.1-2020 | Standard test method for office furniture formaldehyde emissions |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable for structural integrity | |
|---|---|---|
| GB/T 3327-2022 | Performance test methods for office desks, applicable for load and stability verification | |
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for formaldehyde emission checks |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable for structural integrity; 2. GB/T 3327-2022: Performance test methods for office desks, applicable for load and stability verification; 3. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission checks; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
