PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1900 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	100 kg
Pedestal cabinet static load	60 kg
Single drawer dynamic load	25 kg
Recommended user weight at workstation	150 kg
Seating capacity	1 person
Net weight reference	145 kg
Top surface point load	40 kg
Drawer slide durability reference	50000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop surface	Dark brown wood-grain high-pressure laminate on 50 mm particleboard core, with matching edge banding
Storage pedestal exterior	Light gray painted or melamine-faced panel cabinet with dark brown kick trim
Modesty panel	Flat gray panel with smooth painted or melamine finish attached beneath the worktop
Support legs	Silver powder-coated or brushed steel angled legs with floor glides
Cabinet hardware	Lock cylinder, drawer pulls, hinges or slides in silver-gray metal finish
Rear cable cover	Rectangular silver-finish desk port with hinged or removable cover

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Left floor-standing pedestal provides enclosed storage with a visible side lock and drawer or door compartments
Cable management	Rear desktop port routes laptop and monitor cables into the under-desk area, with space for an optional horizontal tray
Privacy screening	Full-width gray modesty panel conceals the user's leg area and under-desk cables from visitors
Support and leveling	Pedestal plinth and angled metal legs share the load; exposed legs should use adjustable 10 mm-stroke glides

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total carton volume	1.35 m3
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits directors, partners, and senior managers needing a 2400 mm computer surface plus secure side storage in one workstation
Meeting-in-room arrangement	Accommodates one-to-one discussions across the desk while the left return holds documents, printer, or reference materials

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.5 Desk and Table Products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-L2400-WP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-L2400-WP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-L2400-WPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

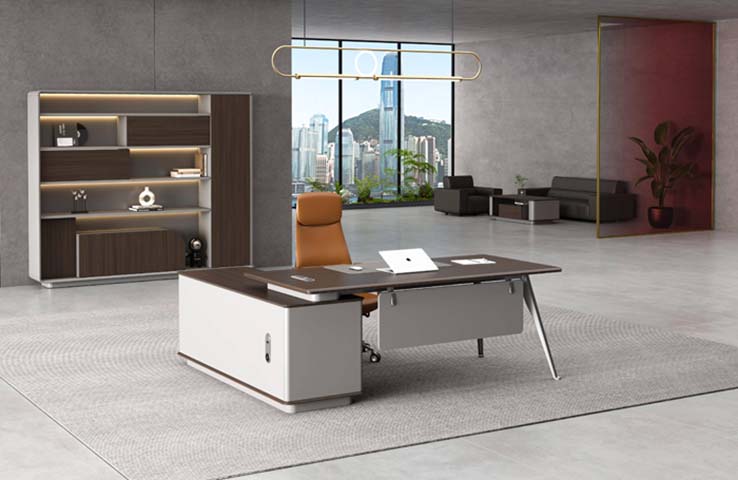

The Contemporary L-Shaped Executive Desk with Left Storage Pedestal combines a directional workspace layout with a contrasting modern material palette. Its dark brown wood-grain worktop forms the primary surface and left return, while the light gray floor-standing storage pedestal, gray modesty panel, and silver angled metal legs create a structured executive appearance. The L-shaped plan supports a single main seat with open knee space, while the return side provides a practical secondary zone for documents, equipment, or reference materials. The full-width modesty panel gives the workstation a clean front elevation and screens the under-desk area from visitors. Construction centers on a 50 mm worktop made with high-pressure laminate over a particleboard core and matching edge banding. The storage cabinet uses light gray painted or melamine-faced panels with dark brown kick trim, and the hardware, including the lock cylinder, pulls, hinges, or slides, is finished in silver-gray metal. Angled silver powder-coated or brushed steel legs include floor glides, while the pedestal plinth and metal supports share the desk load. A flat gray modesty panel is fitted beneath the worktop. Published load references include a distributed desktop static load of 100 kg, a top surface point load of 40 kg, a pedestal cabinet static load of 60 kg, and a 25 kg dynamic load for a single drawer. Functionally, the left pedestal offers enclosed drawer or door storage with a visible side lock for confidential office items. A rear rectangular cable port with a hinged or removable cover routes monitor and laptop cables below the desk, and the under-desk layout allows an optional horizontal cable tray. The stated cable opening is 80 mm in diameter, with a referenced tray depth of 120 mm. Adjustable glides with a 10 mm stroke help level the exposed legs on uneven floors. This desk is suited to executive offices, director suites, partner rooms, and senior management workstations where a 2400 mm computer surface and secure side storage are required in one coordinated unit. Its layout also supports one-to-one discussions across the desk, with the left return available for meeting documents or a compact printer. For procurement, confirm the selected finish details and storage compartment arrangement before order placement, as painted or melamine surfaces and leg finishes may vary by supply version. Plan for delivery and installation access around the large main top packaging; reference logistics show separate packaging, a net weight of 145 kg, and a 40-minute assembly time per set. Specifiers should also verify site power positions relative to the rear port, floor protection under the glides and pedestal, and whether the optional cable tray is required.

Contemporary L-Shaped Executive Desk with Left Storage Pedestal Specifications
