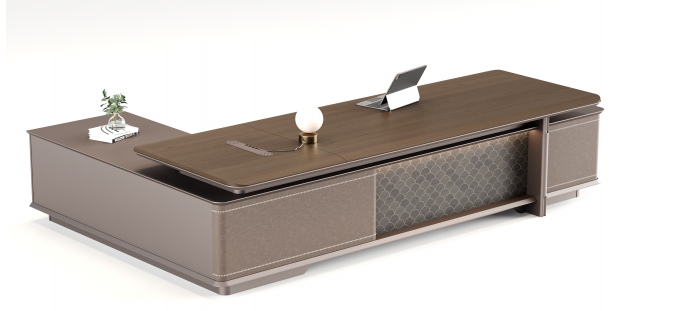

L-Shaped Executive Office Desk with Integrated Left Return Cabinet, Built-in Power Grommet and Decorative Accent Panel

Submitted	Field	Original	修改后参数	Note / Status
No corrections yet. Use the flag at the end of a row to report an issue.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions (main desk + return)	2800 x 2200 x 750 mm
Main work surface depth	900 mm
Return cabinet top depth	600 mm
Clear knee space height under main work surface	620 mm
Clear knee space width (central seating position)	800 mm
Desktop panel thickness	50 mm
Storage cabinet base height from floor	20 mm
Right-side pedestal cabinet width	450 mm
Built-in power grommet length	200 mm
Left return cabinet length	1400 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Static uniform load capacity for main desktop	150 kg
Suggested maximum user weight (desk edge load)	100 kg
Product net weight	180 kg
Ambient LED strip service life	30000 hours
Drawer slide static load rating	45 kg
Surface coating abrasion resistance	2000 cycles
Cabinet door hinge cycle rating	100000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Main desktop surface	Medium-density fiberboard core with walnut wood veneer finish, matte clear coating
Structural support frame and plinth	1.5mm thick cold-rolled steel with taupe powder-coat finish
Cabinet front panels	MDF substrate wrapped in taupe textured fabric-look PVC/leatherette, white contrast edge stitching
Central modesty accent panel	Tempered hardboard with embossed grey scallop geometric pattern, taupe border trim
Integrated power grommet	ABS plastic housing, embedded power/USB/data port module
Undercabinet ambient lighting	Low-voltage LED strip, warm white 3000K output
Drawer and cabinet hardware	Zinc-alloy soft-close drawer slides and cabinet hinges
Desktop edge treatment	Rounded bullnose edge profile, matched veneer edge banding
Main desktop substrate and finish	50mm thick medium-density fiberboard core with walnut wood veneer finish, matte UV-cured clear coating
Cabinet front and side panels	18mm MDF substrate wrapped in taupe textured leatherette, white contrast edge stitching along panel perimeters
Undermount cable management tray	0.8mm thick cold-rolled steel with black powder-coat finish, mounted 100mm below desktop surface
Storage cabinet interior	16mm thick melamine-faced MDF shelves and liners, taupe finish matching cabinet exterior

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Built-in desktop power module	Integrated 2-position AC power + 2 USB-A + 1 USB-C charging ports, pre-wired for under-desk cable management
Left return storage cabinet	Enclosed single-door cabinet with 1 adjustable interior shelf, provides concealed storage for documents and office supplies
Right-side pedestal storage	2 soft-close drawers sized for A4/letter hanging file folders, with full-extension slides for complete access to rear contents
Undermount cable management	Hidden under-desk cable tray routes power and data cords from grommet to floor outlets, eliminates tangled exposed cables
Ambient under-desk accent lighting	Touch-controlled LED strip mounted along lower support rail, illuminates floor area under desk for reduced eye strain in low-light offices
Plinth base support	Floor-contact low-profile steel plinth distributes weight evenly, eliminates need for separate support legs that impede chair movement
Desktop surface joint	Seamless joint between desktop sections, precision-aligned to prevent liquid seepage and uneven writing surface
Soft-close cabinet door operation	Concealed hinge with 110 degree opening angle, soft-close damping mechanism engages without manual latching, holds door in fully open position without drift
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping packages	5
Largest shipping carton dimensions	2350 x 980 x 180 mm
Total shipping gross weight	210 kg
Total shipping volume (CBM)	1.05
On-site assembly time (2 trained installers)	90 minutes
40ft HQ container loading quantity	52 units
Packaging protection	5-layer corrugated carton, EPS foam corner protection, PE film wrap
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private offices	Sized for senior management and C-suite workspaces, provides sufficient surface area for meetings, document review and personal office decor
Mid-sized manager offices	Fits offices 18sqm and larger, integrated storage eliminates need for separate filing cabinets to save floor space
Boardroom auxiliary workstations	Suitable as a presenter or meeting coordinator station outside main conference rooms, with power access for presentation devices
High-end residential home offices	Warm walnut veneer finish and stitched leatherette cabinet panels complement modern luxury residential interior design, while commercial-grade construction supports 8+ hours of daily full-time remote work
Recommended matching configuration	Pairs with high-back executive chairs up to 700mm wide, with 300mm under-desk clearance remaining for chair base movement
Mid-level manager offices	Fits 18sqm+ manager offices, integrated file and supply storage eliminates the need for separate freestanding filing cabinets, saving 0.5sqm of floor space

STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 527-1:2011	Applicable standards and test results require confirmation
EN 527-2:2002+A1:2019	Office work tables – Part 2: Mechanical safety requirements, applicable for structural stability, load capacity and edge safety verification
EN 13722:2004	Furniture – Strength, durability and stability requirements for storage units, applicable for cabinet and drawer structural performance

STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.

STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3327-2016	General technical requirements for office desks, applicable for structural stability, dimensional tolerance and finish durability verification
GB/T 3324-2017	General technical requirements for wooden furniture, applicable for wood substrate, veneer adhesion and surface finish quality checks
GB 18584-2001	Limit of harmful substances in wood furniture, applicable for formaldehyde emission verification of wood-based panel components

Standard Tender Description

This product must meet the following technical requirements:
1. GB/T 3327-2016: General technical requirements for office desks, applicable for structural stability, dimensional tolerance and finish durability verification;
2. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for wood substrate, veneer adhesion and surface finish quality checks;
3. GB 18584-2001: Limit of harmful substances in wood furniture, applicable for formaldehyde emission verification of wood-based panel components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
