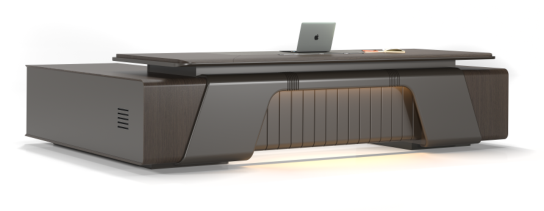

Product supplierPremium Electric Lift Height-Adjustable Executive Standing Desk, High-density MDF/fiberboard core, approx. 45mm thickness
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1100 × 750 mm | |
|---|---|---|
| Overall desk dimensions (W x D x H at sitting position) | Approx. 2400 x 1100 x 750 mm | |
| Desktop working surface thickness | Approx. 50 mm | |
| Electric lift travel range (sitting to standing height) | Approx. 650–1250 mm | |
| Central seated knee clearance width | Approx. 800 mm | |
| Central seated knee clearance minimum height | Approx. 620 mm | |
| Left enclosed storage cabinet dimensions (W x D) | Approx. 700 x 600 mm | |
| Right enclosed side support base dimensions (W x D) | Approx. 700 x 600 mm | |
| Lower base cabinet overall height | Approx. 600 mm | |
| Desktop overhang beyond base (front/back) | Approx. 50 mm front, 50 mm back | |
| Integrated LED light strip length (central recess) | Approx. 800 mm | |
| Laptop docking recess dimensions | Approx. 350 x 250 mm | |
| Overall desk dimensions (W x D x H) | Approx. 2400 x 1100 x 750 mm | |
| Finished Top Thickness | Approx. 30-50 mm | |
| Effective Knee Clearance | Approx. 620-680 mm high and 700-900 mm wide per main seat | |
| Leg / Support Section | Approx. 40-80 mm main section with 1.2-2.0 mm metal wall | |
| Cable Opening Size | Approx. 60-80 mm diameter; cable tray depth approx. 80-120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Estimated net product weight | Approx. 160–190 kg | |
|---|---|---|
| Maximum static desktop load capacity | Approx. 120–150 kg | |
| Lift motor maximum speed | Approx. 35–40 mm/second | |
| Lift mechanism operational noise level | Approx. <50 dB | |
| Recommended maximum user weight for standing use | Approx. 150 kg | |
| Lift cycle rated service life | Approx. ≥10,000 up/down cycles | |
| Ambient LED light rated lifespan | Approx. ≥30,000 hours | |
| Maximum static load per cabinet shelf | Approx. 25–30 kg | |
| Integrated LED ambient light rated lifespan | Approx. ≥30,000 hours | |
| Desk lateral stability load rating | Approx. ≥40 kg horizontal force applied at desktop edge without tipping |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core substrate | High-density MDF/fiberboard core, approx. 45mm thickness | |
|---|---|---|
| Desktop and side panel finish | Matte dark gray PU lacquer, dark brown wood veneer accent panels | |
| Lift mechanism internal structure | Dual-motor electric steel column lift system, 2mm thick powder-coated steel columns | |
| Central recess slatted panel | Matte lacquered MDF slats, 20mm wide slats with 10mm gaps | |
| Integrated ambient lighting | Low-voltage 3000K warm white LED strip, diffused polycarbonate cover | |
| Storage cabinet internal structure | 18mm thick melamine-lined particleboard shelves, soft-close hinges for access panels | |
| Left cabinet ventilation grille | Laser-cut matte steel grille, 1.5mm thick steel | |
| Floor contact glides | Adjustable 20mm diameter nylon glides, 10mm height adjustment range | |
| Desktop accessory inserts (wire management) | Brushed stainless steel cable grommets, 80mm diameter | |
| Desktop and outer panel finish | Matte dark gray PU lacquer coating, 0.15mm minimum dry film thickness, 6H scratch hardness; dark brown smoke oak veneer accent panels with matching matte lacquer seal | |
| Internal support frame | 1.5mm thick powder-coated square steel tube frame, epoxy-polyester matte finish, welded joints at cabinet connections | |
| Central recess slatted modesty panel | 18mm thick matte lacquered MDF slats, beveled front edges, mounted to steel internal cross-bracing |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Electric height adjustment | Dual-motor synchronized lift, adjustable from 650mm sitting height to 1250mm standing height, with 4 programmable memory presets | |
|---|---|---|
| Central under-desk ambient lighting | Integrated warm white LED strip with touch-controlled dimming (3 brightness levels), activated via desktop control panel | |
| Left enclosed storage compartment | Hinged side access panel with soft-close mechanism, internal adjustable shelf for CPU tower, documents or office supplies, integrated ventilation for electronic equipment | |
| Integrated cable management system | Desktop cable grommets, under-desk cable tray, routed channels through support columns to hide power and data cables | |
| Anti-collision lift safety feature | Built-in load sensor that stops and reverses lift movement by 20mm if obstacle is detected during height adjustment | |
| Recessed laptop docking area | Sunken non-slip desk section to secure laptop during height adjustment, with integrated cable pass-through to under-desk power | |
| Leveling adjustment | 4 adjustable floor glides (one under each base corner) to compensate for uneven floor surfaces, 10mm total adjustment travel | |
| Left enclosed CPU/storage compartment | Side-hinged access panel with soft-close mechanism (5-second soft close damping), 1 position-adjustable shelf (50mm height adjustment increments) for CPU tower, documents or office supplies, integrated side ventilation slots for electronic equipment heat dissipation | |
| Dual-side enclosed storage | Right-side enclosed cabinet with fixed internal shelf for office supplies and document storage, matching left cabinet exterior finish for symmetrical design, with soft-close access panel | |
| Leveling adjustment system | 4 adjustable floor glides (one under each base corner) to compensate for ±15mm floor unevenness, tool-free adjustment from top of base for easy installation | |
| Recessed equipment docking area | Sunken 10mm deep non-slip desk section near cable grommets to secure laptop/docking station during use, with integrated cable pass-through directly to under-desk cable tray | |
| Surface scratch and stain resistance | Matte PU lacquer finish resists common office stains (coffee, ink, water) and supports 6H pencil hardness scratch resistance, cleanable with neutral detergent without finish damage |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping packages | 3 packages | |
|---|---|---|
| Largest carton dimensions (desktop package) | Approx. 2500 x 1180 x 120 mm | |
| Total shipping gross weight | Approx. 190–230 kg | |
| Total shipping volume (CBM) | Approx. 0.55–0.65 CBM | |
| On-site assembly time | Approx. 2.5–3.5 person-hours (2 trained technicians) | |
| 20ft GP container loading capacity | Approx. 36–42 units | |
| 40ft HQ container loading capacity | Approx. 88–96 units | |
| Packaging protection standard | 50mm EPS edge protectors, 5-layer corrugated cartons, plastic stretch wrap for base units | |
| Reference Package Count | 1 set / 1-2 cartons | |
| Reference Assembly Time | Approx. 15-40 minutes per set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Designed for C-suite/manager private offices, provides ergonomic sit-stand working positions and integrated storage to keep workspace uncluttered | |
|---|---|---|
| Open-plan senior workstation | Suitable for high-grade open-plan management workstations, low-noise lift and ambient lighting do not disrupt adjacent workspaces | |
| High-end meeting room presentation desk | Can be used as a main presentation desk in boardrooms, height adjustment allows presenters to stand during presentations while seated participants use it at standard height | |
| Luxury home office | Suitable for premium home office installations, enclosed storage and ambient lighting blend with high-end residential interior design | |
| High-end boardroom main desk | Can be used as the main presiding desk in luxury boardrooms, wide 2400mm work surface supports presentation materials, conference phone and multiple monitors, symmetric design matches formal boardroom aesthetics | |
| Recommended matching chair | Pairs with high-back executive ergonomic chairs with 420–480mm adjustable seat height to match both sitting and standing desk heights | |
| Open-plan senior management workstation | Suitable for grade-A office open-plan management zones, enclosed cable management and soft-close hardware reduce operational noise to avoid disrupting adjacent workspaces | |
| Executive reception meeting area | Can be deployed as a meeting desk in VIP executive reception areas, provides sufficient knee clearance for 2 seated guests across from the host, refined finish supports brand image presentation |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applies to European standard for office work tables, including dimensional requirements, safety and structural stability, recommended for export market compliance | |
|---|---|---|
| EN 527-2:2016 | Applies to mechanical performance requirements for office desks, including static load, durability and impact resistance testing | |
| EN 60335-2-117:2019 | Applies to safety requirements for motor-operated height-adjustable furniture, covering electric lift system safety for commercial use | |
| EN 62471:2008 | Applies to photobiological safety of integrated LED lighting, ensuring no blue light hazard for continuous office use |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 Clause 7 | Covers height-adjustment mechanism cycle testing, requiring 10,000 full travel cycles without structural failure for commercial-grade desks, recommended as minimum acceptance threshold |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3326-2016 | Applies to desk dimensions, tolerances and stability testing for office work desks, recommended for incoming inspection of overall size and static stability | |
|---|---|---|
| GB/T 24821-2009 | Applies to performance requirements for office tables, including desktop load capacity, impact resistance and structural durability testing | |
| GB/T 35607-2017 | Applies to green product evaluation for furniture, recommended as acceptance criterion for formaldehyde and VOC emissions from wood-based panels | |
| GB 5226.1-2019 | Applies to electrical safety requirements for electric height-adjustable furniture, including insulation, grounding and overcurrent protection for lift motors and LED lighting | |
| GB 7000.204-2008 | Applies to safety requirements for furniture-integrated lighting systems, including insulation, low-voltage power supply and overcurrent protection for ambient LED strips |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applies to desk dimensions, tolerances and stability testing for office work desks, recommended for incoming inspection of overall size and static stability; 2. GB/T 24821-2009: Applies to performance requirements for office tables, including desktop load capacity, impact resistance and structural durability testing; 3. GB/T 35607-2017: Applies to green product evaluation for furniture, recommended as acceptance criterion for formaldehyde and VOC emissions from wood-based panels; 4. GB 5226.1-2019: Applies to electrical safety requirements for electric height-adjustable furniture, including insulation, grounding and overcurrent protection for lift motors and LED lighting; 5. GB 7000.204-2008: Applies to safety requirements for furniture-integrated lighting systems, including insulation, low-voltage power supply and overcurrent protection for ambient LED strips; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
