L-Shaped Executive Desk with Lockable Side Storage Cabinet (model ED-L2000X800-CAB1600X400) is listed under Executive Office Desk for Boss/Executive. Dimensions: 2000 × 800 × 750 mm. Materials: 25 mm wood-grain laminated panel with sealed edge banding, visible as the brown desktop and return top. Load capacity: 100 kg. Product Features: L-shaped,desk,side-return,storage,lockable,cabinet,cable,grommet,metal,leg,frame,wood-look,laminate. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | ED-L2000X800-CAB1600X400 |

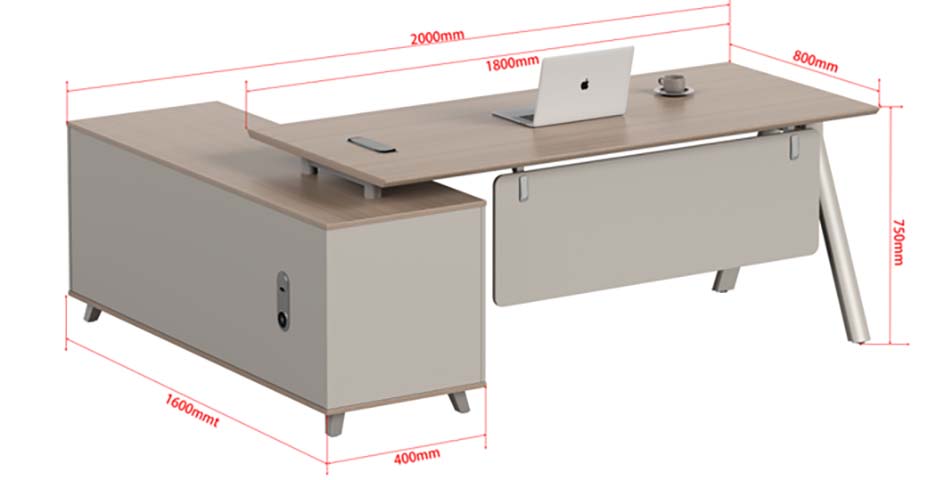

| Overall dimensions (W × D × H) | 2000 × 800 × 750 mm | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Main desktop distributed static load | 100 kg |
| Side cabinet top distributed static load | 60 kg | Drawer or shelf per-level load | 25 kg |
| Net product weight | 115 kg | Recommended seated user capacity | 1 person |
| Desktop vertical deflection limit | 3 mm/m | Drawer slide operating cycles | 50000 cycles |
| Door and drawer lock retention | 1 lock set | Floor loading footprint | 1.60 m2 |
| Top Static Load Reference | 150 kg uniformly distributed | Work surface | 25 mm wood-grain laminated panel with sealed edge banding, visible as the brown desktop and return top |
| Storage cabinet panels | 18 mm light grey melamine-faced particleboard or MDF carcass with matching edge banding | Modesty panel | 18 mm light grey laminate privacy panel fixed beneath the main desktop with discreet metal brackets |
| Support legs | 50 mm cylindrical powder-coated steel tube with angled front and rear supports | Cable port | Rectangular black plastic grommet with brush or hinged cover set into the desktop |
| Cabinet hardware | Metal cam-and-lock cabinet fittings, one keyed barrel lock and four small tapered support feet | L-shaped work layout | Main 1800 mm desk joins a 1600 mm side return, creating a primary task zone and adjacent storage or document surface |
| Cable management | One 160 x 80 mm desktop grommet routes monitor and laptop cables below the work surface; supplier confirmation is required for any lower tray | Storage security | Central side cabinet includes one keyed barrel lock on the outer face for securing drawers or cabinet doors |
| Seated privacy and leg screening | A fixed 450 mm deep modesty panel shields the rear knee area while leaving side access for the user's legs | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Executive or management office | Suitable for a private manager office because the 1800 mm task surface supports a laptop, monitor and documents while the return provides secure storage | Administrative or supervisory workstation | Suitable for daily computer work, filing and printer placement where a single user needs a knee bay plus a 1600 mm side storage surface |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2000 × 800 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Main desktop distributed static load | 100 kg | |
|---|---|---|
| Side cabinet top distributed static load | 60 kg | |
| Drawer or shelf per-level load | 25 kg | |
| Net product weight | 115 kg | |
| Recommended seated user capacity | 1 person | |
| Desktop vertical deflection limit | 3 mm/m | |
| Drawer slide operating cycles | 50000 cycles | |
| Door and drawer lock retention | 1 lock set | |
| Floor loading footprint | 1.60 m2 | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm wood-grain laminated panel with sealed edge banding, visible as the brown desktop and return top | |
|---|---|---|
| Storage cabinet panels | 18 mm light grey melamine-faced particleboard or MDF carcass with matching edge banding | |
| Modesty panel | 18 mm light grey laminate privacy panel fixed beneath the main desktop with discreet metal brackets | |
| Support legs | 50 mm cylindrical powder-coated steel tube with angled front and rear supports | |
| Cable port | Rectangular black plastic grommet with brush or hinged cover set into the desktop | |
| Cabinet hardware | Metal cam-and-lock cabinet fittings, one keyed barrel lock and four small tapered support feet |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| L-shaped work layout | Main 1800 mm desk joins a 1600 mm side return, creating a primary task zone and adjacent storage or document surface | |
|---|---|---|
| Cable management | One 160 x 80 mm desktop grommet routes monitor and laptop cables below the work surface; supplier confirmation is required for any lower tray | |
| Storage security | Central side cabinet includes one keyed barrel lock on the outer face for securing drawers or cabinet doors | |
| Seated privacy and leg screening | A fixed 450 mm deep modesty panel shields the rear knee area while leaving side access for the user's legs |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive or management office | Suitable for a private manager office because the 1800 mm task surface supports a laptop, monitor and documents while the return provides secure storage | |
|---|---|---|
| Administrative or supervisory workstation | Suitable for daily computer work, filing and printer placement where a single user needs a knee bay plus a 1600 mm side storage surface |
EU Market Access Requirements* EN Standards
| Office desk safety and strength | EN 527 | |
|---|---|---|
| Office desk mechanical test methods | EN 527 | |
| Formaldehyde panel emissions | EN 13986 | |
| Surface wear resistance | EN 14322 |
US and Canada office-furniture standards
| Desk and table structural performance | ANSI/BIFMA X5.5 | |
|---|---|---|
| Formaldehyde emissions from seating and panel components | ANSI/BIFMA e3 level |
Standards applicable to China-market projects
| Desktop panel safety and quality | GB/T 3324 | |
|---|---|---|
| Formaldehyde emission control | GB 18580 | |
| Office furniture mechanical safety | GB/T 38607 |
This product must meet the following technical requirements: 1. Desktop panel safety and quality: GB/T 3324; 2. Formaldehyde emission control: GB 18580; 3. Office furniture mechanical safety: GB/T 38607; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
