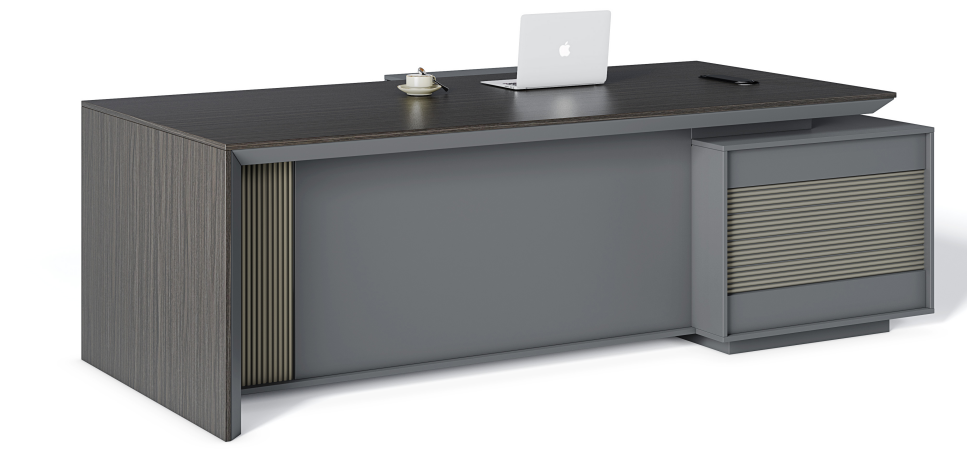

Product supplierL-Shaped Executive Office Desk with Right Side Storage Pedestal, 18mm thick E1 grade particle board
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1800 × 750 mm | |
|---|---|---|
| Main worktop thickness | 50 mm | |
| Main worktop depth | 900 mm | |
| Side return worktop depth | 600 mm | |
| Knee clearance height | 620 mm | |
| Knee clearance width (main position) | 1200 mm | |
| Pedestal dimensions | 1200 x 600 x 650 mm | |
| Decorative slat panel width (left modesty) | 150 mm | |
| Decorative slat panel height (pedestal front) | 350 mm | |
| Base plinth height | 50 mm | |
| Edge overhang (front worktop) | 30 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight range | 135 kg | |
|---|---|---|
| Worktop static load capacity | 150 kg | |
| Recommended user weight capacity | 150 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Recommended service life | 10 years | |
| Assembly time (2 persons) | 60 minutes | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 80000 cycles | |
| Finish stain resistance rating | 24 hours | |
| Assembly time (2 trained installers) | 60 minutes |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main worktop substrate | 18mm thick E1 grade particle board | |
|---|---|---|
| Worktop surface finish | Dark wood grain melamine laminate | |
| Modesty panel and side panels | 18mm thick MDF with matte grey polyurethane coating | |
| Left decorative accent panel | Vertical fluted MDF with bronze-tone finish | |
| Pedestal front accent panel | Horizontal fluted MDF with light taupe finish | |
| Left side panel finish | Vertical grey wood grain melamine laminate | |
| Hardware components | Cold-rolled steel drawer slides and connecting fittings | |
| Base plinth | 18mm thick MDF with matching matte grey finish | |
| Edge banding | 2mm thick PVC edge banding | |
| Modesty panel and structural side panels | 18mm thick MDF with matte dark grey polyurethane coating | |
| Left vertical decorative accent panel | Vertical fluted MDF with bronze-tone metallic finish | |
| Pedestal front decorative accent panel | Horizontal fluted MDF with light taupe finish |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 1 top utility drawer and 1 lower hanging file drawer in right pedestal | |
|---|---|---|
| Cable management: recessed desk port | 1 cable access port positioned at back center of main worktop | |
| Knee space access | Open fixed knee cavity between left panel and right pedestal | |
| Worktop use layout | Dual-zone work surface with main writing/monitor area and side return for secondary devices | |
| Modesty panel: fixed solid panel | Full-height grey modesty panel covers front knee area | |
| Leveling adjustment: base glides | 4 adjustable leveling glides on base plinth | |
| Installation type: freestanding | Freestanding construction with no wall attachment required | |
| Cable management: flush desktop port | 80mm diameter cable access port at rear center of main worktop, routes power and data cables below work surface to under-desk cable tray | |
| Work surface layout | Dual-zone L-shaped work surface with main front writing/monitor zone and right side return zone for secondary devices or document sorting | |
| Modesty panel coverage | Full-height fixed matte grey modesty panel covers full width of main seating knee area, blocks view of seated user's legs from front office areas | |
| Floor leveling adjustment | 4 adjustable threaded nylon glides on base plinth with 10mm vertical adjustment range, compensates for uneven office flooring | |
| Freestanding installation | Self-supporting construction with no wall attachment required, stabilized by full left side panel and integrated fixed pedestal |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of packages | 4 | |
|---|---|---|
| Largest carton dimensions | 2450 x 950 x 120 mm | |
| Total packaged gross weight | 155 kg | |
| Total shipment volume (CBM) | 0.52 | |
| Assembly time (2 trained installers) | 60 minutes | |
| 20ft GP container loading quantity | 36 units | |
| Packaging material | 5-layer corrugated carton with EPS foam corner protection | |
| Total shipment volume | 0.52 CBM | |
| Assembly time (2 trained commercial furniture installers) | 60 minutes | |
| Packaging specification | 5-layer corrugated carton with 50mm EPS foam corner and edge protection, stretch-wrapped for moisture resistance |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive offices | Suitable for director or manager private offices, provides formal professional appearance and sufficient work and storage space | |
|---|---|---|
| Open office management zones | Can be placed in semi-open management work areas, the modesty panel provides privacy without full wall enclosures | |
| Conference meeting ancillary use | Usable as a presenter workstation in boardrooms, provides space for meeting materials and presentation devices | |
| Small business owner offices | Ideal for small enterprise main offices, combines work surface and storage without requiring additional separate filing cabinets | |
| Recommended matching chair | Pairs with mid-back or high-back executive office chairs with 50mm seat height adjustment range to match 750mm worktop height | |
| Recommended clearance around desk | Minimum 1000mm clearance behind and to the side of the desk for chair movement and pedestrian access | |
| Semi-open management work zones | Can be installed in open-plan management clusters, the full-height modesty panel provides user privacy without full wall partitions | |
| Boardroom presenter workstation | Usable as a dedicated presenter workstation at the front of boardrooms, provides space for presentation devices, meeting materials and note-taking |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks, safety and strength requirements for commercial office desk structural performance | |
|---|---|---|
| EN 13722:2004 | Office furniture, storage units, requirements for pedestal drawer strength and durability | |
| EN 14322:2017 | Wood-based panels, melamine faced boards for interior use, surface performance requirements |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional tolerance, panel edge quality and structural stability inspection | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor office use | |
| GB/T 4897.3-2015 | Particle board for furniture use, applicable for worktop and structural panel substrate quality inspection | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable for worktop load and structural durability inspection |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional tolerance, panel edge quality and structural stability inspection; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor office use; 3. GB/T 4897.3-2015: Particle board for furniture use, applicable for worktop and structural panel substrate quality inspection; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable for worktop load and structural durability inspection; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
