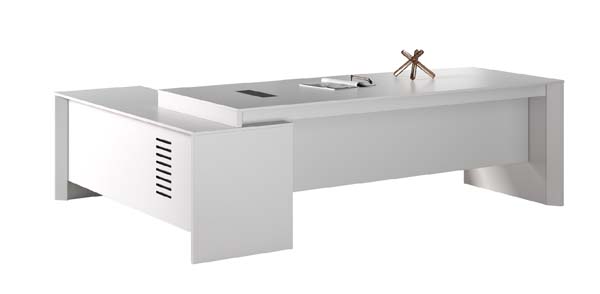

Product supplierLight Gray L-Shaped Executive Office Desk with Cable Management, E1 grade MFC (melamine faced chipboard) with matte light gray laminate
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2200 × 1800 × 760 mm | |
|---|---|---|
| Overall footprint (L x W x H) | 2200 x 1800 x 760 mm | |
| Main worktop depth | 800 mm | |
| Side return worktop depth | 600 mm | |
| Tabletop panel thickness | 25 mm | |
| Vertical support panel thickness | 18 mm | |
| Under-desk knee clearance height | 680 mm | |
| Under-desk knee clearance width (central) | 800 mm | |
| Side return modesty panel ventilation slot length | 120 mm each | |
| Desktop cable cutout inner dimension | 120 x 60 mm | |
| Edge banding thickness | 2 mm | |
| Floor clearance under support panels | 50 mm | |
| Modesty panel height (main desk) | 600 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop uniform static load capacity | 150 kg | |
|---|---|---|
| Product net weight | 135 kg | |
| Recommended maximum user weight for desk use | 136 kg | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Surface stain and burn resistance duration | 10 seconds | |
| Recommended number of seated users | 1 person | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop panels | E1 grade MFC (melamine faced chipboard) with matte light gray laminate | |
|---|---|---|
| Vertical support/leg panels | 18mm thick E1 grade engineered wood panel, same matte light gray finish | |
| Modesty panels (main and return) | 18mm thick engineered wood panel, matching matte light gray finish | |
| Edge banding | 2mm thick impact-resistant PVC edge band, color matched to panel finish | |
| Cable cutout grommet trim | Black ABS plastic recessed trim for main desktop cable pass-through | |
| Return panel vent slot inserts | Black ABS plastic horizontal slotted vents for cable ventilation | |
| Assembly hardware | Zinc-plated steel cam locks, confirmat screws, and floor glides | |
| Floor contact glides | High-density polyethylene adjustable glides, 10mm adjustment range | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Main desktop cable pass-through | Recessed rectangular cable cutout routes power/data cables from work surface to under-desk area | |
|---|---|---|
| Side return ventilation/cable slots | 8 horizontal slotted openings provide passive ventilation for under-desk equipment and secondary cable routing | |
| Open under-desk leg space | Central unobstructed knee cavity allows free chair movement and seated leg extension | |
| Dual work surface zoning | L-shaped layout separates main computer work zone on the long section from auxiliary document/accessory zone on left return | |
| Floor gap clearance design | 50mm open gap at base of support panels allows easy floor cleaning under desk edges | |
| Adjustable floor glides | Rotating PE glides compensate for uneven office floors, eliminating desk wobble | |
| Surface easy-clean functionality | Matte laminate surface resists common office stains and can be wiped clean with standard disinfectants | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping cartons | 2 | |
|---|---|---|
| Main desk panel carton dimensions | 2250 x 850 x 120 mm | |
| Return panel and hardware carton dimensions | 1850 x 650 x 110 mm | |
| Total shipping gross weight | 155 kg | |
| Total shipment volume (CBM) | 0.36 m³ | |
| Required assembly time | 60 minutes | |
| Indicative 40HQ container loading quantity | 180 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Serves as primary workstation for managers and C-suite staff, providing dedicated large work surface | |
|---|---|---|
| Home office for senior remote workers | Fits spacious home workspaces, supporting multiple monitors, documents, and meeting materials | |
| Small meeting office space | Supports 1:1 seated meetings across the desk, with return surface for document sharing | |
| Modern open plan manager workstation | Clean minimalist panel design matches contemporary office interior aesthetics without visual clutter | |
| Commercial co-working private office suite | Durable laminate surface withstands frequent multi-user turnover and regular cleaning |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to desk load capacity, stability, and dimensional ergonomics | |
|---|---|---|
| EN 14372:2004 | Office furniture surface resistance test methods, applicable to laminate abrasion, stain, and heat resistance verification | |
| EN 12521:2015 | Furniture strength, durability, and safety requirements for non-domestic seating-adjacent work surfaces |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable to static load, stability, durability cycle, and cable management safety requirements | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard, applicable to material content, low-emission, and end-of-life recyclability criteria |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel dimensions, edge treatment, and structural stability | |
|---|---|---|
| GB/T 17657-2013 | Test methods for wood-based furniture panels, applicable to surface wear, stain resistance, and formaldehyde emission verification | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, requires E1 grade (≤0.124mg/m³) for indoor office use |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel dimensions, edge treatment, and structural stability; 2. GB/T 17657-2013: Test methods for wood-based furniture panels, applicable to surface wear, stain resistance, and formaldehyde emission verification; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, requires E1 grade (≤0.124mg/m³) for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
