PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1830 × 1830 × 760 mm
Main desktop thickness	25 mm
Main work surface depth	700 mm
Return cabinet width	1200 mm
Return cabinet depth	450 mm
Seated knee clearance height	690 mm
Seated knee clearance width	1200 mm
Edge band thickness	2 mm
Support panel thickness	25 mm
Drawer interior dimensions	400 x 350 x 120 mm
Open shelf clearance height	300 mm
Cable grommet diameter	60 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	140 kg
Drawer slide cycle rating	50000 cycles
Desk net weight	90 kg
Recommended user weight capacity	150 kg
Laminate surface abrasion resistance	2000 cycles
Structural warranty	10 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop core	E1 grade particleboard core
Desktop surface	Dark walnut wood-grain melamine laminate
Accent panels	Light beige melamine laminate
Edge trim	Light-colored PVC edge banding
Structural support panels	25mm thick laminated engineered wood
Drawer lock hardware	Zinc alloy keyed cam lock
Drawer slides	Cold-rolled steel side-mount slides
Shelf panels	18mm thick laminated engineered wood
Surface finish property	Scratch, stain and spill resistant laminate
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	1 lockable utility drawer plus 2 open side storage shelves
Cable management	1 desktop cable grommet with under-desk cable routing space
Shelf adjustability	Open shelves support 3 height positions via pre-drilled holes
Drawer security	Keyed lock secures drawer contents for document and supply storage
Leveling adjustment	Integrated leveling feet at base of panel supports
Work surface orientation	Fixed L-shaped corner layout for extended work area
Cable tray load rating	5 kg
Edge protection	Impact-resistant PVC edging prevents chipping from daily contact
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Home office workspace	Suitable for remote workers needing extended work surface and document storage
Executive private office	Fits manager or supervisor workspaces with professional two-tone finish
Small business workstation	Provides integrated storage without requiring separate filing furniture
Recommended seating pairing	Pairs with standard height adjustable office chairs with 520 mm seat height

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to structural performance
EN 14372:2004	Office furniture storage units safety requirements, applicable to return cabinet
EN 120:1992	Wood-based panels formaldehyde content test method, applicable to emission verification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to load and durability testing
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable to drawer and shelf testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural and finish quality
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to E1 grade board selection
GB/T 4897.3-2003	Particleboard specifications for furniture use, applicable to core material acceptance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish quality;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1 grade board selection;
3. GB/T 4897.3-2003: Particleboard specifications for furniture use, applicable to core material acceptance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSH-WB-1830-PNL-1D2S

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSH-WB-1830-PNL-1D2S

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSH-WB-1830-PNL-1D2SOpen Export Tool

Quick Actions

Post an RFQ

Product Description

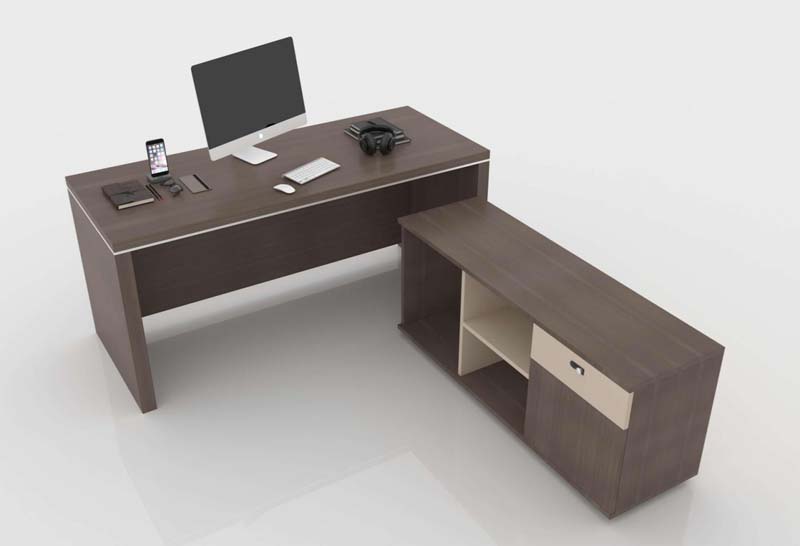

This two-tone L-shaped executive office desk delivers a structured, professional corner work solution defined by its contrasting dark walnut and light beige finish palette. Its fixed L-shaped layout forms a continuous extended work surface, with a thick main desktop and a matching side storage return that sits flush to create a cohesive, streamlined footprint suited to corner placement. Light-colored PVC edge trim lines all panel edges for a clean, finished look across the entire unit, while integrated panel supports create a stable base without obtrusive external framing. The desk is constructed with an E1 grade particleboard core, surfaced with scratch, stain and spill resistant melamine laminate: the main work area carries a dark walnut wood-grain finish, while accent panels on the storage return feature a soft light beige laminate. Structural support panels use thick laminated engineered wood, with cold-rolled steel side-mount slides for drawer operation and a zinc alloy keyed cam lock for secure storage. All open shelf panels use durable laminated engineered wood, and integrated leveling feet at the base of supports allow stable positioning on uneven flooring. The design balances open and secured storage to support daily work needs: one lockable utility drawer keeps sensitive documents and office supplies protected, while two adjacent open shelves offer three adjustable height positions via pre-drilled holes to accommodate items of varying sizes. A desktop cable grommet paired with under-desk cable routing space keeps power and data cords organized and out of sight, with sufficient routing space to support standard office tech setups. This desk works well across a range of professional and residential work settings. It fits executive private offices for managers and supervisors, lending a polished, put-together aesthetic that aligns with formal professional environments. It also functions effectively as a dedicated home office workspace for remote workers who require extended surface area and built-in document storage, and serves small business workstations by eliminating the need for separate standalone filing furniture. It pairs seamlessly with standard height-adjustable office chairs matched to its fixed work surface height. For procurement planning, note that each unit ships across multiple cartons, with a straightforward assembly process that requires a reasonable time investment per set. Buyers should account for the unit’s total packaged weight when coordinating delivery and installation, and can rely on the long structural warranty for long-term workspace planning. The fixed corner layout requires pre-measurement of intended placement space to ensure a proper fit, as the configuration is not reconfigurable to alternate layouts.

Two-Tone Dark Walnut Beige L-Shaped Executive Office Desk with Side Storage Return Specifications
