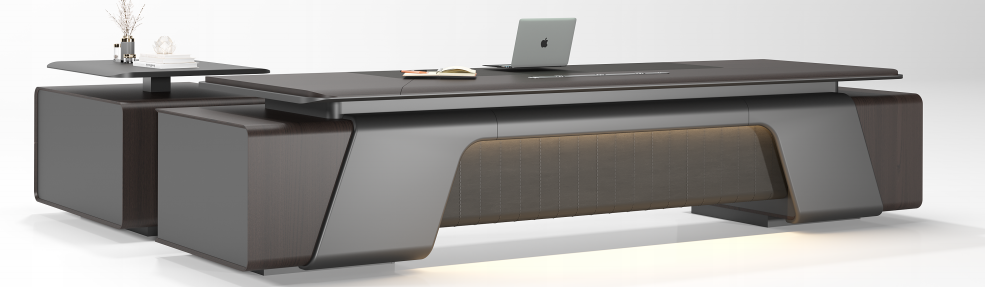

High-End L-Shaped Executive Office Desk with Left Side Return (model EXE-L-LUX-2400) is listed under Executive Office Desk for Boss/Executive. Dimensions: 2400 × 2000 × 750 mm. Materials: E1 grade (or equivalent low-VOC) medium-density fiberboard or particleboard, thickness approx. 50mm. Load capacity: Approx. 120-150 kg evenly distributed. Product Features: Modern,executive,style,L-shaped,layout,fixed,storage,pedestals,ambient,lighting,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | MINGHUI | Model | EXE-L-LUX-2400 |
| Overall dimensions (W × D × H) | 2400 × 2000 × 750 mm | Main desk work surface dimensions | Approx. 2400W x 900D mm |
| Left side return surface dimensions | Approx. 1200W x 600D mm | Work surface thickness | Approx. 50mm |
| Seated knee clearance height under main desk | Approx. 620mm | Seated knee clearance width (central opening) | Approx. 1600mm |
| Side return work surface height | Approx. 750mm | Leatherette modesty panel dimensions | Approx. 1400W x 350H mm |
| Floor clearance under base supports | Approx. 20mm | Pedestal cabinet depth (front to back) | Approx. 600mm |
| Main work surface thickness | Approx. 60mm | Edge band thickness (perimeter) | Approx. 2mm |
| Left return side table height (upper secondary surface) | Approx. 750mm | Finished Top Thickness | Approx. 30-50 mm |
| Effective Knee Clearance | Approx. 620-680 mm high and 700-900 mm wide per main seat | Leg / Support Section | Approx. 40-80 mm main section with 1.2-2.0 mm metal wall |
| Product net weight range | Approx. 180-220 kg | Desktop static load capacity | Approx. 120-150 kg evenly distributed |
| Drawer/Storage cabinet static load per compartment | Approx. 25-30 kg | Recommended user capacity | 1 primary executive user + 1 visitor at side return |
| Integrated LED lighting lifespan | Approx. 30,000-50,000 hours | Leveling adjustment range for feet | Approx. 0-10mm |
| Surface abrasion resistance (worktop) | ≥2000 abrasion cycles (reference for commercial grade laminate/veneer) | Drawer/Storage compartment static load per unit | Approx. 30-35 kg |
| Drawer slide durability rating | Approx. 50,000 open/close cycles | Cabinet hinge durability rating | Approx. 80,000 open/close cycles |
| Main worktop substrate | E1 grade (or equivalent low-VOC) medium-density fiberboard or particleboard, thickness approx. 50mm | Worktop and pedestal exterior finish | Dark walnut wood-grain veneer or high-pressure laminate, matte finish |
| Front support frame modesty panel trim | Matte dark grey powder-coated steel, 1.5-2.0mm thick plate with rounded curved edges | Central modesty panel upholstery | Dark grey PU leatherette (faux leather), vertical stitched seams with approx. 8mm seam pitch |
| Integrated ambient lighting | 3000K warm white flexible LED strip, recessed behind upholstered panel and under base | Storage cabinet interiors | Matching dark grey laminate interior, 18mm thick panel construction |
| Drawer slides | Soft-close full-extension ball bearing steel slides, 350mm length for standard office drawers | Leveling feet | Nylon base with steel threaded stem, 10mm adjustment range |
| Cable management grommets | Matte dark grey ABS plastic desk grommets, approx. 80mm diameter, with brush seals | Worktop writing surface inset | Approx. 5mm thick matte dark grey PU leatherette desk mat inset, flush-mounted in central work zone |
| Front support frame construction | Matte dark grey powder-coated carbon steel, 2.0-2.5mm thick formed plate with rounded chamfered edges | Integrated base feet | Nylon anti-scuff base pads bonded to bottom of pedestal frames, no visible adjustment threads |
| Cable management system | Recessed brush-sealed cable access slot centered on main worktop, internal cable routing channel behind modesty panel to floor, for power/data cord organization | Ambient lighting function | Dual warm-white LED light zones: backlit upholstered modesty panel for front visual accent, under-base glow for floor ambient lighting, with hidden on/off switch (likely located on desk underside or side panel) |
| Left pedestal storage configuration | Fixed side return support pedestal with combination of 2 drawers and 1 file compartment (for A4/letter size hanging files), soft-close operation | Right support structure | Enclosed fixed right support cabinet matching pedestal finish, no front access doors for clean visual design, structural support for desktop overhang |
| Desktop overhang support | Curved metal front frame supports extended desktop overhang at front edge, eliminating need for intrusive front legs that block leg movement | Assembly requirement | Knock-down (flat-pack) major components with cam-lock and bolt assembly, permanent factory-mounted LED lighting and trim pieces |
| Work surface usability | Rounded, beveled soft edge profile on all desktop perimeters to reduce contact pressure during extended work use | Work surface ergonomics | Fully rounded, beveled soft edge profile on all desktop perimeters, with 10mm radius to reduce forearm contact pressure during extended work use |
| Storage access design | Drawers and cabinet doors feature push-to-open release mechanism with no external handles, maintaining smooth unbroken exterior finish | Cable Management Capacity | Reference capacity 6-10 power/data cables; tray load approx. 5-10 kg |
| Reference Reassembly Count | Main joints should support 3-5 controlled assembly cycles | Number of packaging cartons | 4 cartons (main desktop, side return top, left pedestal cabinet, right support/frame/hardware) |
| Reference carton dimensions (per piece) | Main top: 2500 x 1000 x 150mm; Return top: 1300 x 700 x 120mm; Pedestals/frame: 2 pieces of 800 x 700 x 700mm | Reference total gross shipping weight | 210-260 kg |
| Reference total shipping volume (CBM) | Approx. 1.2-1.4 CBM | Indicative container loading capacity | Approx. 38-42 units per 40ft HQ container, 16-18 units per 20ft GP container |
| Estimated on-site assembly time | 2.5-3.5 hours for 2 trained installers with standard hand tools | Standard export packaging | 5-layer corrugated carton, EPE foam wrap on all finished surfaces, hard corner protectors on all edges, hardware kit separated in labeled bags, printed assembly manual included |
| Reference Package Count | 1 set / 1-2 cartons | Reference Assembly Time | Approx. 15-40 minutes per set |
| Reference Package Dimensions | Main top approx. 1900-2500 × 850-1050 × 180-350 mm; return/pedestal packed separately | Executive private office | Primary use case for corporate executive, senior manager or director private offices, providing large work area, integrated storage and premium aesthetic to match professional office interiors |
| Boutique professional firm offices | Suitable for law firms, financial advisory firms, design studios or consulting firms where premium client-facing office furniture is required | Home office (luxury residential) | Applicable for high-end residential home offices for users requiring commercial-grade desk performance with upscale visual design |
| Recommended matching furniture | Pair with high-back executive leather office chair (seat height 440-500mm), 2 visitor side chairs, and matching office filing cabinet from the same product line for visual consistency | Recommended minimum room size | Minimum room dimensions of 3.6m x 3.2m to accommodate desk, executive chair, and visitor seating without obstruction |
| C-suite executive private office | Primary use case for corporate CEO, CFO, COO or senior director private offices, providing large uncluttered work area, integrated storage and premium aesthetic to match high-end corporate office interiors | Boutique professional client-facing offices | Suitable for law firm partner offices, private wealth advisory suites, architecture/design firm principal offices where premium client-facing furniture is required for in-desk meetings |
| Recommended matching furniture configuration | Pair with high-back ergonomic executive leather office chair (seat height adjustment range 440-510mm), 2 low-profile visitor side chairs for the return, and matching 2/3/4-drawer lateral filing cabinet from the same product line for visual consistency | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 2000 × 750 mm | |
|---|---|---|
| Main desk work surface dimensions | Approx. 2400W x 900D mm | |
| Left side return surface dimensions | Approx. 1200W x 600D mm | |
| Work surface thickness | Approx. 50mm | |
| Seated knee clearance height under main desk | Approx. 620mm | |
| Seated knee clearance width (central opening) | Approx. 1600mm | |
| Side return work surface height | Approx. 750mm | |
| Leatherette modesty panel dimensions | Approx. 1400W x 350H mm | |
| Floor clearance under base supports | Approx. 20mm | |
| Pedestal cabinet depth (front to back) | Approx. 600mm | |
| Main work surface thickness | Approx. 60mm | |
| Edge band thickness (perimeter) | Approx. 2mm | |
| Left return side table height (upper secondary surface) | Approx. 750mm | |
| Finished Top Thickness | Approx. 30-50 mm | |
| Effective Knee Clearance | Approx. 620-680 mm high and 700-900 mm wide per main seat | |
| Leg / Support Section | Approx. 40-80 mm main section with 1.2-2.0 mm metal wall |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight range | Approx. 180-220 kg | |
|---|---|---|
| Desktop static load capacity | Approx. 120-150 kg evenly distributed | |
| Drawer/Storage cabinet static load per compartment | Approx. 25-30 kg | |
| Recommended user capacity | 1 primary executive user + 1 visitor at side return | |
| Integrated LED lighting lifespan | Approx. 30,000-50,000 hours | |
| Leveling adjustment range for feet | Approx. 0-10mm | |
| Surface abrasion resistance (worktop) | ≥2000 abrasion cycles (reference for commercial grade laminate/veneer) | |
| Drawer/Storage compartment static load per unit | Approx. 30-35 kg | |
| Drawer slide durability rating | Approx. 50,000 open/close cycles | |
| Cabinet hinge durability rating | Approx. 80,000 open/close cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main worktop substrate | E1 grade (or equivalent low-VOC) medium-density fiberboard or particleboard, thickness approx. 50mm | |
|---|---|---|
| Worktop and pedestal exterior finish | Dark walnut wood-grain veneer or high-pressure laminate, matte finish | |
| Front support frame modesty panel trim | Matte dark grey powder-coated steel, 1.5-2.0mm thick plate with rounded curved edges | |
| Central modesty panel upholstery | Dark grey PU leatherette (faux leather), vertical stitched seams with approx. 8mm seam pitch | |
| Integrated ambient lighting | 3000K warm white flexible LED strip, recessed behind upholstered panel and under base | |
| Storage cabinet interiors | Matching dark grey laminate interior, 18mm thick panel construction | |
| Drawer slides | Soft-close full-extension ball bearing steel slides, 350mm length for standard office drawers | |
| Leveling feet | Nylon base with steel threaded stem, 10mm adjustment range | |
| Cable management grommets | Matte dark grey ABS plastic desk grommets, approx. 80mm diameter, with brush seals | |
| Worktop writing surface inset | Approx. 5mm thick matte dark grey PU leatherette desk mat inset, flush-mounted in central work zone | |
| Front support frame construction | Matte dark grey powder-coated carbon steel, 2.0-2.5mm thick formed plate with rounded chamfered edges | |
| Integrated base feet | Nylon anti-scuff base pads bonded to bottom of pedestal frames, no visible adjustment threads |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Recessed brush-sealed cable access slot centered on main worktop, internal cable routing channel behind modesty panel to floor, for power/data cord organization | |
|---|---|---|
| Ambient lighting function | Dual warm-white LED light zones: backlit upholstered modesty panel for front visual accent, under-base glow for floor ambient lighting, with hidden on/off switch (likely located on desk underside or side panel) | |
| Left pedestal storage configuration | Fixed side return support pedestal with combination of 2 drawers and 1 file compartment (for A4/letter size hanging files), soft-close operation | |
| Right support structure | Enclosed fixed right support cabinet matching pedestal finish, no front access doors for clean visual design, structural support for desktop overhang | |
| Desktop overhang support | Curved metal front frame supports extended desktop overhang at front edge, eliminating need for intrusive front legs that block leg movement | |
| Assembly requirement | Knock-down (flat-pack) major components with cam-lock and bolt assembly, permanent factory-mounted LED lighting and trim pieces | |
| Work surface usability | Rounded, beveled soft edge profile on all desktop perimeters to reduce contact pressure during extended work use | |
| Work surface ergonomics | Fully rounded, beveled soft edge profile on all desktop perimeters, with 10mm radius to reduce forearm contact pressure during extended work use | |
| Storage access design | Drawers and cabinet doors feature push-to-open release mechanism with no external handles, maintaining smooth unbroken exterior finish | |
| Cable Management Capacity | Reference capacity 6-10 power/data cables; tray load approx. 5-10 kg | |
| Reference Reassembly Count | Main joints should support 3-5 controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of packaging cartons | 4 cartons (main desktop, side return top, left pedestal cabinet, right support/frame/hardware) | |
|---|---|---|
| Reference carton dimensions (per piece) | Main top: 2500 x 1000 x 150mm; Return top: 1300 x 700 x 120mm; Pedestals/frame: 2 pieces of 800 x 700 x 700mm | |
| Reference total gross shipping weight | 210-260 kg | |
| Reference total shipping volume (CBM) | Approx. 1.2-1.4 CBM | |
| Indicative container loading capacity | Approx. 38-42 units per 40ft HQ container, 16-18 units per 20ft GP container | |
| Estimated on-site assembly time | 2.5-3.5 hours for 2 trained installers with standard hand tools | |
| Standard export packaging | 5-layer corrugated carton, EPE foam wrap on all finished surfaces, hard corner protectors on all edges, hardware kit separated in labeled bags, printed assembly manual included | |
| Reference Package Count | 1 set / 1-2 cartons | |
| Reference Assembly Time | Approx. 15-40 minutes per set | |
| Reference Package Dimensions | Main top approx. 1900-2500 × 850-1050 × 180-350 mm; return/pedestal packed separately |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Primary use case for corporate executive, senior manager or director private offices, providing large work area, integrated storage and premium aesthetic to match professional office interiors | |
|---|---|---|
| Boutique professional firm offices | Suitable for law firms, financial advisory firms, design studios or consulting firms where premium client-facing office furniture is required | |
| Home office (luxury residential) | Applicable for high-end residential home offices for users requiring commercial-grade desk performance with upscale visual design | |
| Recommended matching furniture | Pair with high-back executive leather office chair (seat height 440-500mm), 2 visitor side chairs, and matching office filing cabinet from the same product line for visual consistency | |
| Recommended minimum room size | Minimum room dimensions of 3.6m x 3.2m to accommodate desk, executive chair, and visitor seating without obstruction | |
| C-suite executive private office | Primary use case for corporate CEO, CFO, COO or senior director private offices, providing large uncluttered work area, integrated storage and premium aesthetic to match high-end corporate office interiors | |
| Boutique professional client-facing offices | Suitable for law firm partner offices, private wealth advisory suites, architecture/design firm principal offices where premium client-facing furniture is required for in-desk meetings | |
| Recommended matching furniture configuration | Pair with high-back ergonomic executive leather office chair (seat height adjustment range 440-510mm), 2 low-profile visitor side chairs for the return, and matching 2/3/4-drawer lateral filing cabinet from the same product line for visual consistency |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 Office furniture - Work tables and desks - Part 1: Dimensions | Applicable reference for work surface height, clearance dimensions and ergonomic dimensional requirements | |
|---|---|---|
| EN 527-2:2019 Office furniture - Work tables and desks - Part 2: Safety, strength and durability requirements | Applicable reference for structural safety, static load, cyclic load and stability performance requirements | |
| EN 13986:2004 Wood-based panels for use in construction - Characteristics, evaluation of conformity and marking | Applicable reference for wood-based panel material performance and emission requirements for European market supply | |
| EN 60598-2-25:2015 Luminaires - Part 2-25: Particular requirements - Luminaires for use in clinical areas of hospitals and health care buildings (reference for integrated furniture lighting safety) | Applicable reference for low-voltage LED lighting safety built into furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 Office Desks and Tables | Applicable reference for structural performance, load testing, stability and durability requirements for commercial grade office desks, recommended for North American market procurement |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | Applicable as acceptance reference for panel material quality, dimensional tolerance, edge bonding and structural stability of this wooden office desk | |
|---|---|---|
| GB/T 3327-2016 Office desks and tables | Applicable as acceptance reference for desk strength, stability, load capacity and dimensional fit for office use | |
| GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels | Applicable as mandatory acceptance reference for formaldehyde emission limits of all wood-based panel components, require supplier test report | |
| GB/T 24821-2009 Office furniture - Tables for conference and office use - Test methods | Applicable reference for structural and load testing methodology during incoming inspection | |
| GB 7000.204-2008 Luminaires - Part 2-4: Particular requirements for portable general purpose luminaires | Applicable as reference for safety of integrated LED ambient lighting components |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable as acceptance reference for panel material quality, dimensional tolerance, edge bonding and structural stability of this wooden office desk; 2. GB/T 3327-2016 Office desks and tables: Applicable as acceptance reference for desk strength, stability, load capacity and dimensional fit for office use; 3. GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels: Applicable as mandatory acceptance reference for formaldehyde emission limits of all wood-based panel components, require supplier test report; 4. GB/T 24821-2009 Office furniture - Tables for conference and office use - Test methods: Applicable reference for structural and load testing methodology during incoming inspection; 5. GB 7000.204-2008 Luminaires - Part 2-4: Particular requirements for portable general purpose luminaires: Applicable as reference for safety of integrated LED ambient lighting components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
