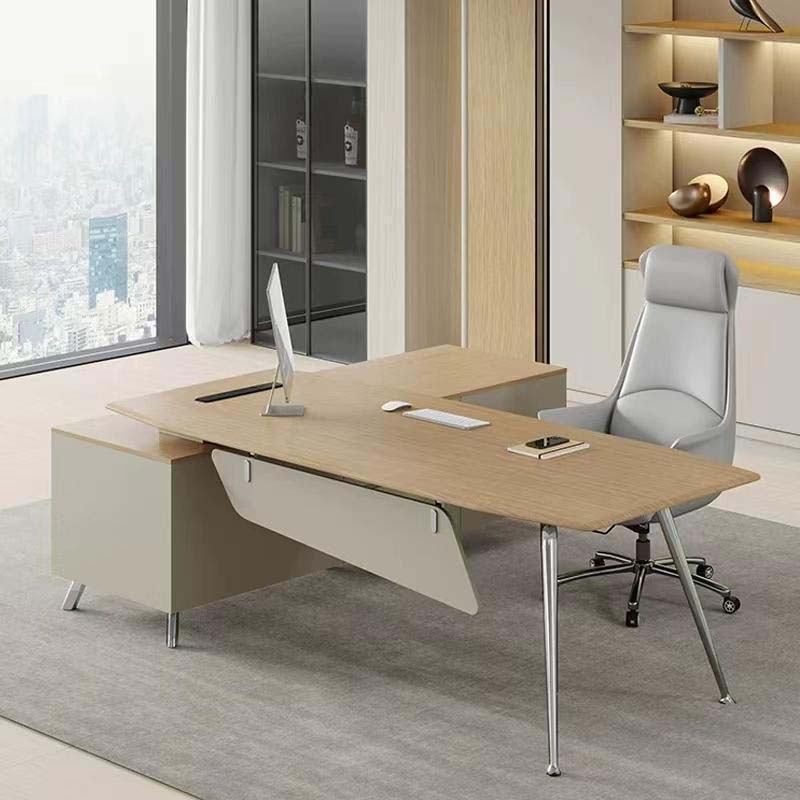

Modern L-Shaped Light Oak Executive Office Desk with Dual Side Storage Returns (model EXD-LO2400-CHR) is listed under Executive Office Desk for Boss/Executive. Dimensions: 2400 × 1800 × 760 mm. Materials: 25mm E1-grade engineered wood substrate, light oak textured matte laminate finish, rounded PVC edge banding. Load capacity: 150 kg. Product Features: Modern,light,luxury,style,steel-wood,structure,L-shaped,workstation,integrated,cable,management. This page consolidates 6 groups of specifications and GB / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | KANAITE | Model | EXD-LO2400-CHR |
| Overall dimensions (W × D × H) | 2400 × 1800 × 760 mm | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | desktop static load capacity | 150 kg |
| drawer slide dynamic load rating | 25 kg | drawer slide durability | 50000 open/close cycles |
| cabinet hinge durability | 80000 open/close cycles | laminate surface scratch resistance | 3 N |
| laminate surface heat resistance | 80 °C | Top Static Load Reference | 150 kg uniformly distributed |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | Hinge Opening Life | Acceptance target 80000 cycles |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | main desktop panel | 25mm E1-grade engineered wood substrate, light oak textured matte laminate finish, rounded PVC edge banding |
| storage cabinet carcass | 18mm E1-grade engineered wood substrate, matte light beige thermofoil finish, sealed edge banding | front modesty panel | 18mm E1-grade engineered wood, matching matte beige finish, angled mounted for leg clearance |
| support legs | 50mm diameter tapered cold-rolled steel, triple-plated polished chrome finish, welded floor mounting plates | drawer slides | Cold-rolled steel three-section full-extension ball bearing slides, zinc-plated corrosion-resistant finish |
| cabinet hinges | Cold-rolled steel soft-close European hinges, nickel-plated finish, 110 degree opening angle | leveling feet | Nylon base with chrome-plated steel threaded stem, non-slip rubber bottom pad |
| cable management grommets | ABS plastic, brushed silver finish, 80mm pass-through opening, removable cover cap | edge banding | 2mm thick impact-resistant PVC, color-matched to desktop and cabinet panels, hot-melt applied |
| storage drawer interiors | 12mm E1-grade engineered wood, smooth matte melamine finish, no raw exposed edges | under-desk cable tray | 1mm thick cold-rolled steel, black powder-coated finish, mounted below cable grommets |
| drawer handles | Integrated recessed aluminum alloy pulls, brushed silver finish, no protruding edges | dual side pedestal storage | Two fixed side cabinet returns provide 2 lockable file drawers and 4 utility drawers for document and supply storage |
| desktop cable management | Embedded 80mm cable grommets route power and data cords from desktop to under-desk cable tray, eliminating surface cord clutter | adjustable floor leveling | 15mm travel adjustable feet on all support points compensate for uneven office flooring, keeping desktop perfectly level |
| soft-close drawer operation | Full-extension ball bearing slides with soft-close dampers prevent slamming, operate silently and provide full access to drawer contents | ergonomic seated knee clearance | 650mm high x 1200mm wide central open bay accommodates standard executive office chairs and seated leg movement for users up to 190cm tall |
| surface stain resistance | Matte laminate top resists common office liquid spills including coffee and ink, allowing wipe cleaning without staining | locking storage security | Central drawer lock secures all pedestal drawers with a single key, protecting confidential documents and personal items |
| modesty panel privacy | Angled front modesty panel blocks view of seated user's legs from office entryways, maintaining professional privacy | Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| private executive office | Suitable for CEO, general manager or director private offices, providing professional appearance and ample storage for work materials | open-plan manager workstation | Appropriate for department manager workstations in open office layouts, with cable management to maintain a tidy work surface |
| home office executive setup | Suitable for high-end home offices for remote executive workers, combining professional function with modern residential aesthetic | conference room leader station | Can be used as a presentation or leader station in small boardrooms, supporting laptop, document and presentation equipment placement |
| law/finance professional office | Ideal for lawyers, accountants and financial advisors requiring locked confidential document storage and professional client-facing appearance | reception manager workspace | Suitable for reception area manager positions adjacent to lobbies, providing storage for visitor materials and office supplies |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1800 × 760 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| desktop static load capacity | 150 kg | |
|---|---|---|
| drawer slide dynamic load rating | 25 kg | |
| drawer slide durability | 50000 open/close cycles | |
| cabinet hinge durability | 80000 open/close cycles | |
| laminate surface scratch resistance | 3 N | |
| laminate surface heat resistance | 80 °C | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| main desktop panel | 25mm E1-grade engineered wood substrate, light oak textured matte laminate finish, rounded PVC edge banding | |
|---|---|---|
| storage cabinet carcass | 18mm E1-grade engineered wood substrate, matte light beige thermofoil finish, sealed edge banding | |
| front modesty panel | 18mm E1-grade engineered wood, matching matte beige finish, angled mounted for leg clearance | |
| support legs | 50mm diameter tapered cold-rolled steel, triple-plated polished chrome finish, welded floor mounting plates | |
| drawer slides | Cold-rolled steel three-section full-extension ball bearing slides, zinc-plated corrosion-resistant finish | |
| cabinet hinges | Cold-rolled steel soft-close European hinges, nickel-plated finish, 110 degree opening angle | |
| leveling feet | Nylon base with chrome-plated steel threaded stem, non-slip rubber bottom pad | |
| cable management grommets | ABS plastic, brushed silver finish, 80mm pass-through opening, removable cover cap | |
| edge banding | 2mm thick impact-resistant PVC, color-matched to desktop and cabinet panels, hot-melt applied | |
| storage drawer interiors | 12mm E1-grade engineered wood, smooth matte melamine finish, no raw exposed edges | |
| under-desk cable tray | 1mm thick cold-rolled steel, black powder-coated finish, mounted below cable grommets | |
| drawer handles | Integrated recessed aluminum alloy pulls, brushed silver finish, no protruding edges |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| dual side pedestal storage | Two fixed side cabinet returns provide 2 lockable file drawers and 4 utility drawers for document and supply storage | |
|---|---|---|
| desktop cable management | Embedded 80mm cable grommets route power and data cords from desktop to under-desk cable tray, eliminating surface cord clutter | |
| adjustable floor leveling | 15mm travel adjustable feet on all support points compensate for uneven office flooring, keeping desktop perfectly level | |
| soft-close drawer operation | Full-extension ball bearing slides with soft-close dampers prevent slamming, operate silently and provide full access to drawer contents | |
| ergonomic seated knee clearance | 650mm high x 1200mm wide central open bay accommodates standard executive office chairs and seated leg movement for users up to 190cm tall | |
| surface stain resistance | Matte laminate top resists common office liquid spills including coffee and ink, allowing wipe cleaning without staining | |
| locking storage security | Central drawer lock secures all pedestal drawers with a single key, protecting confidential documents and personal items | |
| modesty panel privacy | Angled front modesty panel blocks view of seated user's legs from office entryways, maintaining professional privacy | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| private executive office | Suitable for CEO, general manager or director private offices, providing professional appearance and ample storage for work materials | |
|---|---|---|
| open-plan manager workstation | Appropriate for department manager workstations in open office layouts, with cable management to maintain a tidy work surface | |
| home office executive setup | Suitable for high-end home offices for remote executive workers, combining professional function with modern residential aesthetic | |
| conference room leader station | Can be used as a presentation or leader station in small boardrooms, supporting laptop, document and presentation equipment placement | |
| law/finance professional office | Ideal for lawyers, accountants and financial advisors requiring locked confidential document storage and professional client-facing appearance | |
| reception manager workspace | Suitable for reception area manager positions adjacent to lobbies, providing storage for visitor materials and office supplies |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | applies to structural safety and dimensional tolerance acceptance | |
|---|---|---|
| GB 18580-2017 Formaldehyde emission limits for wood-based panels | applies to E1-grade panel emission compliance verification | |
| GB/T 4897.3-2003 Particleboard for furniture use | applies to substrate physical performance acceptance for cabinet and top panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: applies to structural safety and dimensional tolerance acceptance; 2. GB 18580-2017 Formaldehyde emission limits for wood-based panels: applies to E1-grade panel emission compliance verification; 3. GB/T 4897.3-2003 Particleboard for furniture use: applies to substrate physical performance acceptance for cabinet and top panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
