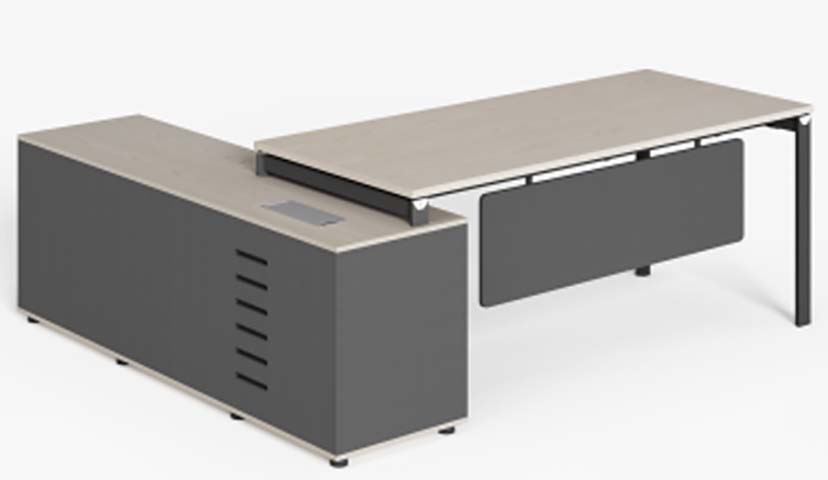

Product supplierTwo-Tone L-Shaped Executive Desk with Integrated Side Storage Credenza, E1-grade MDF with light wood-grain melamine finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1800 × 760 mm | |
|---|---|---|
| Overall L-shaped footprint | 2400 x 1800 x 760 mm | |
| Main work surface depth | 800 mm | |
| Side return credenza width | 1200 mm | |
| Side return credenza depth | 600 mm | |
| Work surface thickness | 40 mm | |
| Knee clearance height under main desk | 680 mm | |
| Knee clearance width between support and cabinet | 1200 mm | |
| Square steel support leg section | 60 x 30 mm | |
| Steel leg wall thickness | 1.5 mm | |
| PVC edge banding thickness | 2 mm | |
| Cable grommet diameter | 80 mm | |
| Modesty panel height | 400 mm | |
| Leveling glide adjustment height | 15 mm | |
| CPU compartment internal height | 500 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 60 kg | |
|---|---|---|
| Static work surface load capacity | 91 kg | |
| Single drawer slide dynamic load | 25 kg | |
| Surface scratch resistance | 2000 cycles | |
| Recommended user capacity | 1 person | |
| Hinge cycle rating for cabinet doors | 80000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface and cabinet panels | E1-grade MDF with light wood-grain melamine finish | |
|---|---|---|
| Cabinet side panels and modesty panel | Dark grey melamine-faced particleboard | |
| Support legs and frame | Dark grey powder-coated square steel tubing | |
| Panel edges | 2mm thick PVC edge banding with 45° beveled finish | |
| Leveling glides | Nylon base with steel threaded insert | |
| Drawer and door hardware | Cold-rolled steel with zinc plating | |
| Cable grommet | ABS plastic with brushed grey finish cap | |
| Under-desk support beams | 1.5mm thick rectangular steel tubing | |
| Cabinet ventilation slot trim | Matching dark grey ABS plastic | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated side storage credenza | Enclosed cabinet with 3 utility drawers, open file shelf, and CPU compartment | |
|---|---|---|
| Cable management system | Top grommet on return surface with under-desk cable tray routing to cabinet | |
| Under-desk modesty panel | Fixed dark grey panel mounted to front edge of main desk for seated privacy | |
| Adjustable leveling glides | Threaded feet at all cabinet and leg bases to compensate for uneven floors | |
| CPU compartment ventilation | 6 horizontal vent slots on cabinet side panel for computer heat dissipation | |
| Reversible return configuration | Side cabinet can be assembled on left or right side to fit office layouts | |
| Lockable storage drawers | Central lock secures all utility and file drawers for document security | |
| Fixed-height work surface | 760mm standard desk height optimized for ergonomic seated office use | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping cartons | 3 | |
|---|---|---|
| Largest carton dimensions | 2450 x 850 x 120 mm | |
| Total shipping gross weight | 70 kg | |
| Total shipment volume | 0.3 CBM | |
| Required assembly time | 50 minutes | |
| 20ft container loading capacity | 72 units | |
| 40HQ container loading capacity | 170 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Fits manager or CEO offices, provides large work surface and integrated document storage | |
|---|---|---|
| Home office workspace | Suitable for dedicated home offices requiring dedicated work and storage space | |
| Small team meeting space | Supports 3person informal meetings across the main work surface | |
| IT or admin workstations | Ventilated CPU compartment and cable management suit roles requiring desktop computer setups | |
| Open-plan manager pods | Compatible with open office layouts when paired with ergonomic office task chairs |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to load and structural stability | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional safety and ergonomic requirements for seated use | |
| EN 13722:2004 | Office furniture storage units performance and durability requirements for cabinet components |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable to static load, durability and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable to drawer and cabinet hardware performance |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to panel construction and finish quality | |
|---|---|---|
| GB/T 3327-2017 | Performance and dimension requirements for office desks, applicable to work surface height and clearance | |
| GB 18580-2017 | Formaldehyde emission limits for engineered wood panels, minimum E1 grade requirement for indoor use |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to panel construction and finish quality; 2. GB/T 3327-2017: Performance and dimension requirements for office desks, applicable to work surface height and clearance; 3. GB 18580-2017: Formaldehyde emission limits for engineered wood panels, minimum E1 grade requirement for indoor use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
