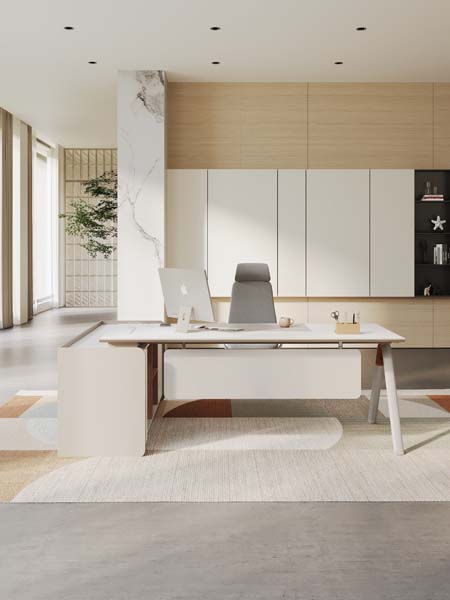

Product supplierModern White L-Shaped Executive Office Desk with Central Drawer and Side Return, 25mm E1 grade engineered wood, matte white scratch-resistant finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1800 × 750 mm | |
|---|---|---|
| main worktop depth | 800 mm | |
| worktop thickness | 25 mm | |
| edge band thickness | 2 mm | |
| central drawer unit width | 1600 mm | |
| side return pedestal width | 600 mm | |
| side return open shelf depth | 400 mm | |
| knee clearance height | 600 mm | |
| knee clearance width | 1200 mm | |
| metal leg wall thickness | 1.5 mm | |
| cable grommet diameter | 60 mm | |
| central drawer internal depth | 450 mm | |
| floor clearance under worktop | 50 mm | |
| return shelving compartment height | 300 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| total worktop static load capacity | 210 kg | |
|---|---|---|
| drawer slide cycle rating | 50000 cycles | |
| cabinet hinge cycle rating | 80000 cycles | |
| surface abrasion resistance | 2000 cycles | |
| net weight range upper bound | 90 kg | |
| recommended maximum user weight for seated use | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| main worktop panel | 25mm E1 grade engineered wood, matte white scratch-resistant finish | |
|---|---|---|
| side return pedestal panels | 18mm engineered wood, matching matte white finish with light wood edge trim | |
| central drawer front | 18mm engineered wood, matte white finish with integrated finger pull | |
| right support legs | 1.5mm thick powder-coated white steel, splayed angled design | |
| internal drawer components | 12mm particle board drawer boxes with metal slide hardware | |
| side return open shelf backing | 12mm light wood-tone engineered wood accent panel | |
| edge banding | 2mm thick PVC edge banding, color-matched to white panels | |
| adjustable foot glides | Nylon base with steel threaded stem, 10mm adjustment range | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| central full-width drawer unit | Single smooth-gliding drawer with 350mm extension for office supply storage | |
|---|---|---|
| left side return open shelving | Fixed open storage compartments for books, files or decorative items | |
| integrated cable management grommet | 60mm diameter desk grommet for routing power and data cables to work surface | |
| under-desk cable tray support | Fixed mounting points for optional cable tray to organize wiring below work surface | |
| leveling foot adjustment | 10mm vertical adjustment on all base contact points to compensate for uneven floors | |
| fixed worktop height | 750mm fixed working height optimized for standard ergonomic office chair use | |
| asymmetric structural support | Left fixed storage pedestal and right splayed steel legs for rigid, stable work surface | |
| handleless drawer operation | Integrated recessed pull allows drawer access without protruding hardware | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| private executive office | Suitable for manager/CEO private workspaces with professional, minimalist aesthetic | |
|---|---|---|
| home office luxury setup | Ideal for upscale home workspaces requiring integrated storage and spacious work area | |
| small meeting and discussion space | Supports 2-person side meetings across the work surface in office settings | |
| recommended pairing | Matches with high-back ergonomic executive office chairs and matching wall storage cabinets | |
| workstation for computing and document work | Designed to support all-in-one computers, peripherals, and document processing tasks | |
| modern minimalist office interiors | Complements light wood, neutral white, and marble-accented contemporary office design |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables: Safety requirements, applicable to structural stability and load testing | |
|---|---|---|
| EN 527-2:2002 | Office work tables: Mechanical safety requirements, applicable to strength and durability |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products: Safety and performance standard for commercial office desk testing |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel and structural performance | |
|---|---|---|
| GB/T 3327-2020 | Performance test method for desks, applicable to worktop load and stability verification | |
| GB 18584-2001 | Limit of formaldehyde emission for wooden furniture, applicable to panel material safety |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and structural performance; 2. GB/T 3327-2020: Performance test method for desks, applicable to worktop load and stability verification; 3. GB 18584-2001: Limit of formaldehyde emission for wooden furniture, applicable to panel material safety; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
