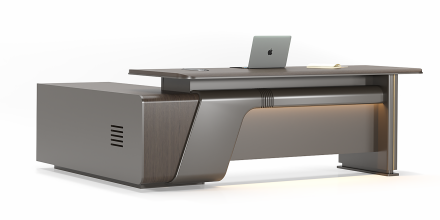

Product supplierModern L-Shaped Executive Office Desk with Integrated Side Storage Cabinet and Ambient Accent Lighting, 25 mm thickness E0-grade engineered particleboard / MDF
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1800 × 750 mm | |
|---|---|---|
| Side cabinet total height | Approx. 600 mm | |
| Finished Top Thickness | Approx. 30-50 mm | |
| Effective Knee Clearance | Approx. 620-680 mm high and 700-900 mm wide per main seat | |
| Leg / Support Section | Approx. 40-80 mm main section with 1.2-2.0 mm metal wall | |
| Cable Opening Size | Approx. 60-80 mm diameter; cable tray depth approx. 80-120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net product weight range | Approx. 145-175 kg | |
|---|---|---|
| Main worktop static load capacity | Approx. 150 kg distributed load | |
| Recommended number of users | 1 person | |
| Integrated LED strip lifespan | Approx. 30000 working hours | |
| Drawer slide (if fitted) cycle rating | Approx. 50000 open/close cycles | |
| Surface abrasion resistance (worktop) | ≥ 2000 abrasion cycles (class 2 for office use) | |
| Drawer slide static load rating (pedestal drawers) | Approx. 25 kg per drawer, 50000 open/close cycle rating | |
| Cabinet door hinge cycle rating | Approx. 80000 open/close cycles | |
| Worktop surface abrasion resistance | ≥ 2000 abrasion cycles (Class 2 office use rating) | |
| Integrated LED strip operational lifespan | Approx. 30000 working hours |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main worktop core | 25 mm thickness E0-grade engineered particleboard / MDF | |
|---|---|---|
| Worktop surface finish | Matte dark brown wood veneer with anti-scratch polyurethane coating | |
| Support frame and modesty panel | 1.5 mm thickness cold-rolled steel with matte taupe powder coating | |
| Side cabinet outer panel | 25 mm thickness engineered board with matte dark grey lacquer finish | |
| Side cabinet front accent panel | Vertical-grain dark wood veneer matching worktop finish | |
| Vertical decorative trim strips | Brushed stainless steel with gold-tone PVD coating | |
| Leveling feet (base) | Injection-molded nylon with height adjustment range ±10 mm | |
| Integrated ambient lighting | Low-voltage 24V LED strip with warm white (3000K) color temperature | |
| Hardware (hinges/slides) | Cold-rolled steel with zinc plating, soft-close mechanism | |
| Worktop core panel | 25 mm thickness E0-grade high-density particleboard/MDF, low formaldehyde emission, internal laminated structure | |
| Modesty panel and support frame | 1.5 mm thickness cold-rolled steel, matte taupe powder coat finish, welded internal joints with rounded external bends | |
| Storage pedestal outer panels | 25 mm thickness E0-grade engineered board, matte dark grey PU lacquer finish, edge-sealed to prevent moisture ingress |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Built-in cable grommets on worktop, ventilation slots on side cabinet for PC/equipment airflow, internal cable routing channel under worktop | |
|---|---|---|
| Integrated storage | Left-side return cabinet with enclosed storage compartments (drawers/filing space) for documents and office supplies | |
| Ambient lighting function | Recessed warm white LED strip under front modesty panel, operated by hidden touch switch on worktop edge, providing indirect under-desk illumination | |
| Floor leveling | Adjustable nylon feet at all support points to compensate for uneven floor surfaces, adjustment travel ±10 mm | |
| Work surface layout | L-shaped extended work area with separate main work zone and side auxiliary zone for printer, documents or secondary display | |
| Privacy modesty panel | Curved full-width front modesty panel blocking leg area view from front, with integrated light recess | |
| Edge protection | Rounded/chamfered worktop edges to reduce impact injury risk | |
| Cable management system | 80mm diameter rear worktop cable grommet with brush seal, 100x50mm internal under-worktop cable routing channel, 5 horizontal pedestal vent slots for under-desk PC airflow, 130mm clearance between worktop underside and pedestal top for wire runs | |
| Integrated storage system | Full-length left-side return pedestal with enclosed mixed storage (file drawer + stationery drawers + open equipment bay) for A4/F4 filing, office supplies and under-desk PC tower placement | |
| Floor leveling adjustment | 4 adjustable nylon leveling feet at all frame and pedestal support points, ±10 mm vertical adjustment travel to compensate for ±8 mm uneven floor tolerances | |
| Work surface zone layout | L-shaped split work area: 1600mm wide main front zone for monitor/laptop/writing tasks, 1800mm deep side auxiliary zone for printer, secondary display or document sorting, with 600mm clear walk gap between work zone and pedestal front | |
| Front privacy modesty panel | Curved full-width steel modesty panel covering 350mm height from worktop underside, blocking direct view of seated user leg area from front visitor positions, with integrated recess for LED light strip |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of packages | 4 flat-pack cartons | |
|---|---|---|
| Reference carton dimensions | Largest carton (worktop) approx. 2500 x 950 x 120 mm; cabinet carton approx. 1850 x 650 x 650 mm; hardware/parts carton approx. 400 x 300 x 200 mm | |
| Reference total gross weight | Approx. 170-205 kg | |
| Reference total CBM | Approx. 1.15-1.30 CBM | |
| Indicative 40HQ container loading quantity | Approx. 52-58 units | |
| Assembly time | Approx. 60-90 minutes for 2 trained assembly workers | |
| Reference total shipment volume | Approx. 1.15-1.30 CBM | |
| On-site assembly time | Approx. 60-90 minutes for 2 trained assembly workers, including frame fixing, pedestal attachment, lighting wiring and leveling adjustment | |
| Reference Package Count | 1 set / 1-2 cartons | |
| Reference Assembly Time | Approx. 15-40 minutes per set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Suitable for director/manager private offices, providing large work area and concealed storage for a professional, high-end workspace appearance | |
|---|---|---|
| High-end reception meeting area | Usable as a reception desk for luxury office lobbies, with side cabinet for reception supplies and ambient lighting to create a premium welcome impression | |
| Luxury residential home office | Applicable for large dedicated home office spaces (≥10 sqm) for senior professionals, remote executives and freelancers, supporting multi-monitor setups, document storage and high-end residential interior design schemes | |
| Recommended supporting furniture | Pair with high-back executive office chair, visitor seating for 2 persons in front of desk, and mobile filing pedestal for additional accessible storage | |
| Power/data access note | Position within 1.5m of wall power and data outlets to leverage integrated cable management for desktop devices and under-desk PC equipment | |
| High-end corporate reception area | Usable as a luxury reception desk in Class A office lobbies, with side pedestal for storing reception supplies, sign-in materials and visitor amenities, and ambient lighting to create a premium welcome experience | |
| Recommended furniture pairing | Pair with high-back ergonomic executive office chair (seat height 420-500mm range), 2 low-back visitor chairs positioned in front of the main work zone, and optional mobile 3-drawer filing pedestal for additional frequently accessed storage | |
| Installation placement note | Position within 1.5m of wall power and data outlets to utilize integrated cable management, leave ≥1000mm clear walkway behind the side return, and avoid placement in direct sunlight to prevent veneer finish fading over time |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applicable standards and test results require confirmation | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Office furniture - Work tables and desks - Part 2: Mechanical safety requirements and test methods, applicable for stability and load testing acceptance | |
| EN 13986:2004+A1:2015 | Wood-based panels for use in construction - Characteristics, evaluation of conformity and marking, applicable for panel material performance verification | |
| EN 60598-2-4:2018 | Luminaires - Part 2-4: Particular requirements - Portable general purpose luminaires, applicable for integrated LED lighting electrical safety |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional tolerance, surface finish quality and structural stability acceptance of this desk | |
|---|---|---|
| GB/T 3327-2022 | Office desks and tables, applicable for load capacity, stability and ergonomic dimension requirements acceptance | |
| GB 18580-2017 | Indoor decoration and refurbishing materials - Formaldehyde emission limits for wood-based panels, mandatory requirement for E1/E0 grade panel acceptance | |
| GB 7000.204-2008 | Safety requirements for luminaires - Part 2-4: Particular requirements for portable general purpose luminaires, applicable for integrated LED strip electrical safety acceptance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional tolerance, surface finish quality and structural stability acceptance of this desk; 2. GB/T 3327-2022: Office desks and tables, applicable for load capacity, stability and ergonomic dimension requirements acceptance; 3. GB 18580-2017: Indoor decoration and refurbishing materials - Formaldehyde emission limits for wood-based panels, mandatory requirement for E1/E0 grade panel acceptance; 4. GB 7000.204-2008: Safety requirements for luminaires - Part 2-4: Particular requirements for portable general purpose luminaires, applicable for integrated LED strip electrical safety acceptance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
