Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 2200 x 800 x 750 mm | |
|---|---|---|
| Side storage cabinet dimensions | 550 x 450 x 750 mm | |
| Tabletop thickness | 50 mm | |
| Seated knee clearance height | 680 mm | |
| Seated knee clearance depth | 600 mm | |
| Modesty panel height | 200 mm | |
| Right support leg dimensions | 400 x 800 x 700 mm | |
| Built-in electric heating tray dimensions | 450 x 300 mm | |
| Tea service runner working area | 1200 x 300 mm | |
| Upper cabinet drawer internal dimensions | 480 x 400 x 120 mm | |
| Lower cabinet door internal dimensions | 480 x 400 x 580 mm | |
| Table edge radius | 30 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Product net weight | 120 kg | |
|---|---|---|
| Tabletop static load capacity | 150 kg | |
| Integrated electric heater power | 1500 W | |
| Recommended seating capacity | 5 | |
| Surface abrasion resistance | 2000 cycles | |
| Recommended product warranty | 3 years | |
| Integrated electric heating unit power | 1500 W | |
| Maximum recommended seating capacity | 5 | |
| Structural warranty period | 3 years | |
| Soft-close hardware cycle life | 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Tabletop | 18mm E0 grade MDF substrate with walnut wood veneer finish, matte protective top coat, 50mm thick profiled edge | |
|---|---|---|
| Left storage cabinet frame | 18mm matte warm grey lacquered MDF, edge-banded to match finish, stitched decorative inlay on top and bottom edges | |
| Left cabinet door and drawer front | Textured fabric-look laminate panel, antique brass finish metal pulls, soft-close hinges and drawer slides | |
| Right support leg | Curved molded matte warm grey lacquered MDF/wood composite, full floor contact base for stability | |
| Modesty decorative panel | Dark grey matte panel with light metallic inlaid scallop pattern, fixed to table underside between supports | |
| Tea tray runner trim | Rose gold finish brushed metal edge strips, linen-look heat resistant fabric runner mat | |
| Integrated drainage tea tray | Food grade 304 stainless steel recessed tray, sloped surface with drain connection to waste water bucket | |
| Integrated electric heating unit | Tempered black glass induction/heating surface, touch control panel, 304 stainless steel boiling kettle, ceramic sterilizer pot | |
| Decorative hardware pulls | Solid zinc alloy with antique bronze brushed finish, 80mm length, surface mounted to door and drawer fronts | |
| Cabinet door and drawer fronts | Textured fabric-look thermofoil laminate panel, antique bronze finish zinc alloy pulls, soft-close concealed hinges and under-mount drawer slides | |
| Decorative modesty panel | Dark grey matte laminate panel with light gold metallic inlaid scallop pattern, fixed to table underside between supports | |
| Adjustable floor levelers | Nylon base 12mm diameter threaded steel levelers, 15mm vertical adjustment range, installed at all base contact points |
Adjustment / rotation / tilt / mobility / storage features
| Integrated water boiling function | Built-in heating plate supports automatic water boiling and heat retention, connects directly to bottled water stored in lower cabinet for hands-free refilling | |
|---|---|---|
| Tea utensil sterilization function | Dedicated ceramic pot on heating tray supports high temperature sterilization of teacups and brewing tools between uses | |
| Waste water drainage system | Recessed stainless steel tea tray connects via hidden drain hose to waste water container stored in lower cabinet, eliminates need to manually empty tray during service | |
| Storage organization function | Left cabinet includes 1 upper soft-close drawer for small tea tools, tea caddies and accessories, 1 lower closed compartment for water supply bucket and waste water container, keeps supplies hidden while maintaining easy access | |
| Stable fixed structure | Permanent connected assembly between left cabinet base and right curved leg, no folding or moving parts, provides wobble-free surface for tea pouring even with full equipment load | |
| Cable management function | Hidden routing for power cord of electric heating unit runs through interior of left cabinet to wall outlet, no exposed cables across tabletop or floor surface | |
| Heat-resistant work surface | Central service zone covered with 5mm thick heat-resistant silicone-coated fabric mat and stainless steel tray, withstands 180°C contact temperature from hot teapots without tabletop damage | |
| Water flow control function | Visible rotary control knobs on cabinet front adjust water flow volume for kettle refilling, accessible from seated position without reaching under table | |
| Wobble-free fixed structure | Permanent dowel-and-cam assembly between left cabinet base and right curved leg, no folding or articulating parts, <1mm lateral deflection under full 150kg tabletop load | |
| Hidden cable management | Internal 25mm cable channel in left cabinet routes heating unit power cord to rear wall outlet, no exposed cables across tabletop or floor surface | |
| Floor leveling function | Hidden threaded nylon levelers at all base contact points provide 15mm vertical adjustment, compensates for uneven floors to eliminate table wobble | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Number of packages | 3 | |
|---|---|---|
| Tabletop carton dimensions | 2250 x 850 x 120 mm | |
| Frame and cabinet carton dimensions | 800 x 500 x 800 mm | |
| Total packaged gross weight | 140 kg | |
| Total shipping volume (CBM) | 0.55 | |
| assembly time | 60 minutes | |
| 20ft GP container loading quantity | 52 units | |
| 40ft HQ container loading quantity | 128 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
| Executive office reception | Suitable for placement in executive or manager offices to host guest tea meetings, integrated design avoids cluttering the office with separate tea equipment | |
|---|---|---|
| Home living room tea area | Appropriate for modern home living rooms or dedicated tea rooms, neutral warm grey and walnut finish matches contemporary minimalist interior design | |
| Commercial tea house private booth | Usable for private rooms in boutique tea houses, durable surface supports daily tea service operations, integrated boiler speeds up guest service workflow | |
| Open plan office collaboration zone | Can be placed in office lounge or collaboration areas for informal staff meetings and visitor reception, multi-seat design supports small group discussions over tea | |
| High-end club lounge space | Suitable for private lounges in business clubs or hospitality venues, decorative stitching and patterned modesty panel aligns with premium interior finishes | |
| High-end business club lounge | Suitable for private member lounges in business clubs or hospitality venues, decorative stitching and patterned modesty panel aligns with premium interior finish standards |
European market access and chemical requirements
| EN 527-2:2002+A1:2019 | Office work tables - Safety and strength requirements, applicable for structural load and stability performance of the desk | |
|---|---|---|
| EN 60335-2-15:2021 | Safety of household appliances - Particular requirements for appliances for heating liquids, applicable to integrated water boiling unit electrical safety | |
| EN 13722:2004 | Furniture - Test methods for assessment of surface resistance to cold liquids, applicable to tabletop finish resistance to tea and water spills |
US and Canada office-furniture standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural stability, surface finish quality and dimensional tolerance of this wooden tea desk | |
|---|---|---|
| GB 4706.1-2005 | Safety requirements for household and similar electrical appliances, applicable to the integrated electric heating and boiling unit for electrical safety | |
| GB/T 15102-2017 | Specification for impregnated paper laminated wood flooring and furniture panels, applicable to the wood veneer and laminate panel surfaces for wear and delamination resistance | |
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits for MDF and lacquer materials used in construction |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural stability, surface finish quality and dimensional tolerance of this wooden tea desk; 2. GB 4706.1-2005: Safety requirements for household and similar electrical appliances, applicable to the integrated electric heating and boiling unit for electrical safety; 3. GB/T 15102-2017: Specification for impregnated paper laminated wood flooring and furniture panels, applicable to the wood veneer and laminate panel surfaces for wear and delamination resistance; 4. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits for MDF and lacquer materials used in construction; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.

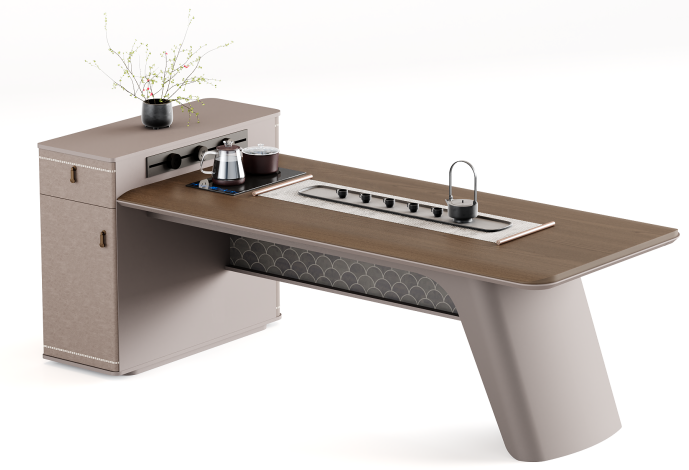

Open Export ToolModern Integrated Tea Desk with Side Storage Cabinet and Built-in Water Boiler, Particle Board.
