PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall assembled dimensions	2400 x 1800 x 760 mm
Main desktop thickness	41 mm
Main desktop depth (front to back)	900 mm
Left return cabinet width	1200 mm
Left return cabinet depth	550 mm
Left return cabinet height	695 mm
Central seated knee clearance height	650 mm
Central seated knee clearance width	1500 mm
Modesty panel height	400 mm
Cylindrical metal leg diameter	60 mm
Edge band thickness	2 mm
Desktop rounded corner radius	30 mm
Cable grommet diameter	60 mm
Drawer internal depth (return cabinet)	450 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static uniform load capacity	120 kg
Drawer slide operational cycle rating	50000 cycles
Cabinet hinge operational cycle rating	80000 cycles
Total product net weight	120 kg
Surface scratch resistance rating	2 Class
Recommended maximum user weight support	150 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop panel	41mm thick melamine-faced particleboard (MFC) with walnut wood grain finish
Modesty panel	25mm thick MFC with matching walnut wood grain finish
Left return cabinet panels	18mm thick MFC with matte dark gray finish
Support legs	60mm diameter powder-coated dark gray steel with gold accent rings at joints
Edge banding	2mm thick PVC edge banding with rounded profile
Drawer slides	Cold-rolled steel three-section full-extension ball bearing slides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Fixed left return cabinet with enclosed storage drawers and open shelf space
Cable management	Top-surface cable grommet with under-desk removable cable tray
Privacy modesty panel	Full-width fixed front modesty panel spanning the main desk knee opening
Assembly structure	Knock-down flat-pack construction with cam-lock and bolt hardware connections

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application space	Executive private offices, manager workspaces, director suites
Recommended supporting furniture	Matching high-back executive office chair, compatible office storage bookcase

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables – Part 1: Dimensions, applicable to seated work surface and clearance requirements
EN 527-2:2016	Office work tables – Part 2: Mechanical safety requirements, applicable to stability and load testing
EN 13722:2004	Furniture – Strength and durability of storage units for office use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Standard for Desk Products, applicable to structural performance, load and durability testing
ANSI/BIFMA X5.9-2019	Standard for Storage Units, applicable to return cabinet drawer and shelf performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk panel and cabinet construction
GB/T 3327-2021	Performance test methods for office desks, applicable to load and stability verification
GB 18584-2001	Indoor decorating and refurbishing materials – limit of harmful substances for wood furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and cabinet construction;
2. GB/T 3327-2021: Performance test methods for office desks, applicable to load and stability verification;
3. GB 18584-2001: Indoor decorating and refurbishing materials – limit of harmful substances for wood furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXEC-L-WAL-DG-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXEC-L-WAL-DG-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXEC-L-WAL-DG-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

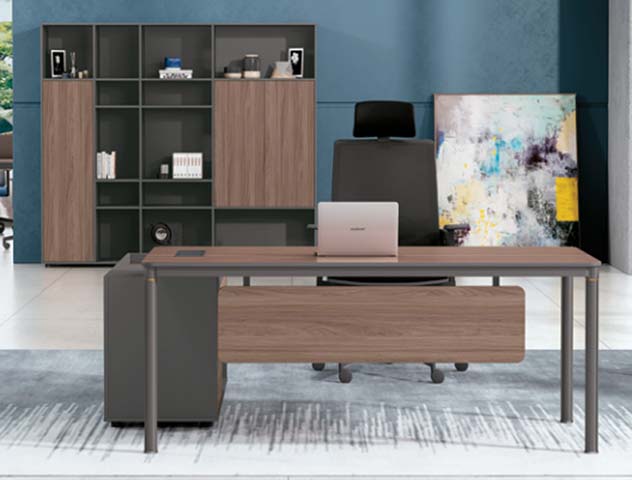

This L-shaped two-tone executive desk features a structured, contemporary silhouette designed to anchor professional workspaces with balanced visual weight. Its layout aligns a wide main work surface with a fixed left-side storage return, creating a dedicated corner configuration that separates primary task space from accessible storage without disrupting open sightlines across the desk front. A full-width fixed modesty panel spans the central knee opening, delivering a clean, uninterrupted front profile that conceals under-desk elements from view. The desk is constructed with durable engineered wood components paired with metal support structures. The main desktop and matching modesty panel use walnut-effect melamine-faced particleboard, with 2mm thick rounded PVC edge banding to soften hard corners and protect panel edges from daily wear. The fixed left return uses matte dark gray melamine-faced particleboard for its cabinet panels, creating a distinct two-tone contrast with the warm walnut work surface. Support comes from cylindrical powder-coated dark gray steel legs, finished with subtle gold accent rings at joint points, secured via cam-lock and bolt hardware for knock-down flat-pack assembly. Practical functionality is integrated throughout the design. The fixed left return combines enclosed storage drawers with open shelf space for easy access to frequently used documents, supplies, or personal items. Drawers operate on cold-rolled steel three-section full-extension ball bearing slides, while cabinet hinges support smooth, long-term regular use. A top-surface cable grommet paired with a removable under-desk cable tray keeps power and data cords organized and out of sight, reducing desktop clutter. The wide central knee clearance accommodates comfortable seated positioning for extended work sessions. The desk surface delivers reliable static load capacity for office equipment, documents, and work materials, with rated scratch resistance to maintain a polished appearance through regular use. This desk is ideally suited for executive private offices, manager workspaces, and director suites. It pairs seamlessly with matching high-back executive office chairs and compatible office storage bookcases to create a cohesive, professional workspace layout. When planning procurement, note that the desk ships in multiple flat-pack cartons, with a referenced assembly time per set that supports straightforward on-site installation. Teams should account for total packaged weight and volume when coordinating delivery and storage prior to setup, and verify that intended placement space accommodates the fully assembled desk footprint. The unbranded design offers flexible styling alignment with a range of modern office interior palettes, without restrictive brand-specific design constraints.

FurnDim

L-Shaped Two-Tone Executive Desk with Left Fixed Storage Return Specifications

EXEC-L-WAL-DG-2400
