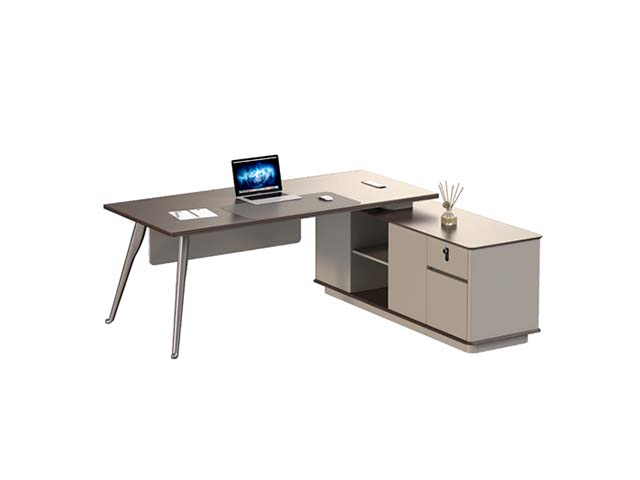

Product supplierL-Shaped Executive Office Desk with Side Storage Cabinet, 25 mm wood-composite substrate with dark matte laminate surface and matching edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 1600 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed desktop static load | 80 kg | |
|---|---|---|
| Pedestal top static load | 40 kg | |
| Drawer static load | 15 kg | |
| Open shelf static load | 10 kg per shelf | |
| Recommended user capacity | 1 person | |
| Product net weight | 75 kg | |
| Seated chair clearance | Suitable for a chair with 650 mm total depth | |
| Sliding drawer cycle reference | 50,000 cycles | |
| Hardware warranty target | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop panels | 25 mm wood-composite substrate with dark matte laminate surface and matching edge banding | |
|---|---|---|
| Return and cabinet panels | 18 mm wood-composite panels with light warm-gray matte laminate | |
| Support legs | Powder-coated or brushed-finish steel splayed cylindrical legs | |
| Rear modesty panel | Matte dark laminate wood-composite privacy panel | |
| Storage hardware | Steel drawer slides, concealed cabinet hinges, and a keyed drawer lock | |
| Edge and base protection | PVC edge banding with dark kick/base trim |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Rectangular rear grommet routes monitor and laptop cables from desktop to under-desk space | |
|---|---|---|
| Storage layout | Right return combines one open cubby, one door compartment, and one lockable upper drawer | |
| Seated work configuration | Central knee opening allows one person to work facing the main 1800 mm top | |
| Support structure | Two splayed metal legs carry the left side while the right side is supported by the storage cabinet |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private office use | Suits a manager or executive office where computer work, document storage, and visitor-side discussion occur in one workstation | |
|---|---|---|
| Open-plan supervisor station | Can be placed in a team-lead zone with the return used for printer, files, or signing space |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
