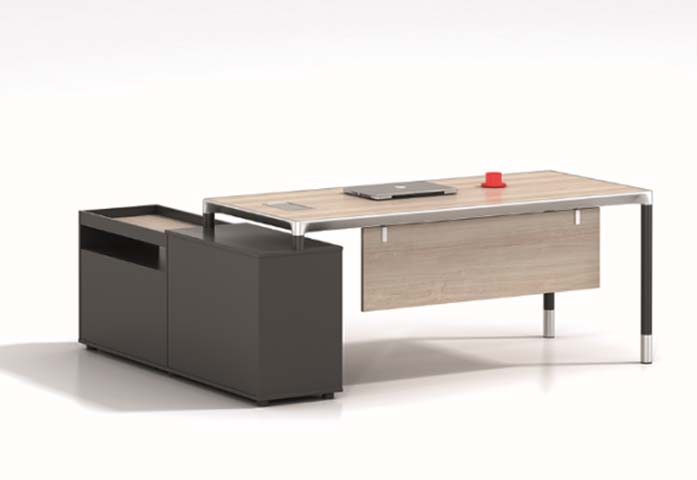

L-Shaped Executive Desk with Left Side Storage Return (model EXD-L2400-LGT-DG-01) is listed under Executive Office Desk for Boss/Executive, with overall dimensions of 2400 × 1800 × 760 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: two-tone,finish,L-shaped,configuration,fixed-height,integrated,storage,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 2400 x 1800 x 760 mm | |
|---|---|---|
| main desktop width | 1800 mm | |
| main desktop depth | 800 mm | |
| side return width | 1200 mm | |
| side return depth | 450 mm | |
| desktop thickness | 50 mm | |
| ABS edge band thickness | 2 mm | |
| seated knee clearance height | 660 mm | |
| knee clearance width | 1200 mm | |
| floor clearance under desk | 60 mm | |
| storage cabinet height | 660 mm | |
| metal leg outer diameter | 50 mm | |
| cable grommet diameter | 80 mm | |
| modesty panel thickness | 25 mm | |
| open shelf height on return | 250 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| desktop static load capacity | 100 kg | |
|---|---|---|
| drawer slide load rating | 25 kg | |
| drawer slide cycle rating | 50000 cycles | |
| product net weight | 110 kg | |
| surface abrasion resistance | 2000 cycles | |
| leveling foot adjustment range | 15 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| main work surface | 25mm MDF core with scratch-resistant light wood grain melamine laminate | |
|---|---|---|
| side storage cabinet | 18mm particleboard core with dark grey matte melamine finish | |
| support legs | 1.5mm thick powder-coated steel with black/silver two-tone finish | |
| desktop edge trim | 0.8mm thick brushed silver aluminum extrusion | |
| modesty panel | 18mm thick light wood grain melamine engineered wood | |
| hardware components | Zinc-plated steel screws, dowels, and adjustable plastic leveling feet |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| cable management | 80mm diameter pass-through grommet near return junction, plus under-desk cable tray | |
|---|---|---|
| storage configuration | Left return includes 1 open shelf, 2 enclosed cabinet compartments, 1 file drawer | |
| levelling adjustment | 15mm height-adjustable feet on all leg and cabinet base points | |
| modesty privacy panel | Full-width suspended wood panel blocks view of user’s lap from front |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| number of shipping cartons | 4 | |
|---|---|---|
| longest carton dimensions | 2500 x 900 x 120 mm | |
| total shipping volume | 0.37 m³ | |
| 20ft container loading capacity | 36 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| private manager office | Single-user executive workspace with integrated storage for files and office supplies | |
|---|---|---|
| home executive office | Premium work from home setup with dedicated storage and cable management for devices |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables – Part 1: Dimensions, applicable to seated work surface height and clearance | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Office work tables – Part 2: Mechanical safety requirements, applicable to stability and load | |
| EN 13722:2004 | Furniture – Storage units for office use, applicable to side cabinet performance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products standard, applicable to desk load, stability, and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units standard, applicable to side cabinet and drawer performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to all wood-based desk components | |
|---|---|---|
| GB/T 3327-2016 | Office desks and tables, applicable for structural stability and dimension verification | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to all wood-based desk components; 2. GB/T 3327-2016: Office desks and tables, applicable for structural stability and dimension verification; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
