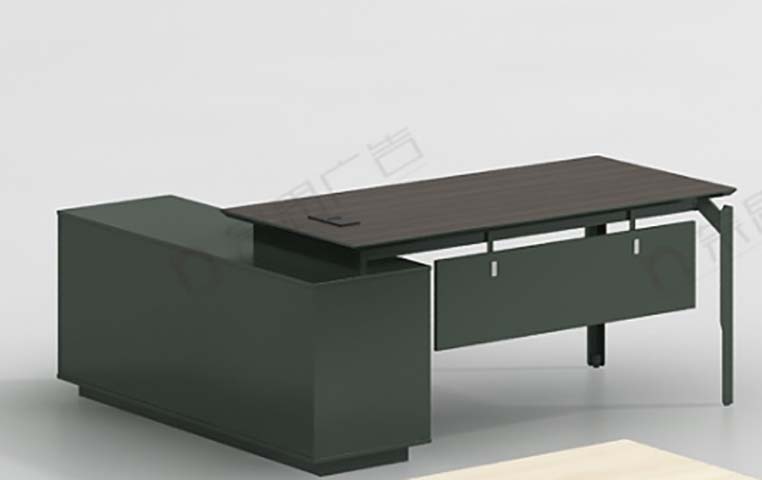

Product supplierL-Shaped Fixed-Height Executive Office Desk with Left Storage Return, E0-grade engineered wood with dark woodgrain melamine finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2200 × 1800 × 750 mm | |
|---|---|---|
| Overall footprint | 2200 x 1800 x 750 mm | |
| Main desktop panel thickness | 25 mm | |
| Main work surface depth | 800 mm | |
| Left return cabinet dimensions | 1600 x 600 x 700 mm | |
| Suspended front drawer panel height | 350 mm | |
| Under-desk seated knee clearance height | 650 mm | |
| Under-desk knee clearance width | 1200 mm | |
| Cable management grommet diameter | 80 mm | |
| Right metal leg cross-section width | 50 mm | |
| Edge banding thickness | 2 mm | |
| Central support leg diameter | 60 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static uniform load capacity | 100 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 80000 cycles | |
| Surface abrasion resistance rating | 2000 revolutions | |
| Net product weight | 180 kg | |
| Recommended user count | 1 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main work surface | E0-grade engineered wood with dark woodgrain melamine finish | |
|---|---|---|
| Cabinet panels and drawer fronts | E0-grade engineered wood with dark green matte powder coating | |
| Right support leg | 1.5mm thick powder-coated steel with angled profile | |
| Central support leg | 1.5mm thick powder-coated steel with adjustable leveling foot | |
| Return cabinet base | Engineered wood plinth base with integrated levelers | |
| Drawer hardware | Zinc alloy recessed pull handles with soft-close ball-bearing slides | |
| Cabinet door hardware | Soft-close steel hinges with matte black finish | |
| Edge banding | 2mm thick PVC impact-resistant edge banding on all exposed panels | |
| Cable grommet | ABS plastic rectangular cable port with brushed finish | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Rectangular desktop grommet routes power/data cables to under-desk space | |
|---|---|---|
| Storage configuration | Left return cabinet provides enclosed file/office supply storage, suspended front drawer holds stationery | |
| Leveling adjustment | Central support leg and return base levelers compensate for uneven floors up to 15mm | |
| Drawer operation | Soft-close drawer slides prevent slamming and support full extension access | |
| Surface maintenance | Stain-resistant matte finish allows cleaning with standard office disinfectants | |
| Assembly structure | Knock-down design with cam-lock and bolt hardware for on-site assembly | |
| Modesty function | Suspended front drawer panel acts as modesty panel to conceal seated user lower body | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office | Suitable for manager/CEO offices requiring integrated work surface and closed storage | |
|---|---|---|
| Home office workspace | Fits dedicated home office rooms for remote senior professionals requiring ample work space | |
| Corporate meeting side workspace | Usable as a supplementary work surface in boardroom adjunct spaces for document preparation | |
| Small open-plan management pod | Suitable for partitioned management workstations in open office layouts |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to static load and stability testing | |
|---|---|---|
| EN 527-2:2016 | Office work tables dimensional and ergonomic requirements, applicable to knee clearance and work surface height | |
| EN 13722:2004 | Office furniture storage units performance requirements, applicable to return cabinet and drawer durability |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance for commercial use | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for cabinet and drawer load capacity and cycle testing |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to panel construction and finish durability | |
|---|---|---|
| GB/T 3327-2017 | Performance and dimensional requirements for office desks, applicable to work surface height and clearance | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, recommended E0 grade acceptance <0.05mg/m³ |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to panel construction and finish durability; 2. GB/T 3327-2017: Performance and dimensional requirements for office desks, applicable to work surface height and clearance; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, recommended E0 grade acceptance <0.05mg/m³; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
