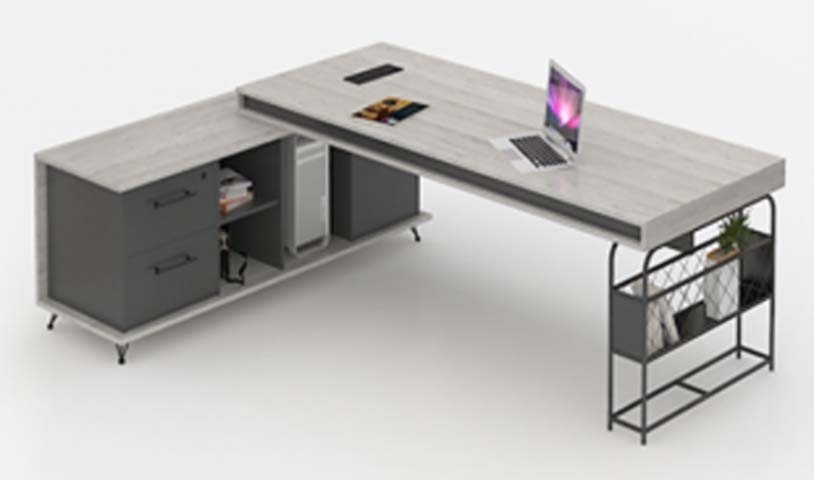

Grey Concrete Effect L-Shaped Executive Desk with Mobile Storage Return (model EXD-L2400-CG-01) is listed under Executive Office Desk for Boss/Executive, with overall dimensions of 2400 × 2000 × 760 mm and main material of Particle‑board (PB). Load capacity: 136 kg. Certifications: Industrial,style,L-shaped,layout,mobile,storage,return,metal,open-frame,support. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 2400 x 2000 x 760 mm | |
|---|---|---|
| Main desktop thickness | 29 mm | |
| PVC edge banding thickness | 3 mm | |
| Knee clearance height under main desk | 690 mm | |
| Knee clearance width at central opening | 800 mm | |
| Left storage return width | 600 mm | |
| Left storage return depth | 2000 mm | |
| Drawer internal height per file drawer | 300 mm | |
| Open CPU shelf internal dimensions | 300 x 500 x 500 mm | |
| Right steel support frame tubing section | 60 x 30 mm | |
| Cable grommet diameter | 50 mm | |
| Right side storage shelf dimensions | 450 x 250 x 500 mm | |
| Caster wheel diameter on mobile return | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product net weight | 85 kg | |
|---|---|---|
| Desktop static load capacity | 136 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Recommended maximum user weight for seated use | 136 kg | |
| Leveling adjustment range on support feet | 25 mm | |
| Warranty period | 1 year | |
| Desktop surface static load rating | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop and return panels | 29mm particleboard core with concrete-effect thermofused melamine finish | |
|---|---|---|
| Support frame and side rack | Powder-coated black carbon steel tubing, welded joints | |
| Edge protection | 3mm thick PVC T-mold edge banding on all exposed panel edges | |
| Drawer hardware | Cold-rolled steel ball-bearing drawer slides, black metal pull handles | |
| Cable management components | ABS plastic cable grommet covers, optional under-desk steel wire tray | |
| Mobility components | 50mm hard nylon swivel casters with brake locks on left return |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated cable management | Top-mounted cable grommet routes power/data cables from desktop to under-desk space | |
|---|---|---|
| Mobile storage return | Left-side castered return with locking brakes allows repositioning for flexible layout | |
| File storage system | Two lockable file drawers accommodate hanging letter/legal files for document organization | |
| Open storage zones | Built-in open shelves hold CPU tower, books, and office supplies for accessible storage |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Ideal for manager/CEO offices, provides ample work and storage space for professional use | |
|---|---|---|
| Home office workspace | Suitable for dedicated home offices, combines work surface and integrated storage for productivity |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applicable to safety and strength requirements for office work desks | |
|---|---|---|
| EN 527-2:2016 | Applicable to dimensional and ergonomic requirements for office desks |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Applicable to performance requirements for desk products |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable to general technical requirements for wooden office furniture | |
|---|---|---|
| GB/T 3327-2017 | Applicable to mechanical and physical performance requirements for desks | |
| GB 18584-2001 | Applicable to formaldehyde emission limits for wooden furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable to general technical requirements for wooden office furniture; 2. GB/T 3327-2017: Applicable to mechanical and physical performance requirements for desks; 3. GB 18584-2001: Applicable to formaldehyde emission limits for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
