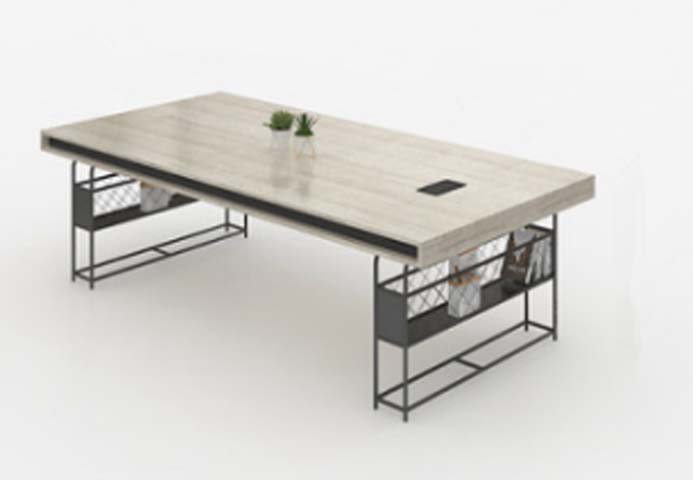

Light Wood Grain Rectangular Conference Table with Dual Diamond-Mesh Side Storage Shelves and Integrated Cable Grommet (model CT-LW2400-BF-DS) is listed under Conference Table, with overall dimensions of 2400 × 1200 × 750 mm and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: industrial,style,open,metal,frame,integrated,cable,management,dual,side,storage,rectangular,meeting,table. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 1200 x 750 mm | |
|---|---|---|
| Tabletop thickness | 50 mm | |
| Under-table knee clearance height | 640 mm | |
| Side shelf length per unit | 1200 mm | |
| Side shelf depth | 280 mm | |
| Side shelf height from floor | 390 mm | |
| Clearance between side shelf and tabletop | 310 mm | |
| Cable grommet dimensions | 150 x 80 mm | |
| Steel frame tube outer dimension | 40 x 20 mm | |
| Diamond wire mesh rail opening size | 50 mm | |
| Adjustable foot pad diameter | 30 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop static load capacity | 120 kg | |
|---|---|---|
| Seating capacity | 8 people | |
| Net product weight | 77 kg | |
| Tabletop surface abrasion resistance | 2000 cycles | |
| Frame powder coating salt spray resistance | 48 hours | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop panel | 25mm E1 grade engineered wood core with 25mm thick edge banding, light oak melamine finish | |
|---|---|---|
| Support frame | 1.2mm wall thickness black powder-coated rectangular steel tube, sled-style end assemblies | |
| Side shelf panels | 0.8mm thick black steel flat shelf surfaces with diamond-pattern steel wire mesh guard rails | |
| Cable management grommet | Matte black ABS plastic recessed cable port with removable cover | |
| Foot pads | Anti-slip TPE rubber adjustable leveling feet, threaded steel insert | |
| Fasteners | Zinc-plated steel bolt and cam lock hardware for knockdown assembly |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Recessed tabletop grommet routes power, AV and network cables from tabletop to under-table space | |
|---|---|---|
| Leveling adjustment | Threaded foot pads adjust up to 10mm to compensate for uneven floor surfaces | |
| Knockdown assembly | Bolt-together assembly requires 50 minutes for two adults with included hex key | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate meeting rooms | Seats 8 participants for team discussions, presentations and client meetings with cable access for AV equipment | |
|---|---|---|
| Open office collaboration zones | Open shelf storage keeps reference materials accessible during brainstorming sessions |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks - Part 1: Dimensions, applicable to table height and clearance verification | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Office work tables - Part 2: Mechanical safety requirements, applicable to structural load testing | |
| EN 15372:2016 | Furniture - Strength, durability and safety for non-domestic tables, applicable to commercial conference table durability |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products standard, applicable to tabletop static load, frame stability and durability testing for commercial use |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop panel structural and finish performance | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel frame strength and coating performance | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture, applicable to panel emission limits |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop panel structural and finish performance; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frame strength and coating performance; 3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture, applicable to panel emission limits; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
