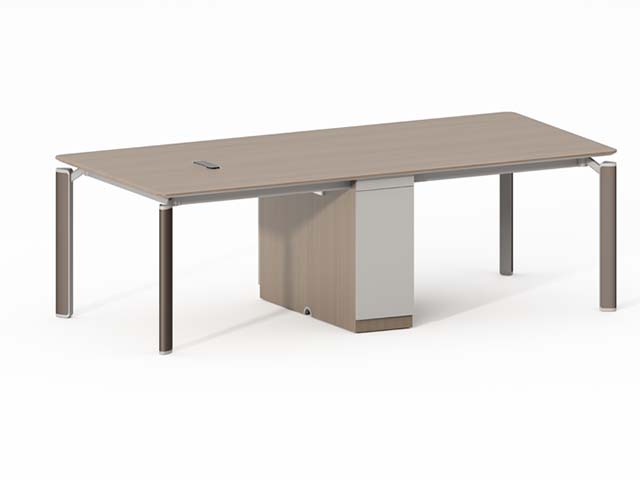

Light Wood Grain Fixed Height Executive Office Desk (model EXD-LW2000-CYL-01) is listed under Conference Table, with overall dimensions of 2000 × 900 × 750 mm and main material of Particle‑board (PB). Load capacity: 130 kg. Certifications: Fixed-height,Built-in,cable,management,Cylindrical,metal,legs,Central,modesty,panel,Seated,work,desk. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 2000 x 900 x 750 mm | |
|---|---|---|
| Worktop thickness | 25 mm | |
| Edge band thickness | 2 mm | |
| Cylindrical support leg diameter | 50 mm | |
| Central modesty/cable pedestal dimensions | 1200 x 500 x 600 mm | |
| Desktop cable grommet diameter | 80 mm | |
| Modesty panel thickness | 16 mm | |
| Seated knee clearance height under worktop | 700 mm | |
| Left side knee bay width | 700 mm | |
| Right side knee bay width | 700 mm | |
| Floor clearance under worktop apron | 10 mm | |
| Cable exit diameter at pedestal base | 60 mm | |
| Leg wall thickness | 1.5 mm | |
| Pedestal plinth height | 50 mm | |
| Worktop corner radius | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop static load capacity | 130 kg | |
|---|---|---|
| Levelling foot adjustment range | 10 mm | |
| Product net weight | 120 kg | |
| Finish abrasion resistance | 400 cycles | |
| Recommended user weight capacity | 150 kg | |
| Warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop construction | 25mm melamine-faced chipboard (MFC), 680 kg/m³ density, 2mm ABS edge banding | |
|---|---|---|
| Support legs | Epoxy powder-coated cylindrical steel legs with nylon levelling feet | |
| Central modesty pedestal | 16mm MFC panel construction with dual-tone light wood and light grey finish | |
| Structural apron | Powder-coated steel support apron connecting legs beneath worktop | |
| Cable grommet | Brushed ABS plastic port with integrated soft-brush seal | |
| Levelling feet | Glass-filled nylon adjustable feet with non-slip rubber base |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | 80mm desktop grommet routes cables to central pedestal with 60mm floor exit | |
|---|---|---|
| Floor levelling adjustment | Threaded nylon feet adjust up to 10mm to compensate for uneven flooring | |
| Privacy screening | Full-height central modesty panel blocks under-desk visibility for seated users | |
| Installation configuration | Fixed-height non-adjustable design for standard seated office work use |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office spaces | Serves as primary single-user work surface for manager or director roles | |
|---|---|---|
| Open-plan workstations for senior staff | Central modesty panel provides privacy without side storage bulk |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Defines safety and dimensional requirements for office work tables and desks | |
|---|---|---|
| EN 527-2:2016 | Specifies mechanical safety and strength test methods for office desks | |
| EN 527-3:2012 | Sets stability test requirements for free-standing office desks |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| GB/T 3326-2016 | Applies to desk dimensional, strength and stability requirements for office furniture | |
|---|---|---|
| GB/T 17657-2013 | Applies to surface physical and chemical property testing for wood-based panels |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applies to desk dimensional, strength and stability requirements for office furniture; 2. GB/T 17657-2013: Applies to surface physical and chemical property testing for wood-based panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
