PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 1200 × 750 mm
Tabletop shape	Racetrack rectangular top with semicircular end caps and softened edge profile
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended seating capacity	12 persons
Distributed tabletop load	160 kg
Central enclosure load	30 kg
Per-seat working load	15 kg
Product net weight	105 kg
Leveling adjustment	10 mm total adjustment
Recommended floor loading	1.2 kPa occupied load
Warranty target	5 years
Seating capacity envelope	2000 x 500 mm central open zone
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop substrate	25 mm moisture-resistant engineered wood board with 25 mm applied edge build-up to a 50 mm visual profile
Tabletop surface	Warm light-grey matte laminate or melamine finish with matching impact-resistant edge banding
Center strip and enclosure	Dark grey engineered wood panels with matte vertical surface and silver-grey side trim
Leg frame	Four splayed silver-grey powder-coated steel legs, two at each table end
Leveling feet	Black injection-molded polymer or nylon adjustable glides with steel threaded inserts
Cable hardware	Two recessed black polymer cable ports with hinged or sliding covers and one side-mounted power/data faceplate

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Central cable routing	Cables pass from two tabletop ports into the enclosed floor-standing center box through a 350 mm management strip
Power and data access	One side-mounted 86-type faceplate provides a modular power/data connection point on the central enclosure
Two-section top assembly	The tabletop splits into left and right meeting surfaces joined at the central strip for site assembly and transport
Freestanding installation	Four splayed end legs and the central enclosure support the table without wall fixing, using adjustable floor glides

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Gross weight	125 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Boardroom and meeting room	Suitable for 12person corporate meetings where laptops, conference phones and tabletop power/data access are required
Training and project rooms	Suitable for grouped laptop work, document review and video meetings because the central enclosure routes cables away from seated users

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 15372 applicability	EN 15372 may be specified for strength, durability and safety requirements for non-domestic tables
EN 527-3 applicability	EN 527 may be used as a reference for stability and mechanical strength tests for office work surfaces
EN 13501-1 applicability	EN 13501 may be requested when project specifications require classified surface reaction-to-fire performance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 applicability	GB/T 3324 may be specified for wooden furniture dimensional tolerances, appearance and structural inspection
GB/T 3325 applicability	GB/T 3325 may be used for metal furniture inspection where steel legs and frame components are supplied
GB 18584 applicability	GB 18584 may be requested for indoor wooden furniture limited substance verification before acceptance
GB/T 10357.5 applicability	GB/T 10357.5 may be used for table strength and durability test reference

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 applicability: GB/T 3324 may be specified for wooden furniture dimensional tolerances, appearance and structural inspection;
2. GB/T 3325 applicability: GB/T 3325 may be used for metal furniture inspection where steel legs and frame components are supplied;
3. GB 18584 applicability: GB 18584 may be requested for indoor wooden furniture limited substance verification before acceptance;
4. GB/T 10357.5 applicability: GB/T 10357.5 may be used for table strength and durability test reference;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CT-RAC-3200-1200-CG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CT-RAC-3200-1200-CG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CT-RAC-3200-1200-CGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The racetrack conference table presents a balanced two-tone appearance suited to organized meeting environments. Its warm light-grey tabletop combines a rectangular work surface with semicircular end caps and a softened edge profile, while the dark grey central modesty and cable enclosure create a visual division along the length of the table. Four splayed silver-grey legs, positioned two at each end, support the top with an open, modern base that keeps sight lines clear and preserves access around the seating perimeter. Construction uses a 25 mm moisture-resistant engineered wood board with applied edge build-up, producing a substantial 50 mm visual profile. The finished top thickness is 45 mm, and the surface is finished in warm light-grey matte laminate or melamine with matching impact-resistant edge banding. The central strip and enclosure are formed from dark grey engineered wood panels with a matte vertical surface and silver-grey side trim. Each steel leg has an 80 mm main section with a 2 mm metal wall and a silver-grey powder-coated finish. Black injection-molded polymer or nylon leveling glides with steel threaded inserts provide up to 10 mm of total adjustment for alignment on uneven floors. A central cable system is integrated into the table rather than added as a separate surface fixture. Two recessed black polymer cable ports, fitted with hinged or sliding covers, allow cables to pass from the tabletop into the floor-standing central enclosure through a 350 mm management strip. The cable opening is 80 mm in diameter, and the internal tray offers 120 mm of depth. A side-mounted 86-type faceplate on the enclosure supplies a modular power and data connection point. This arrangement supports laptops, conference phones, and video meeting equipment while routing cabling away from seated users. The enclosure is rated for 30 kg of load, the distributed tabletop load is 160 kg, and the per-seat working load is 15 kg. The table is designed for 12 persons, with 680 mm high and 900 mm wide effective knee clearance at each main seat. It is well suited to corporate boardrooms, meeting rooms, training spaces, and project rooms where laptop-based work, document review, group collaboration, and connected video meetings are common. Its freestanding structure requires no wall fixing. Procurement planning should account for the two-section tabletop, which separates into left and right meeting surfaces joined at the central strip for transport and site assembly. The product is supplied as one set in two cartons, with a reference assembly time of 40 minutes. Its net weight is 105 kg, while the reference packaged gross weight is 90 kg per set across two cartons. Buyers should also confirm access routes, floor loading, cable outlet locations, and the desired power and data modules before installation. The table is offered as an unbranded model, CT-RAC-3200-CG.

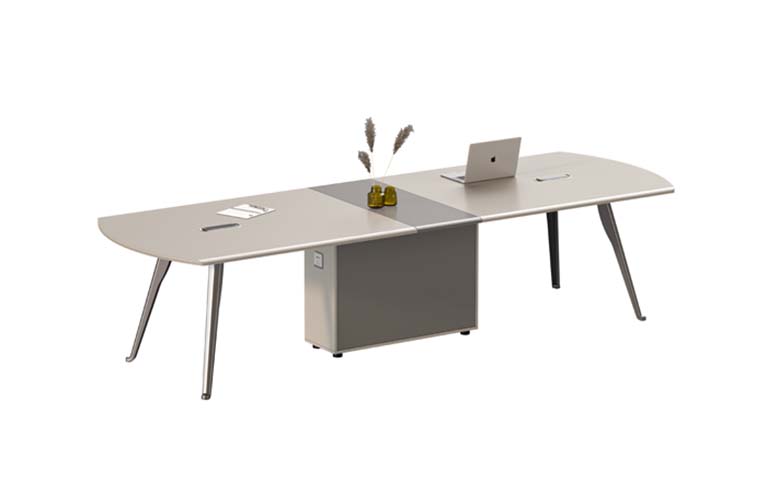

Racetrack Conference Table with Central Cable Management Specifications
