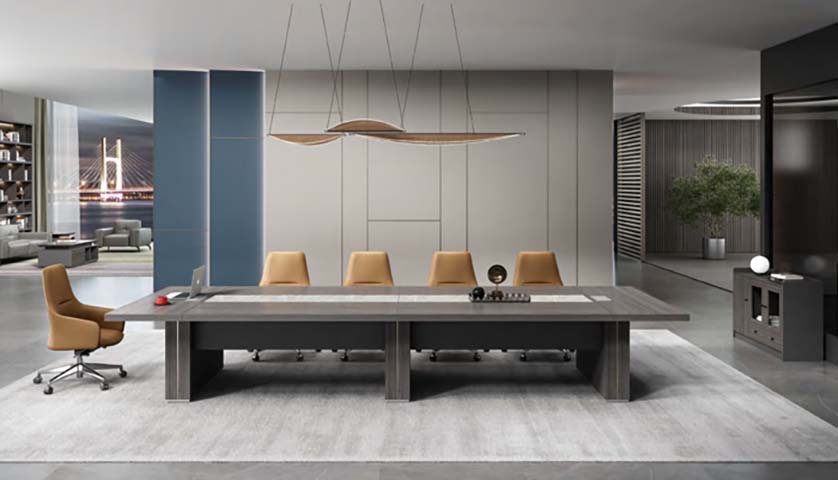

Gray Wood Veneer 10-Person Rectangular Conference Table with Three Pedestal Bases (model CF-TP3-3200GR) is listed under Conference Table, with overall dimensions of 3200 × 1400 × 770 mm and main material of Particle‑board (PB). Load capacity: 300 kg. Certifications: Modern,commercial,style,fixed,rectangular,top,three-pedestal,support,structure. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall table dimensions | 3200 x 1400 x 770 mm | |
|---|---|---|
| Tabletop thickness | 50 mm | |
| Under-table knee clearance height | 670 mm | |
| Central inlaid writing pad strip width | 400 mm | |
| Pedestal base section width | 180 mm | |
| Modesty panel height | 350 mm | |
| Edge seating position spacing per person | 600 mm | |
| End seating position clearance from end edge | 300 mm | |
| Base foot contact pad diameter | 60 mm | |
| Table edge overhang past end pedestals | 200 mm | |
| Minimum floor area required for setup | 4200 x 2400 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed tabletop static load capacity | 300 kg | |
|---|---|---|
| Net product weight | 210 kg | |
| Seating capacity | 10 people | |
| Finish surface abrasion resistance | 2000 cycles | |
| Formaldehyde emission level | 0.124 mg/m³ | |
| Leveling adjustment range per foot pad | 10 mm | |
| Structural warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | 25mm thick E1-grade MDF board | |
|---|---|---|
| Tabletop surface | 0.6mm thick gray oak wood veneer with matte water-based lacquer | |
| Pedestal bases and modesty panel | Solid engineered wood with matching gray wood grain laminate | |
| Central inlay strip | Matte dark gray anti-scratch decorative writing surface | |
| Connecting hardware | Zinc-plated steel M8 bolt assembly | |
| Floor contact pads | Non-marking TPE rubber leveling pads |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management compatibility | Pre-drilled grommet positions for power and data cable routing | |
|---|---|---|
| Stability design | Three symmetrically placed dual-column pedestals eliminate table wobble during meetings | |
| Assembly requirement | Knock-down assembly connecting tabletop sections to pedestals via bolted hardware | |
| Surface maintenance | Stain-resistant lacquer finish allows wipe cleaning with standard office cleaning products |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate boardroom | Fits 10-person executive meetings with sufficient surface space for laptops and documents | |
|---|---|---|
| Large private office | Serves as executive meeting table for in-office client and team discussions |
EU Market Access Requirements* EN Standards
| EN 527-3:2004 | Safety and structural performance test methods for office tables, applicable for stability verification | |
|---|---|---|
| EN 13722:2004 | Test methods for surface resistance to abrasion and stains on office furniture surfaces |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk products, covering static load, stability and durability testing for office tables |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and dimensional acceptance | |
|---|---|---|
| GB 18580-2017 | E1 formaldehyde emission limit requirement for engineered wood panels used in indoor furniture | |
| GB/T 4897.3-2003 | Performance requirements for particleboard/MDF used in furniture structural applications |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and dimensional acceptance; 2. GB 18580-2017: E1 formaldehyde emission limit requirement for engineered wood panels used in indoor furniture; 3. GB/T 4897.3-2003: Performance requirements for particleboard/MDF used in furniture structural applications; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
