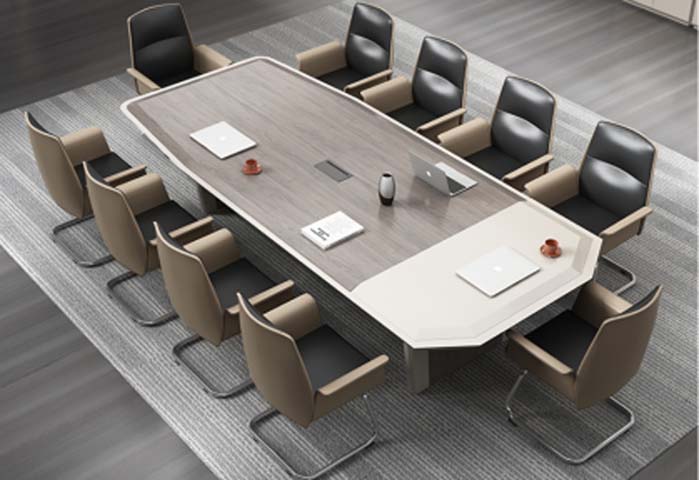

Two-Tone Boat-Shaped 10-Person Conference Table with Central Cable Management (model CONF-BOAT-3050-GW-10P) is listed under Conference Table, with overall dimensions of 3050 × 1220 × 750 mm and main material of Particle‑board (PB). Load capacity: 265 kg. Certifications: Modern,commercial,boat-shaped,silhouette,two-tone,finish,integrated,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall table dimensions | 3050 x 1220 x 750 mm | |
|---|---|---|
| Tabletop thickness | 30 mm | |
| Tapered end width | 1060 mm | |
| Under-table knee clearance height | 680 mm | |
| Central cable cutout dimensions | 300 x 150 mm | |
| End support panel width | 150 mm | |
| Edge banding thickness | 2 mm | |
| Perimeter seated leg depth clearance | 450 mm | |
| White accent end section length | 750 mm | |
| Leveling glide adjustment height | 15 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed tabletop static load capacity | 265 kg | |
|---|---|---|
| Seating capacity | 10 people | |
| Surface scratch resistance rating | 2000 abrasion cycles | |
| Net product weight | 50 kg | |
| Surface stain and scald resistance | Class B commercial grade | |
| Warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main tabletop surface | Grey woodgrain thermally fused melamine laminate over MDF core | |
|---|---|---|
| Accent end section | Solid white thermally fused melamine laminate over MDF core | |
| Table edge trim | 2mm impact-resistant PVC edge banding, light neutral finish | |
| End support bases | Laminate-clad manufactured wood solid panels, silver grey metal trim | |
| Floor contact glides | Nylon adjustable leveling foot pads, 30mm diameter | |
| Under-table cable channel | Powder-coated steel wire management trough |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Central cable management port | Recessed cutout routing power/data cables from surface to under-table trough | |
|---|---|---|
| Leveling adjustment | Adjustable foot pads compensate for 15mm of uneven floor height | |
| Perimeter seating access | 360-degree unobstructed knee clearance for 10 seated users along all sides | |
| Sightline optimization | Tapered boat-shaped profile improves face-to-face visibility across the table |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate boardrooms | Sized for 10-person formal executive meetings with integrated AV connectivity | |
|---|---|---|
| Office training suites | Durable commercial laminate surface withstands frequent daily meeting use |
EU Market Access Requirements* EN Standards
| EN 527-3:2003 | Office worktables safety and strength test methods, applicable for structural performance validation | |
|---|---|---|
| EN 14372:2004 | Furniture hardware performance requirements, applicable for connector and fastener testing |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Office desk products standard, applicable for desk load, stability and durability verification | |
|---|---|---|
| ANSI/BIFMA X7.1-2022 | Furniture emissions standard, applicable for low-VOC material compliance screening |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural safety testing | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for table core material quality verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural safety testing; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable for table core material quality verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
