Automatic mm / inch conversion · Core engineering specifications

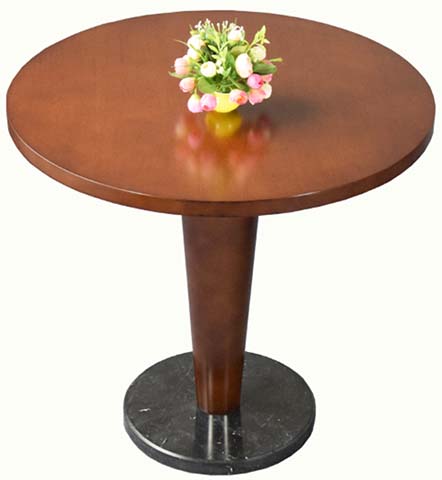

| Overall dimensions | 800 x 800 x 750 mm | |
|---|---|---|
| Tabletop diameter | 800 mm | |
| Tabletop edge thickness | 40 mm | |
| Tapered column top diameter | 150 mm | |
| Tapered column bottom diameter | 100 mm | |
| Base disc diameter | 450 mm | |
| Base disc thickness | 30 mm | |
| Under-table knee clearance height | 690 mm | |
| Floor to column underside clearance | 0 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Net product weight | 35 kg | |
|---|---|---|
| Static tabletop uniform load capacity | 100 kg | |
| Static base tip load (edge applied) | 20 kg | |
| Seating capacity | 2 persons | |
| Surface abrasion resistance (recommended) | 3000 cycles | |
| Edge impact resistance (recommended) | 450 mm drop | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Tabletop substrate | 18mm thick MDF core | |
|---|---|---|
| Tabletop surface finish | Walnut-toned wood veneer with semi-gloss polyurethane coating | |
| Tabletop edge profile | Rounded solid wood edge banding, 40mm total thickness | |
| Support column | Tapered solid hardwood or veneer-wrapped MDF column, walnut finish | |
| Base disc core | High-density particleboard or engineered stone composite, dark charcoal finish | |
| Base edge trim | Polished chrome-plated metal edge band | |
| Column-to-base mounting hardware | Zinc-plated steel M8 mounting bolts and threaded inserts | |
| Underside tabletop hardware | Steel mounting plate with 4 bolt fixings | |
| Floor contact pads | 8mm thick non-slip rubber pads | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Seating arrangement | Accommodates two dining chairs placed around the perimeter with no leg obstruction from central pedestal | |
|---|---|---|
| Surface utility | Semi-gloss sealed surface supports direct placement of drinkware, plates, and small decorative items with stain resistance for food and beverage spills | |
| Assembly requirement | Knock-down construction requiring 4 bolt connections between tabletop, column and base | |
| Stability performance | Weighted 450mm diameter disc base prevents tipping when loads are applied to the table edge | |
| Floor protection | Recommended rubber foot pads under base disc prevent scratching of hardwood, tile or vinyl flooring and allow minor leveling adjustment | |
| Surface maintenance | Smooth non-porous finish allows removal of common food and drink stains with a damp soft cloth, avoiding harsh abrasive cleaners that damage the glossy veneer | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Number of packages | 1 | |
|---|---|---|
| Reference carton dimensions | 850 x 850 x 120 mm | |
| Reference gross weight | 40 kg | |
| Reference carton volume | 0.087 CBM | |
| Assembly time | 20 minutes | |
| 20ft GP container loading quantity | 320 units | |
| 40ft HQ container loading quantity | 760 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set |
Recommended spaces / users / usage modes
| Residential dining nooks | Fits compact kitchen or breakfast nook spaces for two-person casual meals, with small footprint that leaves surrounding circulation space | |
|---|---|---|
| Cafe and bistro seating | Suitable for small commercial food service areas paired with lightweight dining chairs for individual or couple seating | |
| Hotel guest room dining areas | Appropriate for studio or boutique hotel rooms as a compact work and dining surface, with stable pedestal design that avoids leg obstruction | |
| Office breakout spaces | Usable as a small meeting or refreshment table in staff lounge areas for short breaks and informal discussions | |
| Reception waiting areas | Works as a side or accent table to hold reading materials, beverages and small decorative arrangements in lounge waiting zones | |
| Small balcony or patio indoor use | Sized for covered balcony spaces as a compact dining surface for two people, intended for indoor or fully sheltered outdoor use only |
EU Market Access Requirements* EN Standards
| EN 12521:2015 Furniture - Strength, durability and safety - Requirements for domestic tables | Applies to structural safety, stability and durability performance requirements for domestic dining use | |
|---|---|---|
| EN 13722:2004 Furniture - Test methods for the assessment of surface resistance to cold liquids | Applies to verification of stain resistance for food and beverage spills on the tabletop surface |
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | Applies to dimensional tolerance, edge finishing, structural stability and surface quality acceptance for this wood-based dining table | |
|---|---|---|
| GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | Applies to formaldehyde emission limits for all wood-based panel components used in the tabletop, column and base | |
| GB/T 10357.1-2013 Test of mechanical properties of furniture - Strength and durability of tables | Applies to static load, impact and fatigue testing for tabletop structure and base stability verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: Applies to dimensional tolerance, edge finishing, structural stability and surface quality acceptance for this wood-based dining table; 2. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Applies to formaldehyde emission limits for all wood-based panel components used in the tabletop, column and base; 3. GB/T 10357.1-2013 Test of mechanical properties of furniture - Strength and durability of tables: Applies to static load, impact and fatigue testing for tabletop structure and base stability verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
