Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall external dimensions | 3500 x 900 x 1050 mm | |
|---|---|---|
| Work surface height | 1050 mm | |
| Work surface thickness | 50 mm | |
| Knee clearance height under work surface | 720 mm | |
| Front facade cantilever overhang | 120 mm | |
| Integrated LED strip recess depth | 15 mm | |
| End curve radius (rounded right terminal) | 450 mm | |
| Base contact foot length | 300 mm | |
| Inner work zone depth (staff side) | 700 mm | |
| Edge band thickness (seamless solid surface) | 12 mm | |
| LED strip linear length per channel | 3200 mm | |
| Wall clearance required for installation | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 150 kg | |
|---|---|---|
| Unit net weight | 480 kg | |
| Recommended reception staff capacity | 2 people | |
| Front facade impact resistance | 10 J | |
| LED strip operational lifespan | 50000 hours | |
| Surface stain resistance rating | Grade 4 | |
| Surface abrasion resistance | 3000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Exterior work surface and front facade | Matte white thermoformed acrylic solid surface, 12mm thick seamless construction | |
|---|---|---|
| Internal structural frame | Reinforced square steel tube frame, 1.5mm wall thickness, powder coated internal finish | |
| Ambient lighting components | 24V recessed SMD linear LED strips, frosted diffuser cover, aluminum channel housing | |
| Base support feet | Stainless steel leveling feet, padded non-slip floor contact pads | |
| Internal cable management | PVC cable chases with removable access panels, integrated grommets for power/data | |
| Surface finish coating (alternative value option) | Matte PU baked paint over fiberglass reinforced plastic substrate |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

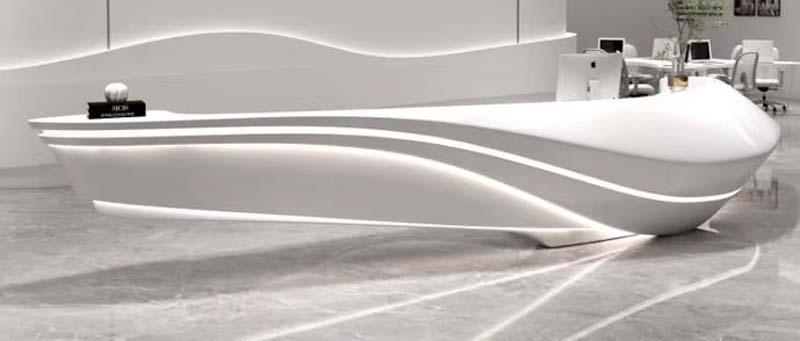

| Integrated ambient lighting function | Dual recessed linear LED channels cast soft glow along undulating front contours, switch-controlled warm white 3000K output | |
|---|---|---|
| Cable management system | Concealed internal chases route power, data and security cables from desktop grommets to floor outlets, eliminating exposed wiring | |
| Cantilevered front facade design | Fully enclosed sculptural front panel hides internal workspace and cabling, with cantilevered lower edge creating a floating visual effect | |
| Seamless hygienic surface function | Non-porous seamless work surface allows easy disinfection and cleaning, suitable for high-traffic public lobby use |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Premium corporate office lobbies | Sculptural organic form creates a strong brand first impression for formal entry spaces | |
|---|---|---|
| High-end hotel check-in areas | Seamless clean finish matches luxury hospitality interior design schemes |
EU Market Access Requirements* EN Standards
| EN 15372:2016 | Furniture - Strength, durability and safety for non-domestic office storage and work surfaces | |
|---|---|---|
| EN 60598-2-25:2016 | Safety requirements for luminaires used in furniture integration, for LED components | |
| EN 13722:2004 | Furniture - Test methods for surface resistance to cold liquids, for worktop finish verification |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk products, applicable for load, stability and durability testing for commercial reception work surfaces | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard, optional for low-emission material selection |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional stability and finish quality testing | |
|---|---|---|
| GB 7000.201-2008 | Safety requirements for fixed general-purpose luminaires, applicable for integrated LED lighting components | |
| GB/T 4897.3-2006 | Particleboard requirements for structural use in furniture, if wood-based substrate is specified |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional stability and finish quality testing; 2. GB 7000.201-2008: Safety requirements for fixed general-purpose luminaires, applicable for integrated LED lighting components; 3. GB/T 4897.3-2006: Particleboard requirements for structural use in furniture, if wood-based substrate is specified; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
