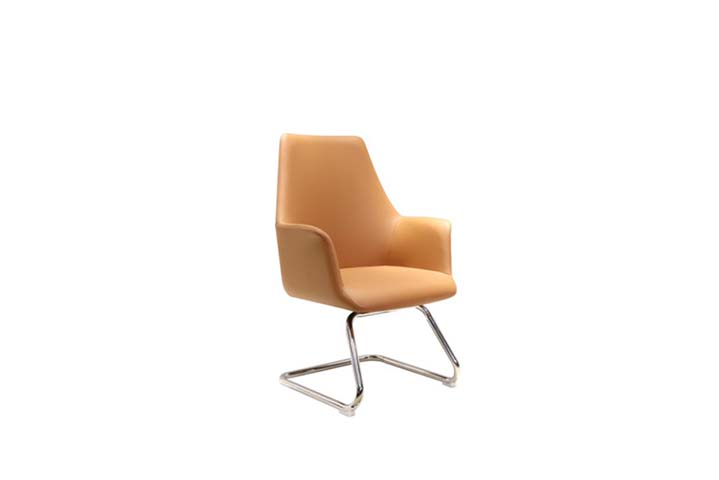

Tan Upholstered Cantilever Visitor Chair with Integrated Armrests (model CVC-TAN-CS01) is listed under Executive Boss Chair. Dimensions: 630 × 670 × 940 mm. Materials: Tan smooth synthetic leather or coated fabric, visible continuous face on seat, back, and arm rolls; material grade requires BOM confirmation.. Load capacity: 110 kgf. Product Features: Tan,upholstery,integrated,armrests,cantilever,sled,base,polished,metal,frame,fixed,chair. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | JIULONGYOUSHENG | Model | CVC-TAN-CS01 |
| Overall dimensions (W × D × H) | 630 × 670 × 940 mm | Finished Seat Cushion Thickness | 90 mm |
| Backrest Padding Thickness | 70 mm | Lumbar Support Zone Height | 240 mm |
| Clear Width Between Armrests | 540 mm | Net weight | 14 kg |
| Recommended user weight | 160 kg per person | Back static load acceptance target | 110 kgf |
| Seat static load acceptance target | 160 kgf | Front-load stability target | 70 kgf |
| Cantilever cyclic durability target | 100,000 cycles | Floor glide bearing area | 300 mm2 per glide |
| Occupant capacity | 1 adult occupant | Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
| Back Foam Density Reference | 38 kg/m³ | Outer upholstery | Tan smooth synthetic leather or coated fabric, visible continuous face on seat, back, and arm rolls; material grade requires BOM confirmation. |
| Seat cushion | Molded polyurethane foam pad with an 80 mm crown thickness, concealed beneath the visible upholstery. | Back cushion | Shaped polyurethane back pad with a 60 mm visible padded thickness over a rigid inner carrier. |
| Inner support shell | Molded plywood or reinforced polymer seat-back carrier with a 10 mm structural thickness, inferred from the one-piece form. | Arm construction | Continuous upholstered arm bolsters integral with the side shell, padded at a 45 mm thickness. |
| Cantilever frame | Polished chrome-plated bent steel tube, 25 mm diameter and 1.5 mm wall thickness, forming two continuous side runners. | Frame finish | Mirror polished chrome plating with a 20 micron target plating system, subject to supplier finish specification. |
| Floor glides | Four replaceable polymer or nylon glides attached at runner ends for hard-floor protection. | Mounting plates | Steel underside mounting plates with welded or bolted frame joints, concealed below the seat. |
| Seam construction | Tailored perimeter seam with an 8 mm stitch pitch; fine stitching is suggested but not legible in the image. | Color offering | 1 visible tan color; production color count should be verified against supplier finish cards. |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | Fixed cantilever movement | The continuous sled frame provides controlled vertical flex with no swivel, gas lift, or recline mechanism. |
| Integrated arm support | Curved side arms provide elbow and forearm support at a fixed 670 mm floor height. | Entry and exit access | Open front sled base allows side and front access without a caster or foot-rest obstruction. |
| Floor protection | Four end-mounted polymer glides slide on hard floors and reduce direct metal contact. | Stacking capability | Non-stacking fixed frame |
| Back posture | Tall upright back provides shoulder-blade support for meeting and short-duration guest use. | Seat retention | Concealed steel plate connections secure the upholstered shell to both cantilever side frames. |
| Cleaning access | Smooth continuous upholstery and open metal base permit wipe cleaning under and around the seat. | Positioning | No wheels or brakes; the chair is repositioned by lifting or sliding on the four glides. |
| Adjustment locks | No adjustable locks are present, simplifying maintenance in shared conference areas. | Recline Angle / Lock Reference | 125° with 3suggested lock positions |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Carton Dimensions | 850× 420× 720 mm |
| Reference Packaged Gross Weight | 23 kg/set | Reference Carton Volume | 0.26 m³/set |
| Indicative 20GP Loading | 135 sets at 85% space utilization | Indicative 40HQ Loading | 320 sets at 85% space utilization |
| Conference room | Fixed 450 mm seat height pairs with standard 760 mm meeting tables for attendees and note-taking. | Visitor and guest seating | Tan upholstery and enclosed arms create a formal seating option for executive meeting areas. |
| Reception lounge | The compact sled base suits orderly visitor rows without wheeled movement near reception desks. | Hotel meeting space | Polished metal and wipeable upholstery support frequent turnover in banquet and business-center rooms. |
| Open office touchdown | Suitable for short discussions at collaboration tables where task adjustment is not required. | Recommended Matching Desk Size | 2.4 m executive desk |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 630 × 670 × 940 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 14 kg | |
|---|---|---|
| Recommended user weight | 160 kg per person | |
| Back static load acceptance target | 110 kgf | |
| Seat static load acceptance target | 160 kgf | |
| Front-load stability target | 70 kgf | |
| Cantilever cyclic durability target | 100,000 cycles | |
| Floor glide bearing area | 300 mm2 per glide | |
| Occupant capacity | 1 adult occupant | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery | Tan smooth synthetic leather or coated fabric, visible continuous face on seat, back, and arm rolls; material grade requires BOM confirmation. | |
|---|---|---|
| Seat cushion | Molded polyurethane foam pad with an 80 mm crown thickness, concealed beneath the visible upholstery. | |
| Back cushion | Shaped polyurethane back pad with a 60 mm visible padded thickness over a rigid inner carrier. | |
| Inner support shell | Molded plywood or reinforced polymer seat-back carrier with a 10 mm structural thickness, inferred from the one-piece form. | |
| Arm construction | Continuous upholstered arm bolsters integral with the side shell, padded at a 45 mm thickness. | |
| Cantilever frame | Polished chrome-plated bent steel tube, 25 mm diameter and 1.5 mm wall thickness, forming two continuous side runners. | |
| Frame finish | Mirror polished chrome plating with a 20 micron target plating system, subject to supplier finish specification. | |
| Floor glides | Four replaceable polymer or nylon glides attached at runner ends for hard-floor protection. | |
| Mounting plates | Steel underside mounting plates with welded or bolted frame joints, concealed below the seat. | |
| Seam construction | Tailored perimeter seam with an 8 mm stitch pitch; fine stitching is suggested but not legible in the image. | |
| Color offering | 1 visible tan color; production color count should be verified against supplier finish cards. | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed cantilever movement | The continuous sled frame provides controlled vertical flex with no swivel, gas lift, or recline mechanism. | |
|---|---|---|
| Integrated arm support | Curved side arms provide elbow and forearm support at a fixed 670 mm floor height. | |
| Entry and exit access | Open front sled base allows side and front access without a caster or foot-rest obstruction. | |
| Floor protection | Four end-mounted polymer glides slide on hard floors and reduce direct metal contact. | |
| Stacking capability | Non-stacking fixed frame | |
| Back posture | Tall upright back provides shoulder-blade support for meeting and short-duration guest use. | |
| Seat retention | Concealed steel plate connections secure the upholstered shell to both cantilever side frames. | |
| Cleaning access | Smooth continuous upholstery and open metal base permit wipe cleaning under and around the seat. | |
| Positioning | No wheels or brakes; the chair is repositioned by lifting or sliding on the four glides. | |
| Adjustment locks | No adjustable locks are present, simplifying maintenance in shared conference areas. | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Conference room | Fixed 450 mm seat height pairs with standard 760 mm meeting tables for attendees and note-taking. | |
|---|---|---|
| Visitor and guest seating | Tan upholstery and enclosed arms create a formal seating option for executive meeting areas. | |
| Reception lounge | The compact sled base suits orderly visitor rows without wheeled movement near reception desks. | |
| Hotel meeting space | Polished metal and wipeable upholstery support frequent turnover in banquet and business-center rooms. | |
| Open office touchdown | Suitable for short discussions at collaboration tables where task adjustment is not required. | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 16139:2013 seating strength | Applies to non-domestic visitor and conference seating strength, durability, and safety verification. | |
|---|---|---|
| EN 1022:2018 seating stability | Applies to stability testing of the fixed cantilever chair on level floors. | |
| EN 12520 seating safety requirements | Applies to structural safety and edge requirements for non-domestic seating. |
Standards applicable to China-market projects
| GB/T 10357.2 furniture mechanical test | Applies to seat and back static-load verification of the fixed metal-frame chair. | |
|---|---|---|
| GB/T 10357.3 furniture durability test | Applies to seat and back fatigue testing for repeated visitor-chair use. | |
| GB/T 10357.5 furniture stability test | Applies to forward and sideways stability of the cantilever sled base. | |
| GB 18584 interior furnishing limit | Suggested acceptance basis for formaldehyde and hazardous-substance limits in furniture components. |
This product must meet the following technical requirements: 1. GB/T 10357.2 furniture mechanical test: Applies to seat and back static-load verification of the fixed metal-frame chair.; 2. GB/T 10357.3 furniture durability test: Applies to seat and back fatigue testing for repeated visitor-chair use.; 3. GB/T 10357.5 furniture stability test: Applies to forward and sideways stability of the cantilever sled base.; 4. GB 18584 interior furnishing limit: Suggested acceptance basis for formaldehyde and hazardous-substance limits in furniture components.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
