PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 700 × 1120 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	18 kg
Static vertical base load	700 kg
Seat dynamic durability	120,000 cycles
Backrest tilt durability	100,000 cycles
Gas-lift rated load	150 kg
Caster rolling durability	100,000 cycles
Recommended user height range	190 cm
Seating occupancy	1 person
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Tan leather-grain upholstery with visible edge stitching
Seat foam	90 mm molded polyurethane cushion, target density 45 kg/m3
Back foam	70 mm polyurethane padding, target density 35 kg/m3
Internal seat shell	12 mm molded plywood or engineered composite seat carrier
Back support shell	Molded composite panel with reinforced steel back bracket
Armrest structure	Upholstered integrated arm pads over rigid structural side wings
Seat mechanism	Black powder-coated steel tilt mechanism with steel control plate
Gas lift	Chrome-plated steel telescoping gas lift, Class 4 target
Five-star base	Polished aluminum or chrome-plated steel radial five-star base
Casters	Black nylon or polyurethane twin-wheel casters with steel axles
Fasteners and brackets	Steel mounting brackets, bolts, and tilt-control hardware
Surface finish	Smooth matte tan upholstery with polished metal lower assembly

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 80 mm operating stroke
Swivel function	360-degree swivel around the central gas-lift axis
Tilt function	Synchronized or center-tilt recline with 15-degree maximum rearward angle
Tilt tension control	Rotary tension knob adjusts recline resistance for users up to 150 kg
Locking function	Single-position tilt lock at upright working posture
Mobility	Five 60 mm twin-wheel casters provide rolling movement on hard floors
Arm support	Fixed integrated armrests provide continuous forearm and side support
Back posture support	High 650 mm backrest supports lumbar and lower-shoulder regions
Seat access	Open-front padded seat with 520 mm usable width
Replacement caster compatibility	Stem-mounted casters with 11 x 22 mm industry target fitting
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	750 x 650 x 380 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suitable behind executive or management desks where a high-back tan chair conveys a formal appearance
Private workstation	Fits daily computer and desk work for one user with swivel, rolling, height, and recline functions
Meeting room	Usable at conference or negotiation tables for visitors or senior staff
Home office	Suitable for a dedicated home office requiring executive styling and mobility
Reception or counseling setting	Fits reception offices and advisory rooms where a refined upholstered guest chair is needed
Commercial interiors	Suitable for procurement into offices, studios, and management suites using leather-look seating
Recommended desk pairing	Pair with 760 mm high executive desks for ergonomic arm and thigh clearance
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office seating structural safety	EN 16139:2013+A2:2023 for strength, durability, and stability of non-domestic seating
Office chair wheel performance	EN 12529:2024 for castors for office seating and swivel chairs
Upholstered furniture flammability	EN 1021:2014 cigarette ignition test for upholstered seating composites
Surface and edge safety	EN 16139:2013+A2:2023 requirements for shearing, edges, and mechanism access

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair durability and stability	ANSI/BIFMA X2020for office chair strength, stability, durability, and functional load tests
Caster and base evaluation	ANSI/BIFMA X2020base test, caster test, and rear stability provisions
Adjustable mechanism evaluation	ANSI/BIFMA X2020 gas lift, recline, and cyclic adjustment test sections

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair safety applicability	GB/T 3324 general technical furniture requirements for structural safety and workmanship
Foam and upholstery testing	GB/T 10357 furniture mechanical test methods for strength, durability, and stability checks

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair safety applicability: GB/T 3324 general technical furniture requirements for structural safety and workmanship;
2. Foam and upholstery testing: GB/T 10357 furniture mechanical test methods for strength, durability, and stability checks;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-HB-TAN-5STAR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-HB-TAN-5STAR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-HB-TAN-5STAROpen Export Tool

Quick Actions

Post an RFQ

Product Description

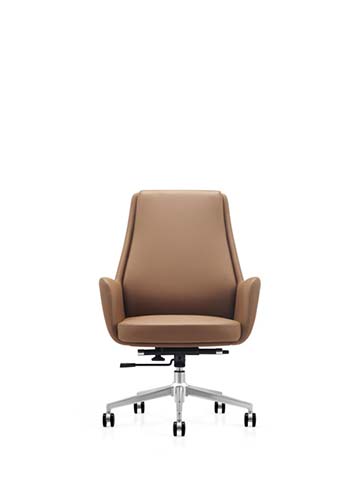

The Tan Upholstered Executive Swivel Chair, model OFC-HB-TAN-5STAR, presents a formal high-back executive profile with a tan leather-grain upholstered seating shell, visible edge stitching, and fixed integrated armrests. Its coordinated arm pads extend from the structural side wings, creating a streamlined, supported silhouette suited to professional settings. The chair sits on a polished aluminum or chrome-plated steel radial five-star base, with black twin-wheel casters and a contrasting black metal tilt mechanism beneath the seat. Overall dimensions are 680 by 700 by 1120 millimeters, with a 540-millimeter clear width between the armrests. Construction centers on a 12-millimeter molded plywood or engineered composite seat carrier and a molded composite back panel fitted with a reinforced steel bracket. The seat uses a 90-millimeter molded polyurethane cushion with a target density of 45 kilograms per cubic meter, while the backrest uses 70 millimeters of polyurethane padding with a target density of 35 kilograms per cubic meter. A 240-millimeter lumbar support zone is integrated into the tall back. The black powder-coated steel tilt mechanism includes a steel control plate, paired with a chrome-plated steel telescoping gas lift targeted at Class 4 specification. Designed for single-user desk work, the chair provides pneumatic seat-height adjustment through an 80-millimeter operating stroke and 360-degree swivel around the central gas-lift axis. The synchronized or center-tilt recline reaches a 15-degree maximum rearward angle, controlled by a rotary tension knob sized for users up to 150 kilograms. A single-position tilt lock secures the chair in an upright working posture. The five 60-millimeter twin-wheel casters support mobility on hard floors, while the fixed armrests provide continuous forearm and side support. The chair is appropriate behind executive or management desks, at private workstations, in conference or negotiation areas, and in dedicated home offices. Its refined tan upholstery also fits reception offices, counseling rooms, studios, and management suites using leather-look seating. Procurement teams should note the unbranded supply position, 18-kilogram net weight, 23-kilogram packaged gross weight, and delivery as one set across two cartons. Assembly time is referenced at 40 minutes per set, and carton planning should use the maximum stated carton dimension set: 850 by 720 by 650 millimeters. Durability references include a 150-kilogram recommended user weight capacity, 700-kilogram static vertical base load, 120,000-cycle seat dynamic durability, 100,000-cycle backrest tilt durability, and 100,000-cycle caster rolling durability.

Tan Upholstered Executive Swivel Chair Specifications
