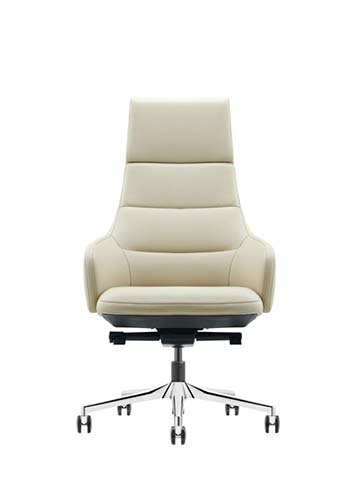

High-Back Upholstered Executive Swivel Chair (model EXEC-HB-CREAM-5STAR-01) is listed under Executive Boss Chair. Dimensions: 700 × 720 × 1250 mm. Materials: Cream-colored smooth upholstered surface, likely leather or polyurethane leather; visible grain and grade require supplier BOM confirmation.. Load capacity: 200 kg. Product Features: cream,upholstery,high-back,design,padded,armrests,five-star,swivel,base,mobile,executive,chair. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | JIULONGYOUSHENG | Model | EXEC-HB-CREAM-5STAR-01 |
| Overall dimensions (W × D × H) | 700 × 720 × 1250 mm | Gas-lift outer tube diameter | 50 mm |
| Finished Seat Cushion Thickness | 90 mm | Backrest Padding Thickness | 70 mm |
| Lumbar Support Zone Height | 240 mm | Clear Width Between Armrests | 540 mm |
| Net weight | 22 kg | Recommended user weight capacity | 160 kg |
| Tilt mechanism static load | 200 kg | Five-star base static load | 1136 kg |
| Caster rolling durability | 100000 cycles | Gas-lift cycle durability | 100000 cycles |
| Seating capacity | 1 person | Foam density | 45 kg/m3 |
| Foam rebound rate | 40% | Gas-lift classification | Class 4 |
| Outer upholstery | Cream-colored smooth upholstered surface, likely leather or polyurethane leather; visible grain and grade require supplier BOM confirmation. | Seat cushion | 100 mm foam core over a load-bearing seat shell, proposed 45 kg/m3 high-resilience foam. |
| Backrest padding | 80 mm segmented foam padding divided by four horizontal channels and side seams. | Integrated armrests | Upholstered padded arms formed as part of the seat and back side wings. |
| Inner support frame | 18 mm plywood or molded composite seat shell with 25 mm steel reinforcement brackets. | Back support frame | 1.5 mm steel back cradle bolted to the tilt mechanism and upholstered back shell. |
| Tilt mechanism | Black powder-coated steel synchro-tilt plate with side adjustment levers. | Gas lift | 50 mm diameter black and polished steel telescopic gas cylinder. |
| Five-star base | Polished chrome-finish steel or aluminum five-star base with radiating legs. | Casters | Five black twin-wheel swivel casters with hard thermoplastic treads and metal mounting stems. |
| Seam construction | Stitched horizontal channel seams with 70 mm seam pitch for segmented back support. | Inner seat shell | 18 mm molded plywood or reinforced composite load-distributing seat board |
| 360-degree swivel | Seat rotates 360 degrees around the central gas lift for full workstation access. | Gas-lift height adjustment | Pneumatic seat-height adjustment with a 100 mm lift stroke controlled by the under-seat lever. |
| Synchro-tilt recline | Back reclines through 18 degrees while the seat tilts in coordinated motion | Tilt lock | Back angle locks in 3 positions, including upright, mid-recline, and full 18-degree recline |
| Tilt tension control | Rear knob adjusts recline resistance for users up to 160 kg | Mobility | Five 60 mm twin-wheel casters provide omnidirectional rolling on hard floors and low-pile carpet |
| Horizontal back support | Four segmented padded channels provide layered lumbar, thoracic, and upper-back contact | Integrated arm support | Fixed padded armrests support forearms at 220 mm above the seat surface |
| Return-to-upright balance | Tilt mechanism returns the back toward upright after lock release under normal body weight | Single-lever seat control | Side lever controls gas-lift height while separate mechanism controls manage tilt lock and tension |
| Swivel clearance radius | 400 mm from center column to chair outer edge | Recline Angle / Lock Reference | 125° with 3suggested lock positions |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Carton Dimensions | 850× 420× 720 mm | Reference Packaged Gross Weight | 23 kg/set |
| Reference Carton Volume | 0.26 m³/set | Indicative 20GP Loading | 135 sets at 85% space utilization |
| Indicative 40HQ Loading | 320 sets at 85% space utilization | Executive office | Suits managers and executives working 4 to 8 hours daily at desks 720 to 760 mm high |
| Private workstation | Pairs with a 1400 to 1800 mm executive desk and monitor setup for individual computer work | Conference room | Provides formal mobile seating for meetings lasting 1 to 3 hours around boardroom tables |
| Meeting and negotiation area | Rolls easily around low meeting tables for face-to-face discussion and quick reconfiguration | Hotel business center | Serves rotating guests at workstations requiring simple height adjustment and easy movement |
| Reception consultation space | Fits behind partner desks or in visitor-side consultation positions requiring executive appearance | Home office | Recommended for users seeking a high-back chair with polished base at a standard 720 to 760 mm desk |
| Recommended Matching Desk Size | 2.4 m executive desk | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 700 × 720 × 1250 mm | |
|---|---|---|
| Gas-lift outer tube diameter | 50 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 22 kg | |
|---|---|---|
| Recommended user weight capacity | 160 kg | |
| Tilt mechanism static load | 200 kg | |
| Five-star base static load | 1136 kg | |
| Caster rolling durability | 100000 cycles | |
| Gas-lift cycle durability | 100000 cycles | |
| Seating capacity | 1 person | |
| Foam density | 45 kg/m3 | |
| Foam rebound rate | 40% | |
| Gas-lift classification | Class 4 |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery | Cream-colored smooth upholstered surface, likely leather or polyurethane leather; visible grain and grade require supplier BOM confirmation. | |
|---|---|---|
| Seat cushion | 100 mm foam core over a load-bearing seat shell, proposed 45 kg/m3 high-resilience foam. | |
| Backrest padding | 80 mm segmented foam padding divided by four horizontal channels and side seams. | |
| Integrated armrests | Upholstered padded arms formed as part of the seat and back side wings. | |
| Inner support frame | 18 mm plywood or molded composite seat shell with 25 mm steel reinforcement brackets. | |
| Back support frame | 1.5 mm steel back cradle bolted to the tilt mechanism and upholstered back shell. | |
| Tilt mechanism | Black powder-coated steel synchro-tilt plate with side adjustment levers. | |
| Gas lift | 50 mm diameter black and polished steel telescopic gas cylinder. | |
| Five-star base | Polished chrome-finish steel or aluminum five-star base with radiating legs. | |
| Casters | Five black twin-wheel swivel casters with hard thermoplastic treads and metal mounting stems. | |
| Seam construction | Stitched horizontal channel seams with 70 mm seam pitch for segmented back support. | |
| Inner seat shell | 18 mm molded plywood or reinforced composite load-distributing seat board |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| 360-degree swivel | Seat rotates 360 degrees around the central gas lift for full workstation access. | |
|---|---|---|
| Gas-lift height adjustment | Pneumatic seat-height adjustment with a 100 mm lift stroke controlled by the under-seat lever. | |
| Synchro-tilt recline | Back reclines through 18 degrees while the seat tilts in coordinated motion | |
| Tilt lock | Back angle locks in 3 positions, including upright, mid-recline, and full 18-degree recline | |
| Tilt tension control | Rear knob adjusts recline resistance for users up to 160 kg | |
| Mobility | Five 60 mm twin-wheel casters provide omnidirectional rolling on hard floors and low-pile carpet | |
| Horizontal back support | Four segmented padded channels provide layered lumbar, thoracic, and upper-back contact | |
| Integrated arm support | Fixed padded armrests support forearms at 220 mm above the seat surface | |
| Return-to-upright balance | Tilt mechanism returns the back toward upright after lock release under normal body weight | |
| Single-lever seat control | Side lever controls gas-lift height while separate mechanism controls manage tilt lock and tension | |
| Swivel clearance radius | 400 mm from center column to chair outer edge | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office | Suits managers and executives working 4 to 8 hours daily at desks 720 to 760 mm high | |
|---|---|---|
| Private workstation | Pairs with a 1400 to 1800 mm executive desk and monitor setup for individual computer work | |
| Conference room | Provides formal mobile seating for meetings lasting 1 to 3 hours around boardroom tables | |
| Meeting and negotiation area | Rolls easily around low meeting tables for face-to-face discussion and quick reconfiguration | |
| Hotel business center | Serves rotating guests at workstations requiring simple height adjustment and easy movement | |
| Reception consultation space | Fits behind partner desks or in visitor-side consultation positions requiring executive appearance | |
| Home office | Recommended for users seeking a high-back chair with polished base at a standard 720 to 760 mm desk | |
| Recommended Matching Desk Size | 2.4 m executive desk |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 Office Chairs | recommend third-party verification for static load, fatigue, swivel, tilt, base, and caster performance; no certification is claimed. | |
|---|---|---|
| ANSI/BIFMA e3-2019 Furniture Sustainability Standard | recommend supplier declaration for materials, emissions, and recyclability if sustainable procurement is required. |
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.
