PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 700 × 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight	150 kg
Net weight	22 kg
Static base load rating	680 kg
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam rebound	45%
Seat abrasion acceptance	50,000 cycles
Caster rolling durability	100,000 cycles
Warranty period	5 years
Color options	1 visible beige color

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Beige upholstered surface over padded cushion; exact leather or PU grade requires supplier BOM confirmation
Back upholstery	Continuous beige upholstered back with horizontal seam and tailored edge piping
Headrest	Padded beige cushion supported independently above the backrest
Seat cushion core	Polyurethane foam, 80 mm maximum padded thickness, 45 kg/m3 procurement density target
Back cushion core	Polyurethane foam pad, 60 mm maximum lumbar-zone thickness, 35 kg/m3 target
Upholstery thickness	1.4 mm
Internal seat shell	12 mm molded plywood or reinforced polymer seat board
Back support frame	20 mm steel or die-cast inner support frame with upholstered outer cover
Armrests	Polished metal loop frame with beige padded upper arm contact surface
Tilt mechanism	Black painted steel multi-position tilt mechanism under the seat
Gas lift	Chrome-plated steel telescopic gas lift, 50 mm outer diameter, Class 4 procurement grade
Five-star base	Polished aluminum or chrome-plated steel radial five-star base, 3 mm section thickness target

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Swivel function	360-degree full rotation around the central gas-lift axis
Seat height adjustment	100 mm vertical gas-lift travel with side-actuated lever
Back tilt movement	15-degree synchronized recline from upright working posture
Tilt lock	1 lock position for upright work plus free-tilt mode
Tilt tension control	Manual tension knob calibrated for users up to 150 kg
Headrest support	Fixed-height padded headrest with curved neck contact surface
Arm support	Fixed loop armrests providing continuous forearm and lateral support
Mobility	Five twin-wheel casters provide omnidirectional rolling on hard office floors
Maintenance access	Top-mounted seat and back assembly separable from gas lift for component replacement
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suitable for directors and managers needing high-back support during 8 hour desk work
Management workstation	Pairs with executive desks of 2000 mm width and carpet or hard-floor flooring
Private meeting room	Provides a formal beige seating option for visitors or conference discussion positions
Home office	Suited to dedicated home workrooms with a minimum 800 mm desk depth and hard flooring
Reception or consultation area	Can be used behind a reception desk or in advisory rooms requiring executive-style comfort
Procurement configuration	Recommended batch option includes hard-floor casters and fabric protection treatment
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair structural safety	EN 1335:2018 applicability: safety, static load, durability, and stability requirements for office chairs
Office chair dimensional basis	EN 1335:2020 applicability: seating dimensions and adjustment-range verification for office users
Office chair test method basis	EN 1335:2009 applicability: laboratory test methods for strength, durability, and stability
Upholstered furniture safety	EN 1021and EN 1021applicability: cigarette and match ignition resistance acceptance if fabric or leather is supplied

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair safety and durability	ANSI/BIFMA X2017applicability: back, seat, arm, base, caster, tilt, and fatigue verification for commercial seating
Low-VOC procurement option	ANSI/BIFMA e3 applicability: multi-attribute chemical, material, and social-impact procurement criteria if declared by supplier

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair safety basis	GB/T 28002applicability: static load, durability, stability, and structural safety verification for office seating
Upholstered furniture basis	GB 28007 applicability: furniture performance and labeling checks for upholstered seating components
Formaldehyde control	GB/T 39600 applicability: formaldehyde emission verification if board components are used in the seat shell

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair safety basis: GB/T 28002applicability: static load, durability, stability, and structural safety verification for office seating;
2. Upholstered furniture basis: GB 28007 applicability: furniture performance and labeling checks for upholstered seating components;
3. Formaldehyde control: GB/T 39600 applicability: formaldehyde emission verification if board components are used in the seat shell;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXHB-HR-BGE-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXHB-HR-BGE-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXHB-HR-BGE-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

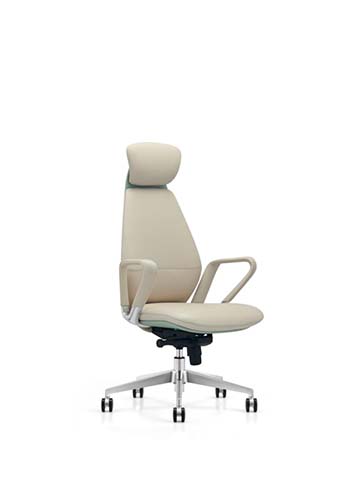

The High-Back Upholstered Executive Swivel Chair with Headrest, model EXHB-HR-BGE-01, offers a formal executive seating solution in a polished beige finish. It is supplied unbranded, making it well suited to projects where a coordinated interior scheme takes priority over visible manufacturer branding. Its visual character is defined by a continuous upholstered backrest, tailored edge piping, a horizontal seam, and a separate padded headrest positioned above the main back. The polished metal loop armrests and five-star base create a refined contrast with the soft beige padding, while the black tilt mechanism and twin-wheel casters complete the commercial office appearance. The chair is proportioned for management settings, with an overall dimension of 680 by 700 by 1280 millimeters, a finished seat cushion thickness of 90 millimeters, backrest padding of 70 millimeters, and a 540-millimeter clear width between armrests. The seating cores use polyurethane foam: the seat target is 45 kilograms per cubic meter, and the back target is 35 kilograms per cubic meter. The internal structure may be supplied with a molded plywood or reinforced polymer seat board, together with a steel or die-cast back support frame, subject to the finalized bill of materials. The beige upholstery surface is 1.4 millimeters thick, but the exact leather or polyurethane grade requires supplier confirmation. Functionally, the chair supports 360-degree swivel movement around the chrome gas-lift axis and provides 100 millimeters of height adjustment through a side lever. The backrest offers a 15-degree synchronized recline, an upright lock position, a free-tilt mode, and a manual tension knob calibrated for users up to 150 kilograms. The fixed loop armrests provide continuous forearm and lateral support, while the fixed-height curved headrest gives neck contact without additional adjustment. This model is appropriate for executive offices, director and manager workstations, private meeting rooms, reception or consultation positions, and dedicated home workrooms. It pairs naturally with executive desks, including 2000-millimeter-wide management desks, and is suitable for carpet or hard-floor environments depending on caster selection. For home use, an 800-millimeter minimum desk depth is noted. Procurement teams should confirm upholstery grade, internal material specification, and caster type before ordering. The recommended batch configuration includes hard-floor casters and fabric protection treatment. Each set ships in two cartons, with a packaged gross weight of 23 kilograms and a reference assembly time of 40 minutes.

High-Back Upholstered Executive Swivel Chair with Headrest Specifications
